Most professional and precision upvc door window making machine

Features

1.1  This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,window-door and curtain wall industry,it is also suitable for processing milling,chamfering and other procedure.

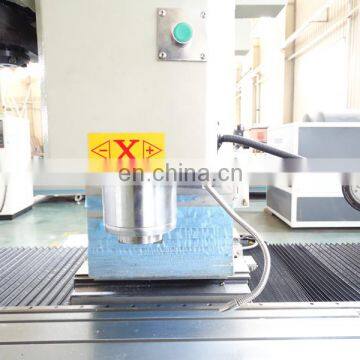

1.2  Adopting high-power closed loop spindle servo motor,it was directly connected with the Taiwan high-precision mechanical spindle

1.3  Using the latest Taiwan 10.4 inch display screen,21 MA SYNTEC servo control system.After power outages,it can continue processing when have electric power .This machine have professional CAM processing software.

1.4  U-sing the disc type blades storage,16 blades capacity,only need 3 seconds for changing blade,greatly improved the efficiency of changing blades.

1.5  Adopting famous high-precision ball screw,rail and rack.

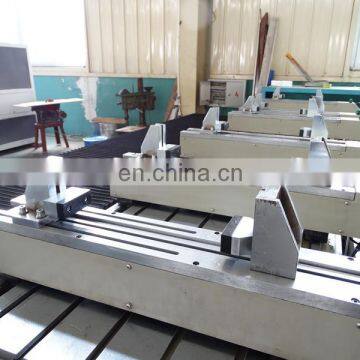

1.6  Double position design,putting on and taking down profile separately without stop,have much higher processing efficiency.

1.7  Centralization lubrication adopt intermittent supply system,blades adopt system control spray pump cooling device.

1.8  Equipped automatic memory on blades device system.

1.9  The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.

2.0  The main components adopt steel

 Applications Field

    This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling , chamfering, engraving plane surface and other procedure.

    Suggestion:  We can produce products according client needs,such as:size, outside view, configuration etc.

Technical Parameters

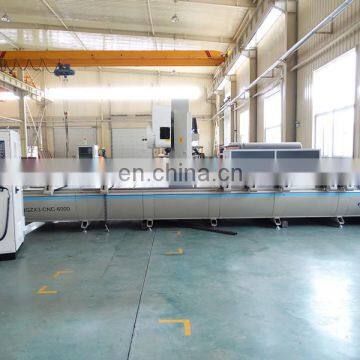

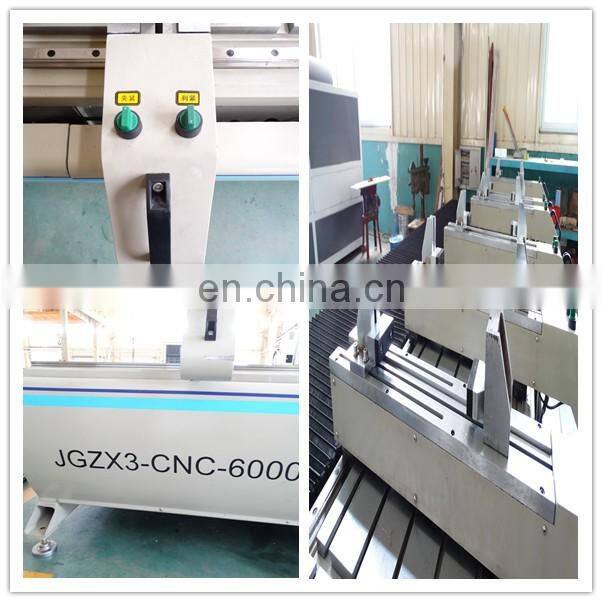

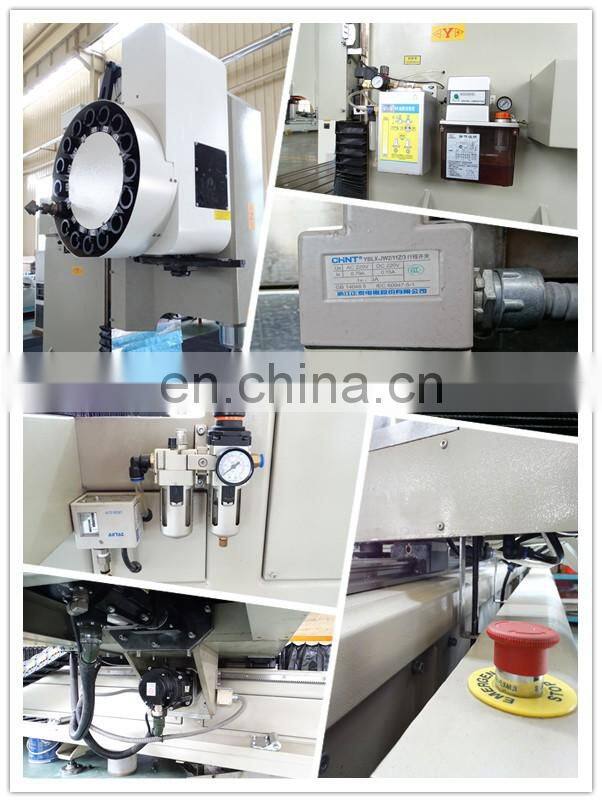

 Detailed Images of 3 Axis CNC Processing Center for Aluminum Profile

1. Adopts HIWIN linear guide  from Taiwan------high precision and long life

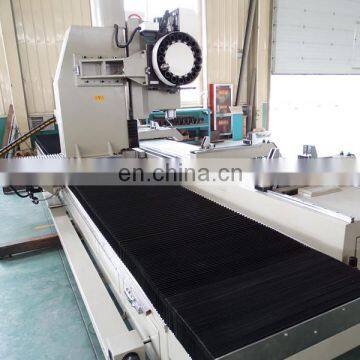

 2. Tools magazine ------ 16 sets tools, only need 3 seconds for changing cutter

3. SYNTEC control system------It is from Taiwan with high performance and competitive price.

4. YASKAVA  servo motor and drives----They are from Japan with high precision and long life.

5. Schneider electrical components - ----original brand from France.

8. other detail parts
