Factory Cnc Router Machine With Double Working Position and Wood Working Industry
- Qingdao
- T/T Credit Card
You May Like
-
Cheap Price Cnc Router 1325 Woodworking Machinery for Furniture,cnc Cutter for Wood
-
Wood Craft Laser Engraving Cutting Machine/CNC Router 1325/double Head Cnc Router/laser Engraving Machine Wood
-
Most Professional and Precision Upvc Door Window Making Machine
-
Aluminium Accessories for Window and Door China CNC Machine
-
Automatic Water Slot Milling Machine Used Pvc Window Manufacturing Machine
-
Wood Router Lathe/CNC Router 1325/double Head Cnc Router/cnc Router Wood Carving Cnc Turning
Product Details
| Brand Name | MMCNC | Place of Origin | Shandong, China | |
| Model Number | MM1325-2 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 12 months | |
| Weight | 1200kg | Dimension(L*W*H) | 7600*1900*2400 | |
| Voltage | 220/380V | Condition | New | |
| Power(W) | 15KW or so | CNC or Not | CNC |
Strong Plywood Case
Product Description

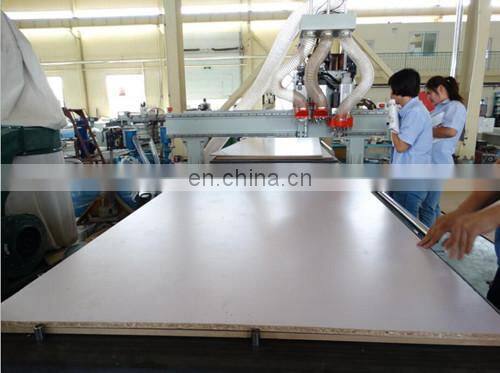

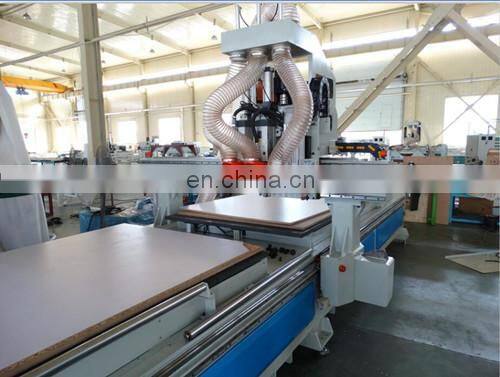

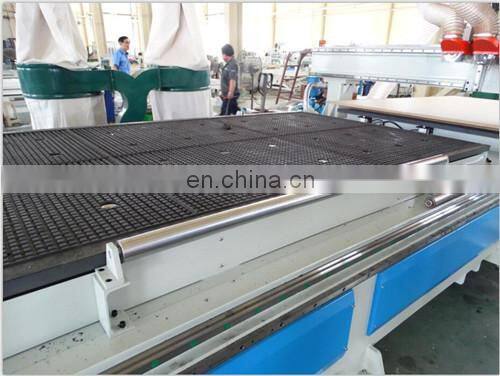

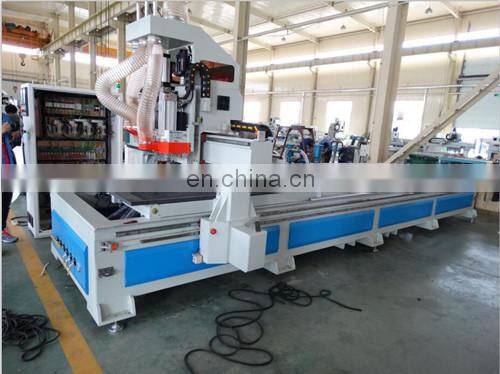

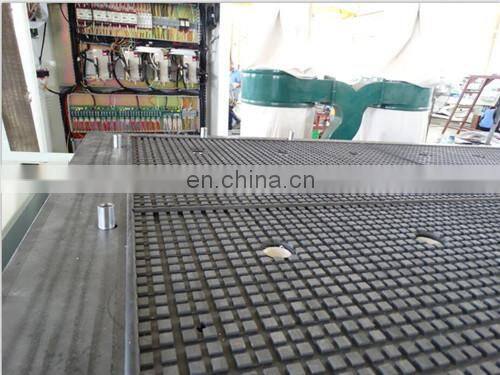

Double-working Table CNC Router for wood board
for cabinet industry
The main configurations
1. Italy HSD spindle ----original famoue brand from Italy with high quality.
2.SYNTEC control system------it is from Taiwan with high performance and competitive price
3.YASKAVA servo motor and drives----they are from Japan with high precision and long life
4.HIWIN linear guide ------ made from Taiwan,used for linear reciprocating stadium
5TBI Ball screw from Taiwan------high precision and long life
6.Working area ------ 1300*2500*200mm
7.Schneider electrical components - ----original brand from France
8.Japanese Omron Switch ------ with long life
10.SHIMPO Reudcer from Japan ------ more powerful and higher precision
Applicatian
1.Window door and curtain wall industry: aluminum profile processing.
2. Furniture industries: cabinet doors, wooden doors, solid woods, antique furniture.
3. Decoration industries: screens, wave boards, advertising boards and sign making.
4. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.
5. Processing material: engraving, milling and cutting processing for acrylic,PVC, artificial stonesplastics and soft metal sheets suv.
Suggestion: We can produce products according client needs,such as:size, outside view, configuration etc.
Parameters
NO | Description | Parameter |
1 | X,Y,Z, Working Area | 1300x2500x200mm |
2 | Table Size | 1300x2500mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.03mm/300mm |
5 | Frame | Heavy Steel Tube Structure |
6 | X, Y Structure | Rack and Pinion Drive,Hiwin Rail Linear Bearings |
7 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
8 | Max. Power Consumption | (Without Spindle)About 15Kw |
9 | Max. Rapid Travel Rate | X 40000mm/min; Y 40000mm/min; Z 6000mm/min |
11 | Spindle Power | Italy HSD Spindle |
12 | Spindle Speed | 0-24000RPM |
13 | Drive Motors | YASKAVA Servo motors |
14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
15 | Command Language | G Code |
16 | Operating System | SYNTEC Control System |
17 | Computer Interface | USB / Ethernet |
18 | Flash Memory | 512M |
19 | Collet | ER32 |
20 | X,Y Resolution | <0.03mm |
21 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
22 | Running Environment Temperature | 0 - 45 Centigrade |
23 | Relative Humidity | 30% - 75% |

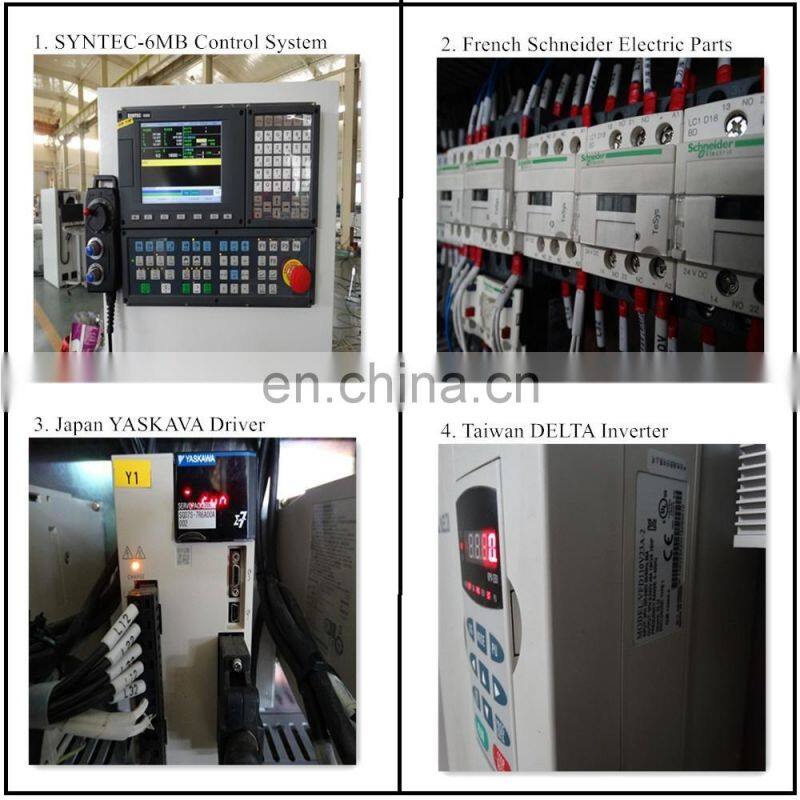

Detailed Images
1.SYNTEC control system------it is from Taiwan with high performance and competitive price
2.Schneider electrical components - ----original brand from France
3.Japan YASKAVA Driver and French SCHNEIDER Electric components
4. Taiwan Delta VFD-B inverter
Q1: How can I get suitable machine?
A: First:: Please tell us what's your max working area (L*W*H),
Second: Please tell us what material will be engraved or cutted?
Third: Pls tell us what kind of product do you want to get after engraved? Flat or 3D?
Those three answers will help us choice suitable CNC Router for you.
Q2: What is your warranty?
A: We guarantee the quality of machine within 12 months. But for main spindle, it is 6 months. After one year, if you need to change parts. We will kindly provide you the best price.
Q3: What is your delivery time?
A: It depends on what kind CNC Router you order? For 4 axis and 5 axis CNC Router, it need 30 working days. But for common CNC Router, our production time is 15 working days.
Q4: Do you have operation Manual for machine?
A: Surely we have, there have how to intall and operation machine, how to maintain machine and what place need to be notice during using our machine. We will sent CNC Router manual to you with our CNC Router machine.
Q5: If I am a newer for CNC Router, How can I operate this machine.
A: First we have detailed operation manual for CNC Router, but if you are the newer, we suggest dispatch our engineer to install and training you in your place, Or you can make a visit to our factory, then we will arrange our technical to teach you step by step.
Warranty :
#we have sincere raw material suppliers, all of our raw material are original, not copy.
# Every cnc router machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
# Main parts of cnc router (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
1. Technical supports and suggestions before you order a machine according to your work piece.
2. Professional instruction for the operation of the machine.
3. One year warranty, we will provide the consumable parts at cost price after the warranty period.
4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications.
5. 24-hour technical support by email or calling.
Jack Wang
WhatsApp: +86-18754179908
Address: Pingan North Road, Changqing District, Jinan, China
For more information of the cnc machne, you can vist our website, or contact me directly.
We will send you more pictures and videos of the cnc machine via E-mail or Skype.
Any questions, please feel free to contact us, it is our pleasure to help you.

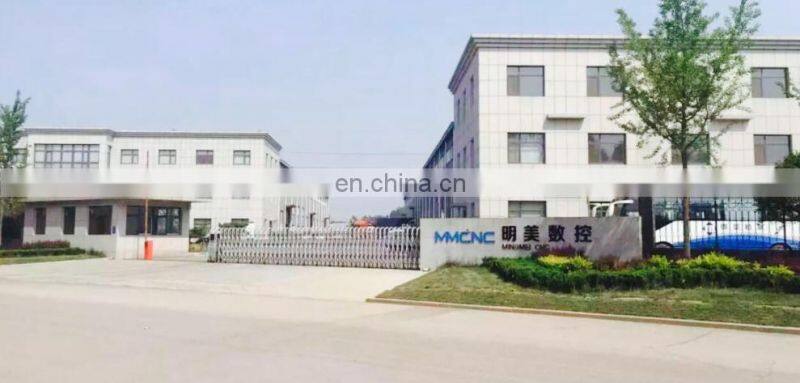

Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
