Help CenterSmall Cutting Machine/double Head Cutting Saw for Aluminum Profile Window&door
Related Products
-
3 Axis Aluminium Profile Cnc Miling Machine for Sale in Russian FederationUS$ 10,300 - 15,800MOQ: 1 Set -
France Curtain Wall Aluminum Machine Mur Rideau en Aluminium MachineUS$ 8,900 - 46,900MOQ: 1 Set
-
Philippines 3 Axis Aluminum Curtain Wall Cnc Machine CenterUS$ 8,900 - 46,900MOQ: 1 Set
-
Shandong Mingmei Aluminium Profile 3 Axis 4 Axis CNC Machining CentreUS$ 8,900 - 46,900MOQ: 1 Set
-
4 Axis Aluminum Curtain Wall Profile CNC Gantry Milling MachineUS$ 41,000 - 91,000MOQ: 1 Set
1.Eequipment Features
1.1 The machine is the most advanced doubile-head cutting saw equipment for Aluminnum Window & Door.
1.2 The control system adopts the new closed-loop system. 1.3 The servmotor drives the speed reducer to adjust angle in 45°~157.5° 1.4 Several profile processing dimensions can be input one time and make continuous cutting.
1.5 The imported high precision blade makes the cutting surface more smooth
1.6 The processing dimension can be changed without returning the reference point
1.7 The airproof device under the workable has wonderful crumbs-clearing effect
1.8 The following saw cover keeps it working in the clean environment
1.9 The profile is clamped by two cylinders in every head,and kept the cutting security
2 Technical Parameter
2.1 Input power :6.5kw
2.2 Power supply 380V50/Hz
2.3 Working pressure : 0.6-0.8MPa
2.4 Motor rotary speed :2800r/min
2.5 Saw Blade specification :φ500xφ30
2.6 Cutting angle:45°-157.5°
2.7 Cutting length:760-6000mm
2.8 Cutting width x height:120x230
2.9 Overall dimension :7800x1800x1530
3.0 Weight:2500 k
We can produce machine according to client need.
Input Power | 6.5kw |
Power Supply | 380V/50Hz |
Working Pressure | 0.6-0.8 MPa |
Rpm | 2800r/min |
Size of Saw Blade | φ500xφ30 |
Cutting Angle | 45°-157.5° |
Cutting Length | 760-6000mm |
Cutting Width * Height | 120*230 |
Dimension | 7800*1800*1530 |
Weight | 2500kg or so |

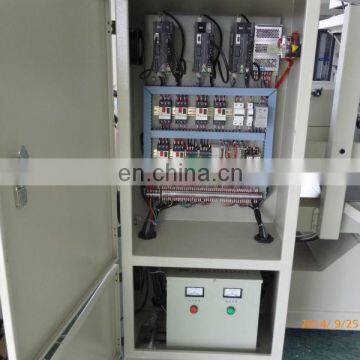

Motor-Taiwan Delta Touch Screen-Taiwan Delta

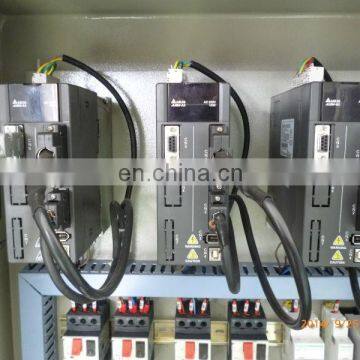

Control system AC Servo-Taiwan Delta

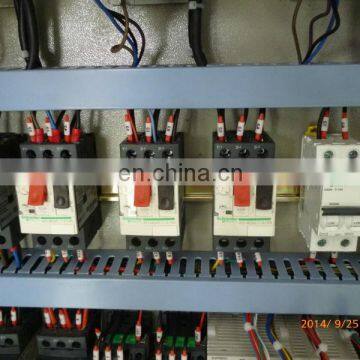

AC Contactor and Breaker-Schneider
Company Video Link:
/watch?v=1wRpvbwDv2o
company
Certifications
222
We Will Provide You The Professional Services
Do not hesitate to contact with me.
Jack Wang
Tel: +86-18754179908
Address: Pingan North Road, Changqing District, Jinan, China
For more information of the cnc machne, you can vist our website, or contact me directly.
We will send you more pictures and videos of the cnc machine via E-mail or Skype.
Any questions, please feel free to contact us, it is our pleasure to help you.
