V-shape 45° Cutting Machine
Features
1 Used for 45° cutting of aluminum alloy doors and windows profiles,solar energy plate border, real wood material(wood-clad aluminum doors and windows).
2 Applicable for short material processing(shortest material length:150mm).
3 Digital display magnetic scale;high precision.
4 Feeding guide rail adopts linear slider,guide rail(square guide rail),stable movement, low noise, high accuracy.

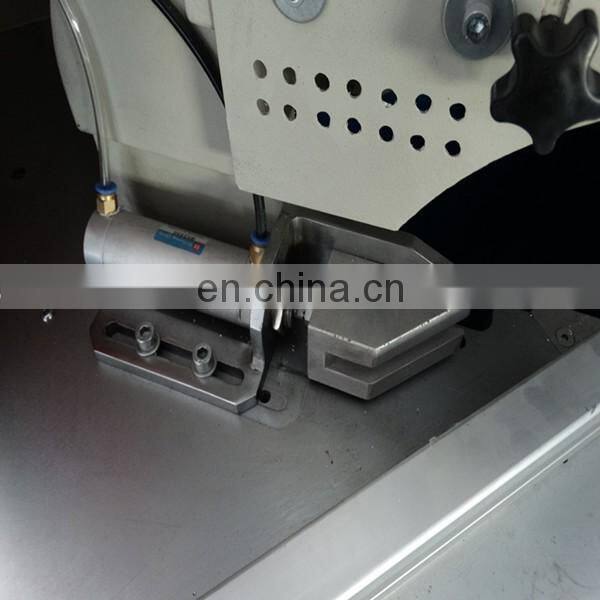

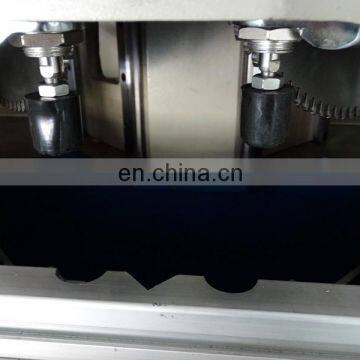

5 Profile clamping way separately adopts vertical clamping and horizontal clamping; two position can be used independently and simultaneously.
6 This machine can adjust saw blade traveling distance according to height of profiles; high precision
Applications Field
Used for 45°cutting of aluminum alloy doors and windows profiles,solar energy plate border,real wood material(wood-clad aluminum doors and windows).
Suggestion: We can produce products according client needs,such as:size, outside view, configuration etc.
Technical Parameters
Input Power | 2 x 2.2kw |
Power Supply | 380V/50Hz |
Air Pressure | 0.6-0.8MPa |
Rpm | 2800r/min |
Saw blade specification | Φ400 x Φ30 |
Cutting angle | 45° |
Cutting length min | 150mm |
Overall dimension | 940 x 1020 x 1740mm |
Weight about | 400kg |

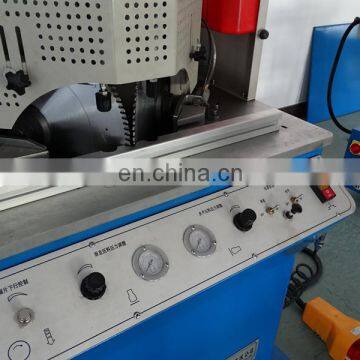

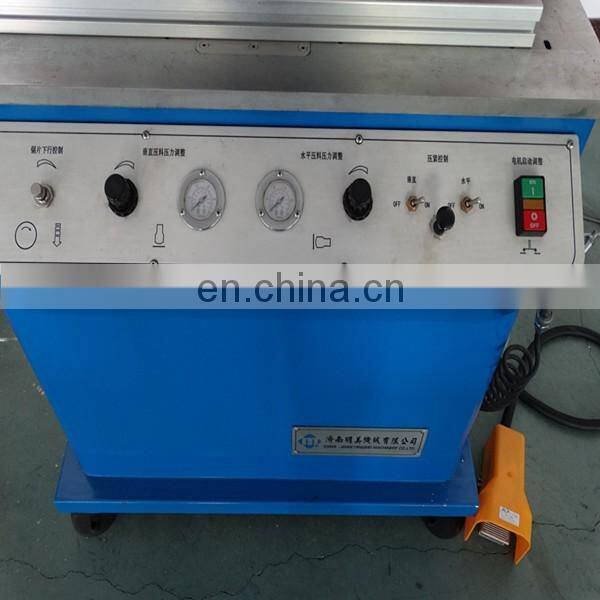

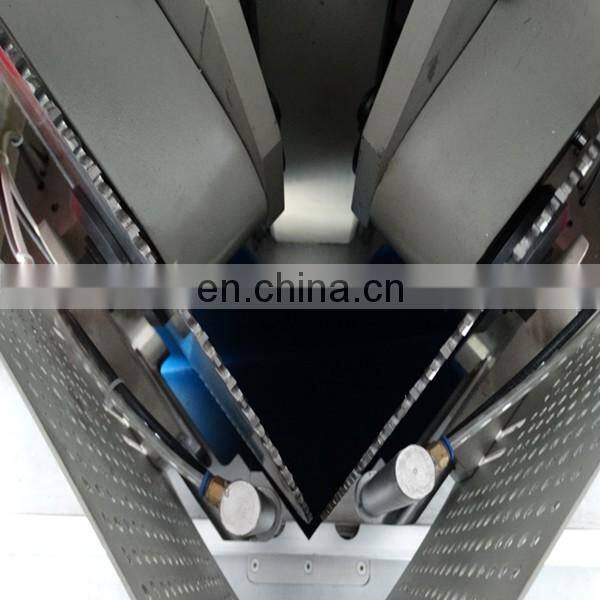

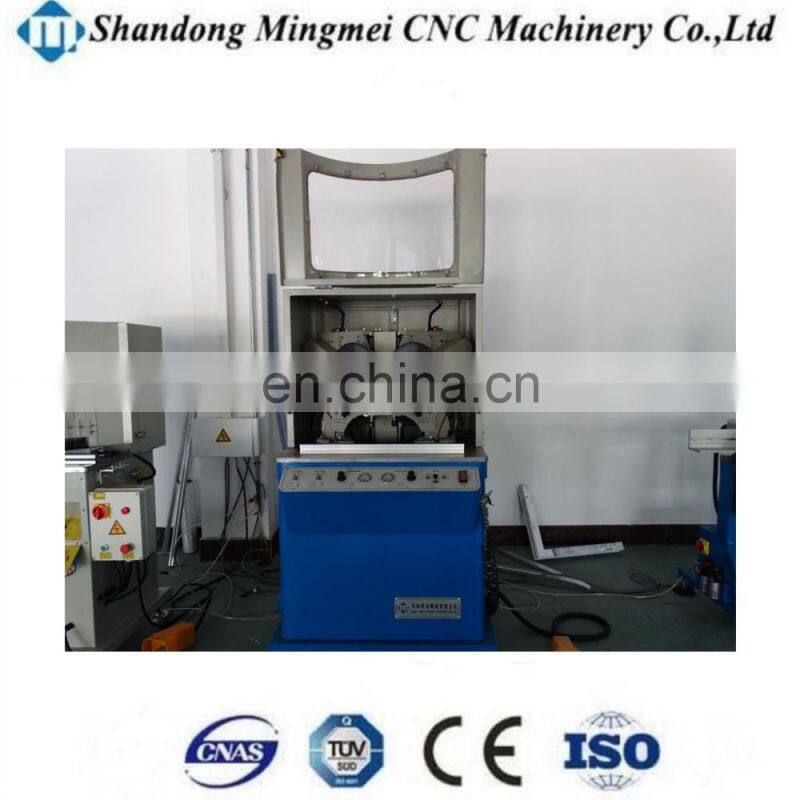

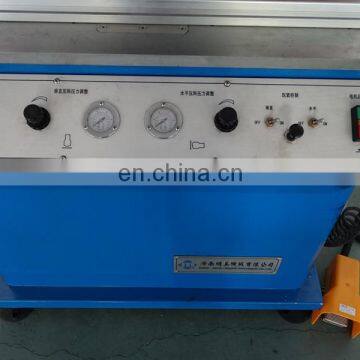

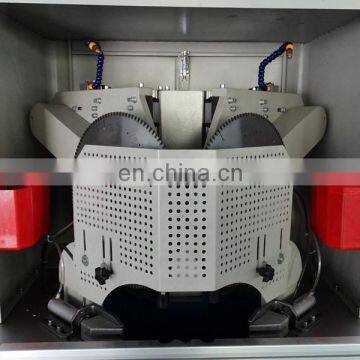

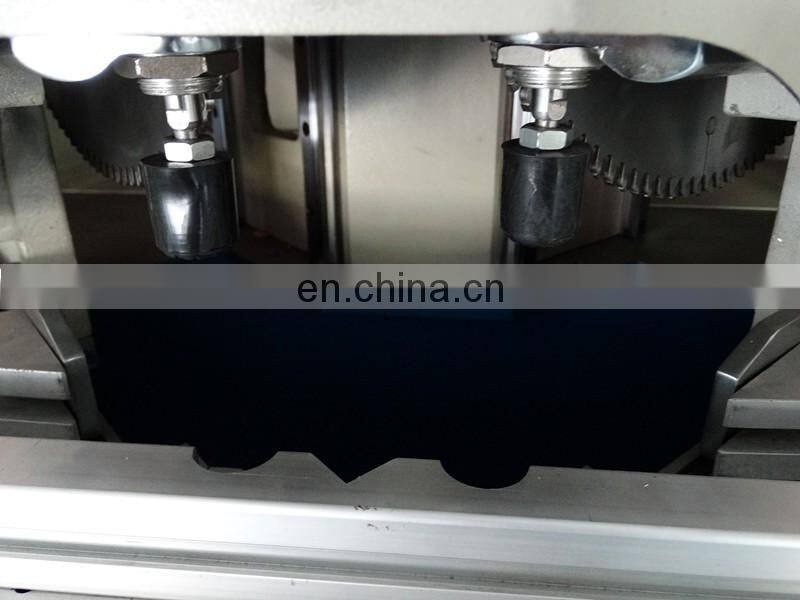

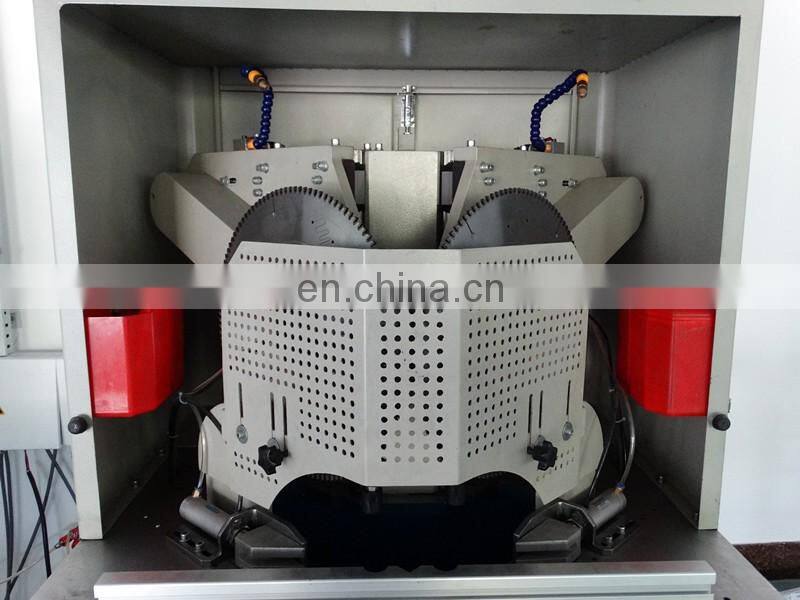

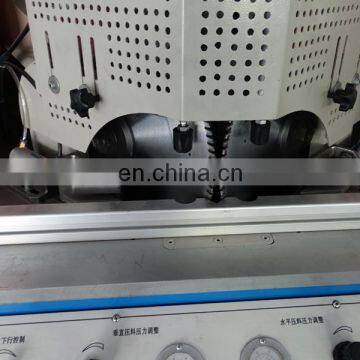

Detailed Images of V-shape 45° Cutting Machine
1. Technical supports and suggestions before you order a machine according to your work piece.
2. Professional instruction for the operation of the machine.
3. One year warranty, we will provide the consumable parts at cost price after the warranty period.
4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications.
5. 24-hour technical support by email or calling.
