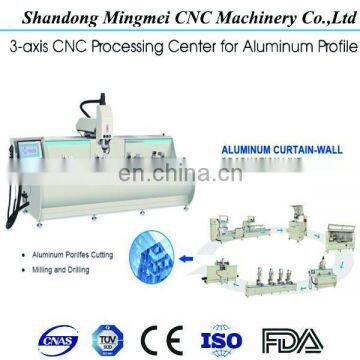

3 axis cnc machine center for aluminum profile curtain wall

Name: 3 axis cnc machine center for aluminum profile curtain wall
Brand: MMCNC
Price: USD $60,000 - 75,000 / Set

FOB Price

USD $60,000 - $75,000 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port Qingdao China
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

MMCNC

Model Number:

LCJG3-CNC-6000/LCJG3+1-CNC-3000

Packaging Details

Plastic file firstly then put into wood case

Product Description

Window Curtain Wall Holes Making Machine,

Aluminum Profile 3 axis CNC Processing Center

Product Application

This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,window-door and curtain wall industry,it is also suitable for processing milling,chamfering,engraving plane surface and other procedure.

LCJG3-CNC-6000

1.This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,

window-door and curtain wall industry,it is also suitable for processing milling,chamfering,

engraving plane surface and other procedure.

2.Main spindle adopt air-cooling electric main axis from Italy,have the function of high precision,high safety and high reliable.

3.Adopt Taiwan SYNTEC CNC control system.Have professional CAD-CAM programming software.It can transform processing code automatically,have the function of easy operation,high efficiency and lower labor intensity.

4.Imported guide rail,sliding block,X axis adopt high precision oblique gear and rack driving.Y and Z axis adopts high precision ball screw drive.The drive is stable,so can improve the precision of whole machine.

5. Inside blades storage can hold 6 sets blades,the handle is approved ISO 30 standards,it is very safety and reliable.

6.Adopt manual pump oil supply system,blades adopt system control system control spray cooling device.

7.The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.
8.The main components adopts steel structure and they are all through aging treatment.

LCJG3+1-CNC-3000

1.This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,

window-door and curtain wall industry,it is also suitable for processing milling,chamfering,

engraving plane surface and other procedure.

2.Main spindle adopt air-cooling electric main axis from 9KW power,0-24000/min,have the function of high precision,high safety and high reliable.
3.Adopt Taiwan SYNTEC CNC control system.Have professional CAD-CAM programming software.It can transform processing code automatically,have the function of easy operation,high efficiency and lower labor intensity.

5. The worktable can overturn 180° -90° 0° 90° Clamping one time profile can realize three faces processing,when processing deeply hole(hetero type hole), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.
6.Adopt manual pump oil supply system,blades adopt system control system control spray cooling device.

7.The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.
8.The main components adopts steel structure and they are all through aging treatment.

3 Axis CNC Processing Center for Aluminum Profile
LCJG3-CNC-6000	1	Power supply	380V 50Hz
	2	Air pressure	0.5~0.8MPa
	3	Total power	12kw
	4	Max rotary speed	24000/min
	5	X-axis speed	6000mm
	6	Y-axis speed	500mm
	7	Z-axis speed	350mm
	8	Y and Z axis speed	1500mm/min
	9	Overall dimension	7100 x 1600 x 2200mm
	10	Weight	2360kg

3+1 Axis CNC Processing Center for Aluminum Profile
LCJG3+1-CNC-3000	1	Power supply	380V/50Hz
	2	Air pressure	0.5~0.8MPa
	3	Total power	12kw
	4	Main axis power	S6:9Kw S1:7.5Kw
	5	Max rotary speed	18000/min
	6	X-axis speed	3000mm
	7	Y-axis speed	500mm
	8	Z-axis speed	350mm
	9	X axis speed	50000mm/min
	10	Y and Z axis speed	15000mm/min
	11	Overall dimension	4180x1600x2200mm
	12	Weight	1400kg

Export to USA, grey and orange color details:

Certifications

Dont hesitate

Our Service

-Pre-Sales Service
1.Inquiry and consulting support.
2.Design drawing as per your demands for your confirmation
3.View our factory

-After-Sales Service
1.One year warranty, the machine with main parts

(excluding the consumables) shall be changed
free of charge if there is any problem during the warranty period.
2.Maintenance free of charge during lifespan. 3.Free training course at our plant. 4.We will provide the consumable parts at an

agency price when you need replacement.

Packing & Delivery

Packaging
Size	7100X1600X2200mm
Weight	2360KG
Packaging Details	Packaging:These machines willbe packed with Plastic Film and standard export case, to make sure customer will receive the machines they ordered Intact.

Packaging
Size	4180X1600X2200mm
Weight	1400KG
Packaging Details	Shipping:Shipping by 20GP,40GP,40HQ Container... According to Customers location and the vehicle size,we will provide professional packaging can save sea freight for cutomers.
