Aluminum&PVC window door
cnc drilling milling machine
1. Feature
1.1 Applicable for drilling holes, milling grooves, processing circular holes and special-shaped
holes, plane engraving of aluminum alloy profiles.
1.2 System adopts Taiwan Syntec CNC controller.
1.3 Adopting electric spindle; high precision, high safety and reliability
1.4 X axis adopts high-precision helical gear and rack; Y and Z axis adopt high-precision ball screw transmission; steady transmission and high precision.
1.5 By using programming software to automatically transform and process G code; easy
operation; high efficiency and low labor intensity.
1.6 Workbench can turn 180°, -90°~0 °~+90°; It can realize three-sides processing by clamping one time; it can process deep and special-shaped holes through workbench; high efficiency and precision.
2. Specification
Parameter |
|
Air Pressure | 0.5~0.6MPa |
X/Y/Z Axis stroke | 1200mm*300mm*280mm |
Input Voltage | 380V 50Hz or As Customer need |
Input Power | 3Kw |
Handle type | ER25*Φ8 |
Processing range | 100*140 |
Overall size | 2200×1500×19500mm |
Weight | 700kg |
Main accessory |
|
Control system | Taiwan Syntec |
Solenoid valve | Germany FESTO |
Cylinder | PC(FESTO Joint Venture Brand) |
Motor | Anhui Sanyang (Best Chinese Motor Brand) |
Air Filter Device | STNC |
Electrical Button and Switcher | Schneider |
AC Contactor and Circuit Breaker | Schneider |
Approach Switch | Taiwan Delta |
Guide rail | Taiwan Hiwin |
Standard accessory |
|
Cutters | 4pcs |
Air Gun | 1pc |
Complete tooling | 1set |
Certificate | 1pc |
Operation Manual | 1pc |

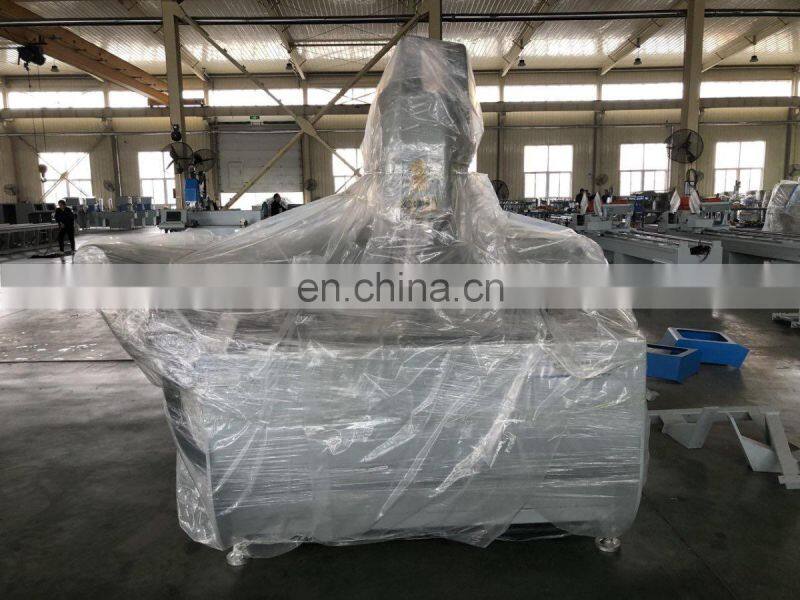

3. Detailed Photo
1)One year warranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2) Maintenance free of charge during lifespan.
3)Free training course at our plant.
4).We will provide the consumable parts at an agency price when you need replacement.
Shandong Mingmei CNC Machinery Co., Ltd. was founded in 1995, located in Jinan economic dev. Zone. Company cover an area of 70000 square meters and 200 staffs.
As leading manufacturer of industrial aluminum equipment which is a modern private enterprise specialized in technology development, machinery manufacture and machine sales. MMCNC
machine include Processing machine for making aluminum PVC window and door as well as
curtain wall, such as Double-head Cutting Saw; Corner Crimping Machine; End miller;
Copy Router; PVC Welding Machine; Corner Cleaning Machine; we also produce CNC Router etc. We have advanced machining centers, large planer, horizontal boring machine and other
specialized machine equipment, realize the specialized and scale model manufacturer.
