4 axis Aluminum Profile overturning platform processing center JGZXF4-CNC-4000

1.Features

1.1  This machine is designed for processing round holes, slot, keyhole, shaped-hole(rigidity tapping option) ect on aluminum profile ,window door and curtain wall industry, it is suitable for drilling , chamfering , engraving plane surface and other procedures on aluminum profile with arbitrary angle from -90°to +90°.

1.2  It is provided with automatic chip removal function.

1.3  Main spindle adopt air-cooling electric main axis from Italy, total power is 9.6kw, and rotary speed is 0~24000r/min, high precision, high safety, high reliability.

1.4  Adopt Chinese Higerman CNC control system.Have professional CAD-CAM programming software.It can transfer processing G code automatically, have function of easy operation, high efficiency and lower labor intensity.

1.5  Imported guide rail, sliding block, x axis adopt high precision oblique gear and rack driving.Y and Z axis adopt high precision ball crew drive.The drive is stable, so can improve the precision of whole machine.

1.6  Inside blades storage can hold 6 sets blades, the handle is approved ISO 30 standard, it is very safety and reliable.

1.7  The worktable can overturn 180°, -90°,0°,+90°.CNC system control servo motor to realize the worktable overturn from -90°to +90°in arbitrary angle.Clamping one time profile can realize deeply hole (hetero type hole), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.

1.8   Adopt automatic pump oil supply system,blades adopt system control spray cooling device.

1.9   The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand

1.10.  The main components adopts steel structure and they are all through aging treatment.

2.Technical Parameter

2.1  Power supply:380v,50Hz

2.2  Air pressure:0.5~0.8MPa

2.3 Total power 13.5kw

2.4 Main axis power:9kw

2.5 Max rotary speed: 24000r/min

2.6 X-axis travel:4000mm

      Y-axis travel: 640mm

      Z-axis travel:440mm

2.7 X-axis speed:50000mm/min, Y-axis Z-axis speed:15000mm/min

2.8 Overall dimension(length X width X height): 5630 X 2780 X 2500 mm

2.9 Weight: 2600kg

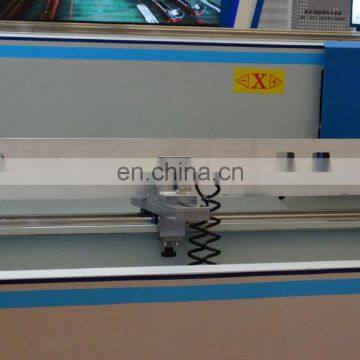

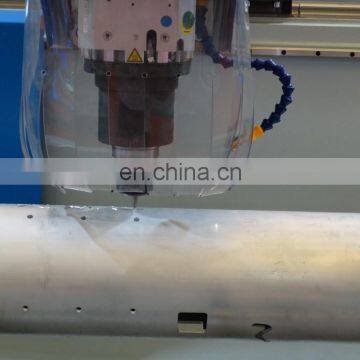

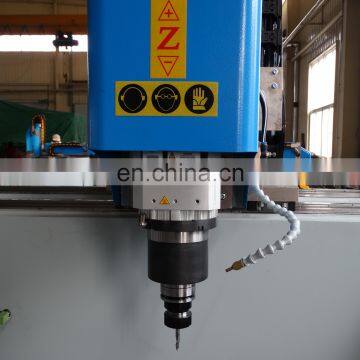

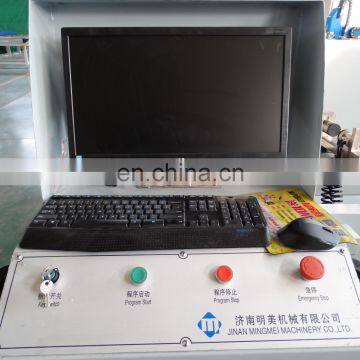

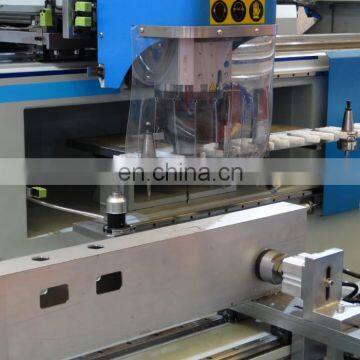

3.Detailed Photos

 4. Drilling milling samples on aluminum profile:
