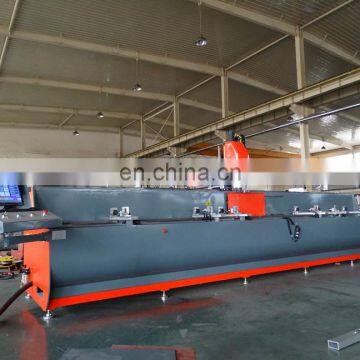

CNC Fully Automatic Milling Drilling Aluminum Profile Machining Center

Iron frame or plywood box

Aluminium Profile 3 Axis LCJG3-CNC-6000 Aluminum Curtain Wall/Facade CNC Drilling Milling Machining Center with ATC,Italy Spindle,Japan Yaskawa servo motors&drivers

 auminium profile machining center

 Feature :

1. This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling, chamfering,engraving  plane surface and other procedure.

2. Main spindle adopt air cooling electric main axis, 3 KW power, 0~18000/min, have the function of high precision, high safety and high reliable.

3. Adopt Taiwan SYNTEC CNC control system. Have professional CAD-CAM programming software. It can transform processing G code automatically, have the  function of easy operation, high efficiency and lower labor intensity.

4. Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the  precision of whole machine.

5. The worktable can overturn 180°.-90°~0°~+90°,Clamping one time profile can realize three faces processing, When processing deeply hole (hetero type hole ), it can realize deeply  hole  processing through overturn worktable, so can highly improve processing efficiency.

6. Adopt manual pump oil supply system, blades adopt system control spray cooling device.

7. The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.

8. The main components adopt steel structure and they are all through aging treatment.

Aluminum Profile CNC Milling Samples:

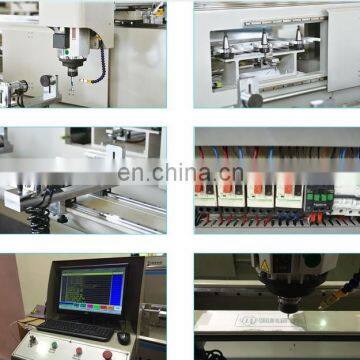

Detailed Photos:

Shandong Mingmei CNC Machinery Co., Ltd. Was founded in 1995, located in Jinan economic dev. Zone. Company cover an area of 70000 square meters and 208 staffs.

As leading manufacturer of industrial aluminum equipment which is a modern private enterprise specialized in technology development,machinery manufacture and product sales.

Main products include aluminum doors and windows, aluminum curtain wall, aluminum window, UPVC window. We have advanced machining centers, large planer, horizontal boring machine and other specialized machining equipments and realize the specialized and scale model manufacturer.

 Pre-Sales Service :

        * Inquiry and consulting support.

        * Sample testing support.

        * Design drawing of the factory workshop

        * View our Factory.

 After-Sales Service :

        * One year warranty time, we can repair and replace parts for free in one year.

        * Free training course at our factory with professional engineers.

        * Technical support in 24 hours online, TM, Skype, E-mail  solving the relative questions in time.

        * Engineers available to service machinery overseas.

        * We provide the consumable parts at agent price when you need replacement

        With us your money in safe,your business in safe!
