Curtain Wall 5 Meters Cnc Milling Drilling Machine for Aluminium Profile
US$ 21,000 - 22,500
MOQ: 1 Set
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Aluminum Windows Drilling Machine Made in ChinaUS$ 21,000 - 22,500MOQ: 1 Set -
Aluminium Profile Lock-Hole Making Curtain Wall CNC Drilling Milling MachineUS$ 21,000 - 22,500MOQ: 1 Set
-
High Precision 3 Meter Aluminium Profile CNC Drilling Milling MachineUS$ 21,000 - 22,500MOQ: 1 Set
-
High Precision Extrusion Aluminum Profile Cnc Milling MachineUS$ 21,000 - 22,500MOQ: 1 Set
-
Aluminum Profile 3+1 Axis CNC Drilling and Milling Machine PriceUS$ 21,000 - 22,500MOQ: 1 Set
Brand Name
MMCNC
Aluminum Profile Window Door
Curtain Wall Facade CNC Drilling Machine
1. Feature
SKX3+1-CNC-3000 Aluminum Profile 3+1 Axis CNC Drilling Milling Machine
1.1 This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,window-door and curtain wall industry, it is also suitable for processing milling,chamfering, engraving plane surface and other procedure.
1.2 Main spindle adopt air-cooling electric main axis,3KW power,0-18000/min,have the function of high precision,high safety and high reliable.
1.3 Adopt Taiwan SYNTEC CNC control system. Have professional CAD-CAM programming software. It can transform processing G code automatically, have the function of easy operation,high efficiency and lower labor intensity.
1.4 Imported guide rail,sliding block,X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine.
1.5 The worktable can overturn 180°,-90°~0°~+90°.Clamping one time profile can realize three faces processing, when processing deeply hole(hetero type hole), it can realize deeply hole processing through overturn worktable,so can highly improve processing efficiency.
1.6 Adopt manual pump oil supply system,blades adopt system control spray cooling device.
1.7 The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.
1.8 The main components adopt steel structure and they are all though aging treatment.
1.4 Imported guide rail,sliding block,X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine.
1.5 The worktable can overturn 180°,-90°~0°~+90°.Clamping one time profile can realize three faces processing, when processing deeply hole(hetero type hole), it can realize deeply hole processing through overturn worktable,so can highly improve processing efficiency.
1.6 Adopt manual pump oil supply system,blades adopt system control spray cooling device.
1.7 The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.
1.8 The main components adopt steel structure and they are all though aging treatment.
2.Technical Parameter
Aluminum Profile 3+1 Axis CNC Drilling Milling Machine | |||
SKX3+1-CNC-3000 | 1 | Power supply | 380V/50Hz |
2 | Air pressure | 0.5-0.8MPa | |
3 | Total power | 6KW | |
4 | Main axis power | 3KW | |
5 | Max rotary speed | 18000/min | |
6 | X-axis speed | 3000mm | |
7 | Y-axis speed | 500mm | |
8 | Z-axis speed | 330mm | |
9 | X axis speed | 50000mm/min | |
10 | Y and Z axis speed | 15000mm/min | |
11 | Collect | ER25 | |
12 | Processing widthxheight | 200x200mm | |
13 | Overall size | 4180x1600x2200mm | |
14 | Weight | 1400kg | |

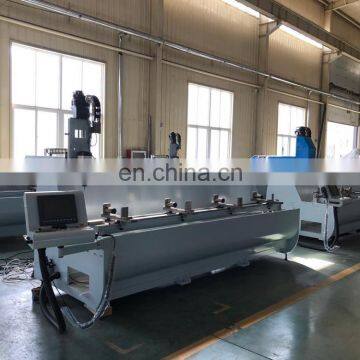

3.Detailed Photos
4.Aluminum Profile Milling Sample
5.The most Hot Sale Model Bulk Production Of SKX3+1-CNC-3000 Aluminum Profile CNC Drilling Milling Machine
6.Packing and Deilivery
7. More Machine Photos
8.Contact Demi freely for further info
