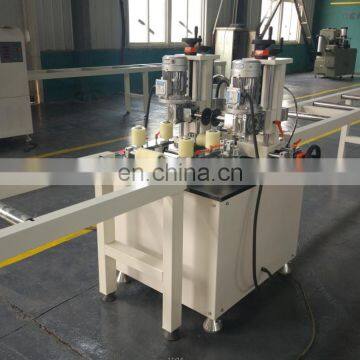

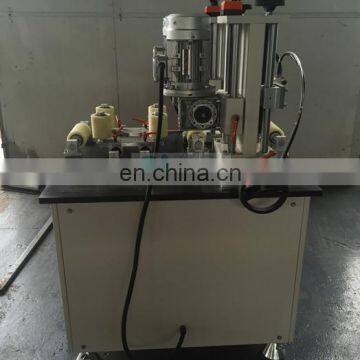

Thermal break Machine Kunrling Feeding Insertion Line
Applications

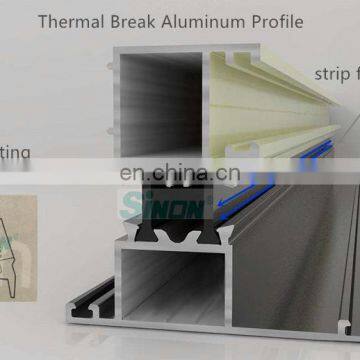

This machine is for knurling and feeding to make thermal break aluminum profile.
Can increase the binding force of aluminum profile and barrier in grooves where the thermal barrier strip goes through. The knurled grooves increase the friction force between thermal barrier strip and aluminum profiles.
Features

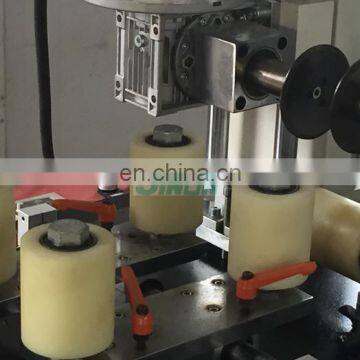

1.The vertical movement of knurling is electrically controlled, which makes changes of different profiles easy, fast, and stable.
2.Film coating support frame and clamping unit are available. Strip feeding can be achieved when knurling.

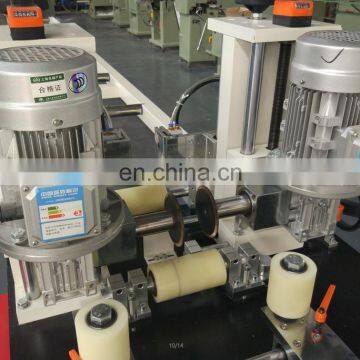

3.The two knurling heads can be vertically controlled by separate motors, and hand wheels as well.
4. Taiwan HIWIN linear rail and Schneider electrical appliance are adopted for stable performance.
Technical Parameters
Model | KCJ01 |
Power supply | 380V/50Hz |
Total power | 1.2 Kw |
Knurling wheel diameter | 120mm |
Max. Profile Size | 250*150 mm |
Air pressure supplied | 0.6-1Mpa |
Knurling speed | 0-90m/min |
Overall dimension | 1050x1100x1500mm(LxWxH) |
Weight | 650Kg |
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.
From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.
Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.
About
Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.
Using the newest technologies that are discovered for the area of window and door production, Sinon constantly improves and updates the window and door manufacturing equipment and window machines designs according to market requirements.
The window machines assortment of the company includes various models of upvc window machines and aluminium window machines especially built for a smooth and reliable window manufacturing experience.
Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.
