cnc 20T aluminium arc window bending machine
- 50 Set / Sets per Month
- qingdao
- T/T Credit Card
You May Like
-
precise 500 up saw cutting machines
-
aluminum window frame punching machine
-
copy routing factory price aluminum window machine
-
Light Type High Precision Cutting Machine for PVC Window Aluminium Window
-
automatic aluminium window corner connector cutting machine
-
Aluminum Window Profile Thermal Break Knurling and Inserting Machine
Product Details
| Brand Name | Sinon |
witnin wooden case / nude packing or custumed
Product Description

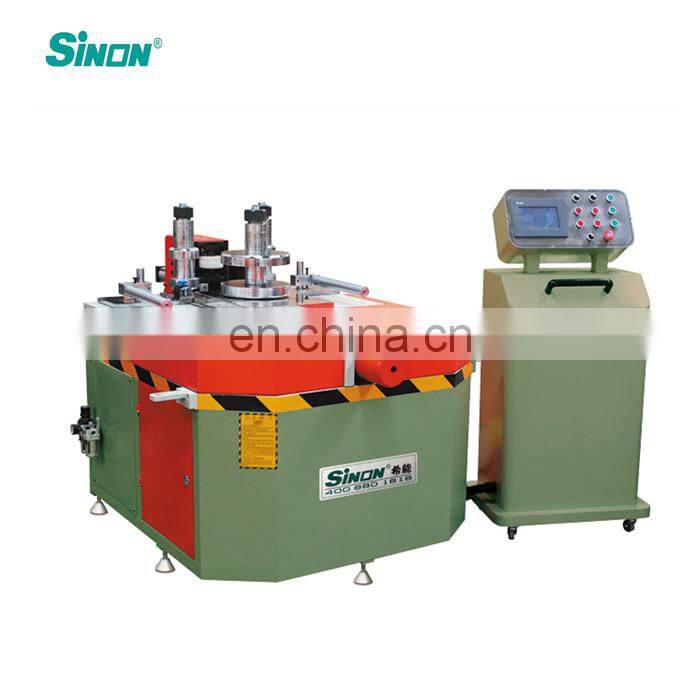

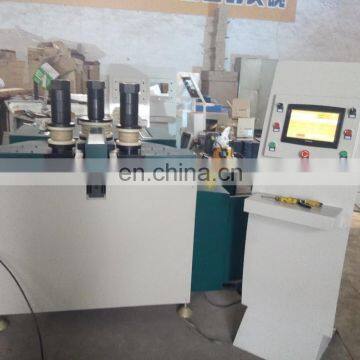

cnc 20T aluminium arc window bending machine
| Details |

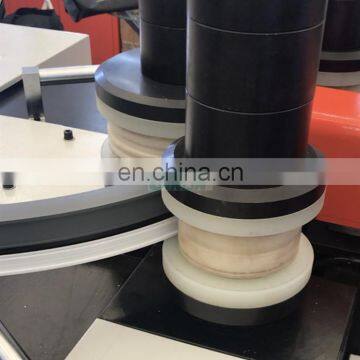

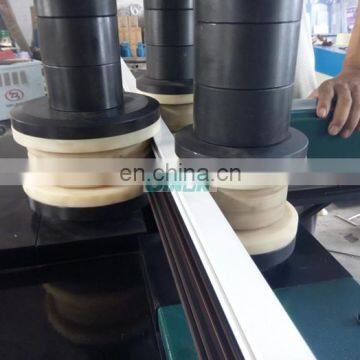

- Quipped with three drive rollers
- The maximum hydraulic pressure can be up to 30 tons.
- It can bend all kinds of aluminum profiles ( normal profiles, thermal break aluminum , alu-plastic-alu profile, alu-plastic profile) and rectangular steel pipe, stainless steel tubes etc.
- All profiles can be bent to designed shapes at one time which is of high efficiency and without wear; Or it can be bent multi-times if needed.
- Three drive rollers are controlled by CNC , smooth movement and accurate positioning. Positioning accuracy : + /-0.02mm.
- Distance between three drive rollers can be adjusted as your requirement.
- It can bend one radius arc ( ordinary “C”-shape arc ) , also can bend two radius arc (“U” –shape arc ) , and also three radius arc ( bread arcs and ellipses) ; Both planar circular and vertical surface can be bent.
- Function of resilience calculation and compensation. For the same radius arc , it can automatically calculate the amount of resilience . Thus , it saved a lot of profile and time when bend different profiles.

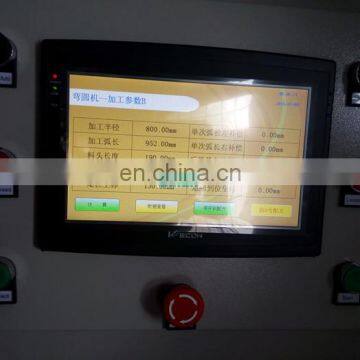

- It can store a certain amount of program ( depending on memory space ) , and enter as much information as in the program in order to easily identify it next time.
| Technical Specifications |
Min. profile diameter | 200mm |
Drive rollers diameter | 65mm |
Working mode | cnc control, hydraulic drive |
Distance between drive rollers | 260mm |
Accuracy for drive roller | 0.02mm |
Max. moving track for upper roller | 400mm |
Max. profile width | 260mm |
Power for hydraulic station | 4.5kw |
Max. hydraulic station | 30T |
Voltage | 380VAC/50HZ (can change as requirements) |
Dimension (L*W*H) | 1300*1100*1500mm |
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.
From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.
Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.
About
Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.
Using the newest technologies that are discovered for the area of window and door production, Sinon constantly improves and updates the window and door manufacturing equipment and window machines designs according to market requirements.
The window machines assortment of the company includes various models of upvc window machines and aluminium window machines especially built for a smooth and reliable window manufacturing experience.
Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
