aluminium door and window making corner connector cutting machine
- 20 Set / Sets per Month
- Qingdao
- T/T Credit Card
- aluminium door and window making machine corner crimping
- Two Head Aluminium Extrusion Profile Cutting Machine for Making Window
- 2018 Single Head Aluminium Extrusion Cutting Machine for Making Window Door
- Most Economical Aluminium Profile Cutting Off Saw for Aluminium Window
- aluminium extrusion single head copy router for windows and doors
- aluminium extrusion 450 cutting machines for windows and doors
Product Details
Brand Name: | Sinon | Model Number: | LJJ01-450 |
Packaging Details
wooden case or according to customers' demand
Product Description

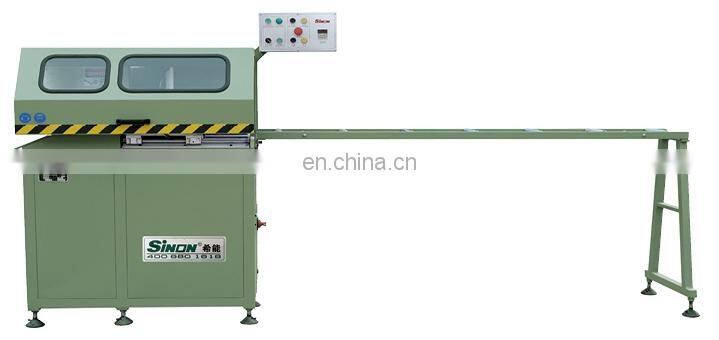

aluminium door and window making corner connector cutting machine
Details
- It is used for cutting corner connecter of aluminium profiles
- Adopts industry grade computer system, the user can set the processing parameters according to profile, the cutting size shift quickly, locating precision high, the repeat locating precision is ±0.2mm(optional: cnc model)
- Automatic alarm function when without work pieces or finish cutting
- Auto device to realize the continuous feeding
- The feeding stroke can adjustable within 3-600mm
- Saw blade rotates smoothly due to high accurate main spindle, steady running with high precision
- The speed of saw blade infeed in linearity adjustable by air-hydraulic cylinder
- Equipped with phase sequence protection device, so as to protect the machine once shut off or misconnect the phase.
Technical Specifications
Product Name | aluminium door and window making corner connector cutting machine |
Power supply | 380V 50HZ |
Total power for motor | 2.2KW |
Blade specification | Φ450mm×φ30mm×4.4mm |
Cutter feeding speed | 0-3m/min |
Cutting length | Max 100mm Min3mm |
Blade W*H | 120*120mm |
Cutting angle | 90° |
Repeat locating length tolerance | ±0.20mm |
Cutting profile surface plane | ≤0.10 mm |
Cutting angle tolerance | ±5′ mm |
Cutting profile surface roughness | Ra12.5um |
Contour dimension(L*W*H) | 5500×1700×1900mm |
Weight | 500kg |
Details Photo
Machine Layout Drawing for 30-50 Aluminum windows and doors per shift
- Sinon LJZ2B-CNC-500*4200 Double-head precision cutting saw (LJZ2B-CNS-500*4200)
- Sinon SSJ06-3700 Double head cutting saw
- Sinon LSFX-100 Cory router for aluminium window (SX01-100) 2 set
- Sinon DX06-250 End milling machine for aluminium profile (DX06A-250) 1 set
- Sinon LJJ02A-500 aluminium door and window making corner connector cutting machine (LJJ01-450) 1 set
- Sinon LYJ-75 Punching machine for aluminium window (LY6-50) 2 set
- Sinon LZJ03-130 Corner crimping machine for aluminium window 3 set
