China supplier aluminum profile cutting machine price in pakistan
- 90°, inside 45, outside 45 cutting plastic and aluminum profile. Various angle cutting is available.
- Right head moving is driven by motor automatically and easily. Auto brake device.

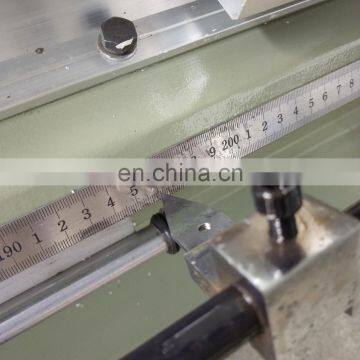

- Micro cutting length adjustment device ensure precision and easy operation.
- With the additional intermediate supporting mechanism of equivalent length, convenient feed and location.
- The linear guiding pair ensures steady processing accuracy.

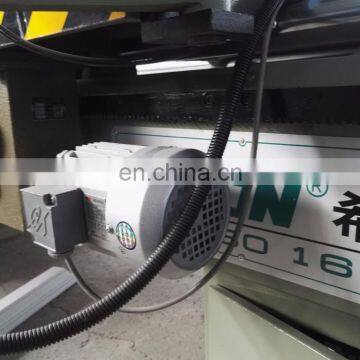

- Saw blade rotates smoothly due to high accuracy main spindle.
- Saw blade straight feeding from inside to outside stably and precisely by pneumatic cylinder. Optional Hydro-pneumatic feeding cylinder is available.
- Carbide Saw blade ensure high cutting surface precision.
- Two hand safety operation
Air Pressure: | 0.4-0.6MPa |
Air Consumption | 200(L/min) |
Input Voltage: | 3N-50Hz 380/220V or As Customer Specification |
Input Power: | 3(Kw) |
Saw Blade Diameter: | Φ 450 |
Motor Rotary Speed: | 2800(r/min) |
Cutting Height: | 200(mm) |
Cutting Width | 120(mm) |
Cutting Length: | 45° max 3700mm Min 550mm 90° max 3700mm Min 400mm |
Overall Dimension: | 4500mm×1170mm×1400mm |
Weight: | 1500(kg) |
China supplier aluminum profile cutting machine price in pakistan
- Q1: Are you trading company or manufacturer ?
A1: We are factory . We are a leader in aluminum cutting machine manufacturing for 20 years in China. - Q2: How long is your delivery time?
A2: Generally it is 3-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity. - Q3: How does your factory do regarding quality control?
A3:We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out. - Q4. What will you do if the machines have problems?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment. - Q5: What is your terms of payment ?
A5: 30% TT deposit,70% balance before shippment . Deposit must be TT ,balance could accept 100% irrevocable L/C at sight . - Q6: How long from Jinan airport to your factory ?
A6: About 10minutes . We could pick you up at the airport or railway station if you need. Q7: If I make Aluminum window and door, how many basic machines do I need?
1).Double /Single-head cutting saw
2).Copy routing machine
3).End milling machine
4).Corner connector automatic cutting saw
5).Corner crimping machine
6).Punching machine- Q8:If I make PVC window and door, how many basic machines do i need?
1).Double /Single-head cutting saw
2).Welding machine
3).Glazing Bead saw machine
4).Water-slot Milling machine
5).V cutting machine / End Milling machine
6).Lock hole Milling machine
7).Corner cleaning machine
