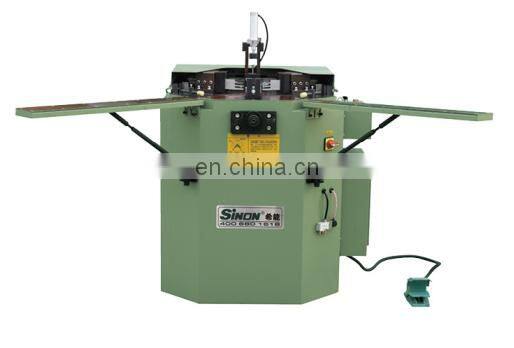

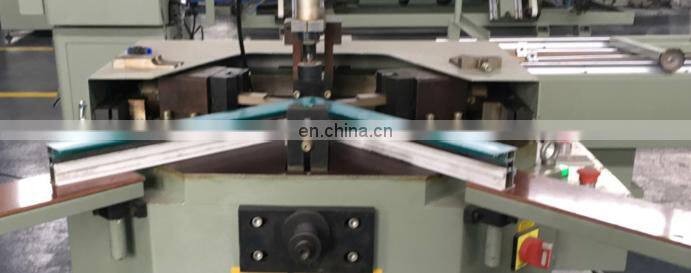

Factory price window frame making machine used for aluminum window
Features:
1. Used for corner combination of aluminum alloy profile
2. It features of high power, widely scope and suitable for corner combination of the common profiles and heat insulation bridge-cut aluminum alloy profile.
3. Multiple combination localization system so that ensure the accuracy.
4. The link gear mechanism ensures the corner combining cutter of two side working completely synchronized.
.
Technical Specifications
Power supply | 380V 50Hz or Customers specification |
Motor power | 1.5KW |
Rated oil pump pressure | 16Mpa |
Motor rotational speed | 1400r/min |
Model of the oil pump | 2.5MCY |
Profile processing height | Max)120mm |
Profile processing width | 90mm |
Total combining pressure | 0.5-0.8Mpa |
Air consumption | 2L/min |
General pressure of corner combining | 48KN |
Corner combining casing movement journey | 85mm |
Weight | 300kg |
