Sinon Brand Double Head UPVC Door and Window Welding Machine
- 20 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
You May Like
-
Sinon Brand Two Corner Welding PVC Window Machine
-
Sinon Brand PVC UPVC Window Four Head Corner Welding Machine
-
Sinon Brand Double Corner Efficient Machine For Welding PVC Window
-
Sinon Brand Double Head Automatic PVC Doors And Windows Making Machine
-
Sinon Brand PVC Window Welding Machine Price
-
Sinon Brand Double Head Green Common PVC Window Welder
Product Details
| Brand Name | Sinon | Place of Origin | Shandong, China | |
| Weight | 1200KG, 1200KG | |||
| Voltage | 220V/380V/Customize | Power | 3KW | |
| Usage | PVC Window And Door Welding | Frequency | 50HZ | |
| Dimensions | 4500*1700*1100mm | Welding Area | Depend |
Wooden Case or Standard Package for Sinon Brand Double Head UPVC Door and Window Welding Machine
Product Description
Sinon Brand Double Head UPVC Door and Window Welding Machine
Features
- Popular machinery type with 0.2mm welding.
- Various angles welding between 30 to 180 degree is available on last machine head.
- Solid machinery base and structure ensure long life service with high dimension accuracy.
- profile fixture ordered separately can meet various height profiles' processing requirement
- Special profile fixture is easy to change, for high corner strength and later good cleaning
- Each machine head can be working separately or combination.
Technical Parameter
Product Name | Sinon Brand Double Head UPVC Door and Window Welding Machine | ||
Model | Four-head | Three-head | Two-head |
Input power source | 380V/50Hz | 220V/50Hz | |
Total power | 4.5Kw | 3.5Kw | 2.5Kw |
Working air pressure | 0.5~0.8MPa | ||
Air consumption | 200L/min | 150 L/min | 100 L/min |
Height of welded profile | 20-120mm 20-170mm(optional) | ||
Width of welded profile | 0-120mm | ||
Welded range | 400-4500mm | 400-3500mm | |
Dimension | 5400×1100×1650mm | 4400*1100*1650mm | |
Weight | 1500kg | 1300Kg | 1100Kg |

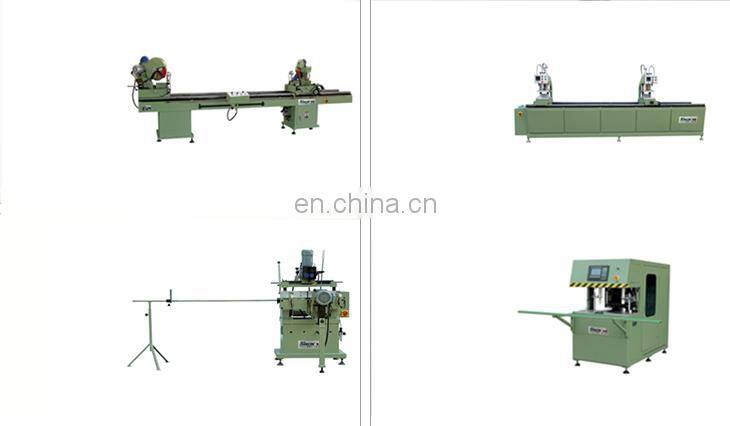

Optional Models
- Manual portable welding machine
- Single head welding machine (normal) HJ02-120
- Single head variable welding machine special for arch window SHD01-120
- Four head welding machine (normal) HJ02-4500.4/4.A
- Double / Four head seamless 0.2mm welding machine WHJ-3500*2
- CNC four corner welding machine SHP4-CNC-180*1800*3000
- Welding-Cleaning line SHQXJ01

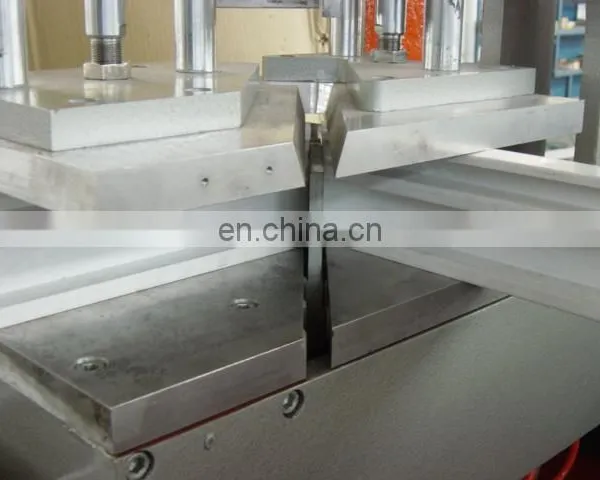

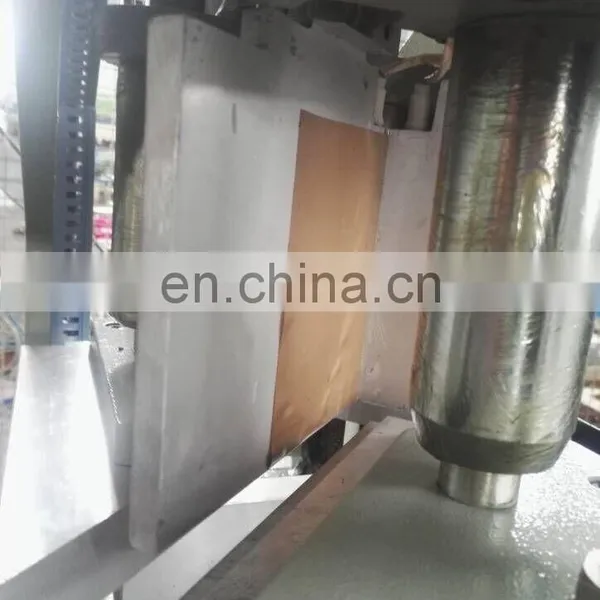

Details Photoes
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.
From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.
Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.
About
Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.
Using the newest technologies that are discovered for the area of window and door production, Sinon constantly improves and updates the window and door manufacturing equipment and window machines designs according to market requirements.
The window machines assortment of the company includes various models of upvc window machines and aluminium window machines especially built for a smooth and reliable window manufacturing experience.
Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.

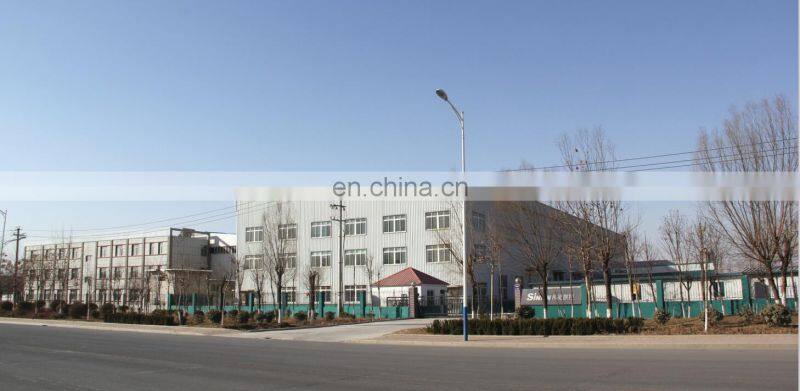

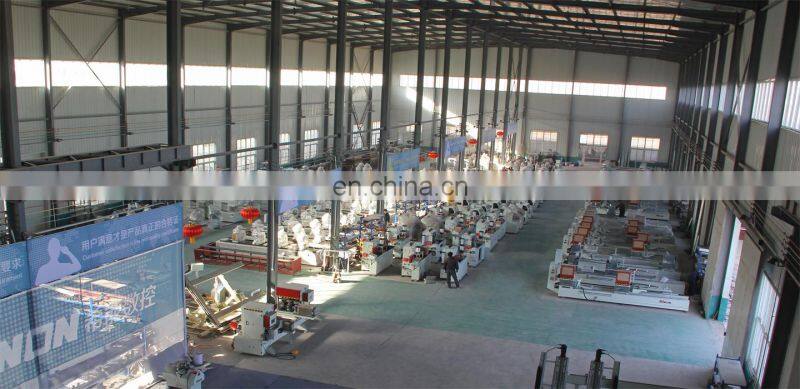

Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
