Sinon Brand Two Corner Welding PVC Window Machine
Features
- Popular machinery type with 0.2mm welding.
- Various angles welding between 30 to 180 degree is available on last machine head.
- Solid machinery base and structure ensure long life service with high dimension accuracy.
- profile fixture ordered separately can meet various height profiles' processing requirement
- Special profile fixture is easy to change, for high corner strength and later good cleaning
- Each machine head can be working separately or combination.
Technical Parameter
Product Name | Sinon Brand Two Corner Welding PVC Window Machine | ||
Model | Four-head | Three-head | Two-head |
Input power source | 380V/50Hz | 220V/50Hz | |
Total power | 4.5Kw | 3.5Kw | 2.5Kw |
Working air pressure | 0.5~0.8MPa | ||
Air consumption | 200L/min | 150 L/min | 100 L/min |
Height of welded profile | 20-120mm 20-170mm(optional) | ||
Width of welded profile | 0-120mm | ||
Welded range | 400-4500mm | 400-3500mm | |
Dimension | 5400×1100×1650mm | 4400*1100*1650mm | |
Weight | 1500kg | 1300Kg | 1100Kg |
Optional Models
- Manual portable welding machine
- Single head welding machine (normal) HJ02-120
- Single head variable welding machine special for arch window SHD01-120
- Four head welding machine (normal) HJ02-4500.4/4.A
- Double / Four head seamless 0.2mm welding machine WHJ-3500*2
- CNC four corner welding machine SHP4-CNC-180*1800*3000
- Welding-Cleaning line SHQXJ01

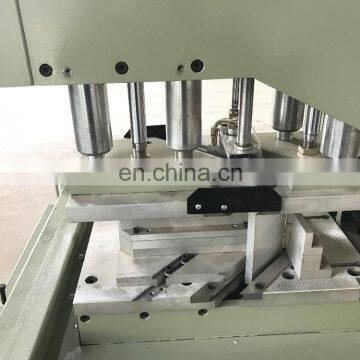

Details Photoes Sinon Brand Two Corner Welding PVC Window Machine
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.
From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.
Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.
About
Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.
Using the newest technologies that are discovered for the area of window and door production, Sinon constantly improves and updates the window and door manufacturing equipment and window machines designs according to market requirements.
The window machines assortment of the company includes various models of upvc window machines and aluminium window machines especially built for a smooth and reliable window manufacturing experience.
Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.
