Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Window & Door Making Machine > Aluminium Window Variable Punching Machine/aluminum Window&door Variable Lock Hole Punching Machinery
Aluminium Window Variable Punching Machine/aluminum Window&door Variable Lock Hole Punching Machinery
US$ 1,500 - 2,100
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SINON
Model Number:
SSK02-100
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdoao shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Upvc Window Making Machine Used for Upvc Cutting MachineUS$ 2,900 - 4,500MOQ: 1 Set -
Plastic Pvc Upvc Window Machine Sealed Cover Milling MachineUS$ 420 - 520MOQ: 1 Piece
-
UPVC Double Head Mitre Saw Angle Saw Cutting Machines for Pvc Plastic WindowUS$ 2,900 - 4,500MOQ: 1 Set
-
Aluminium Door and Window Making Machine Window Frame Making MachineUS$ 13,000 - 19,000MOQ: 1 Set
-
Pneumatic Pvc Upvc Window Machine Used for Cleaning 90 Degree V Shape CornerUS$ 1,590 - 1,950MOQ: 1 Piece
Brand Name
SINON
Model Number
SSK02-100

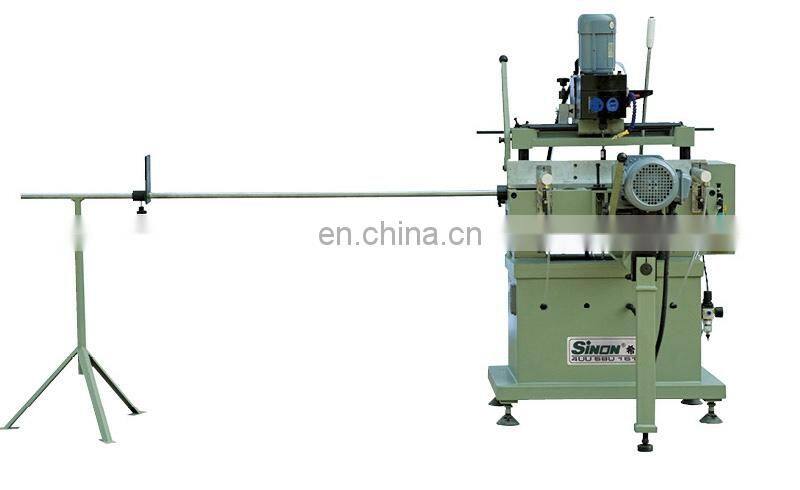

lock hole Punching Machine for aluminum windows doors making
- Used for processing handles in three holes and the slots which for installing the hardware at the PVC and Aluminium profile.
- The lock hole drill system opposite the operator, easy operation.
- Routing to stops or universal template in 1:1 ratio
- Handle wheel for easy adjusting milling height. Friendly using design
- Horizontal triple drill and vertical copy router with special cutout working table to realize
- one time finishing.
Technical Specifications
Operation Air Pressure | 0.5~0.8(MPa) |
Air Consumption | 30L/min |
Input Voltage | 380V/50Hz or Customer specification |
Main-Shaft Revolution | 12000(r/min) |
Input Power | 2.25(kW)) |
Cutter Diameter | φ5φ8(mm) |
Copy Milling Range | 90×290(mm) |
Overall Dimension | 1000×1130×1500(mm) |
Machine Weight | 300(kg |
