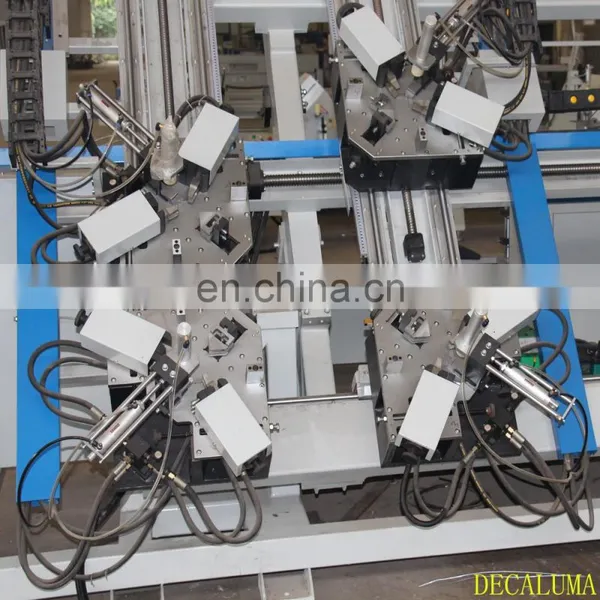

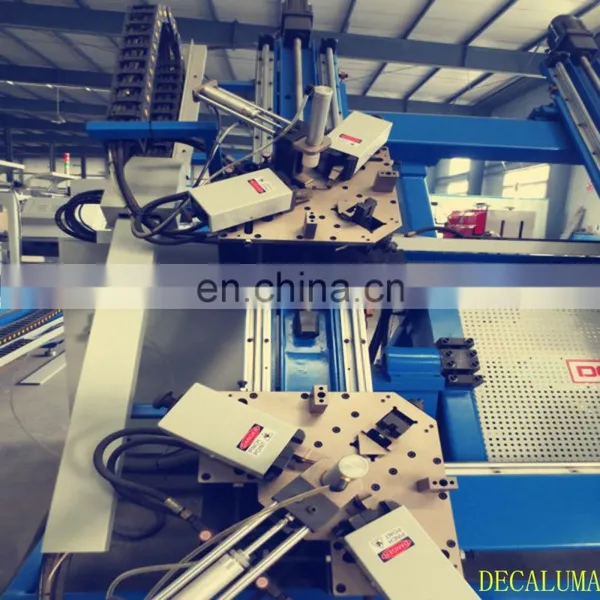

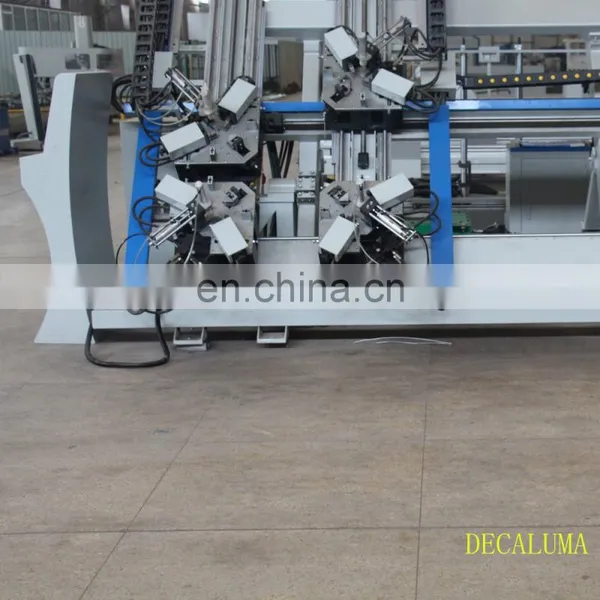

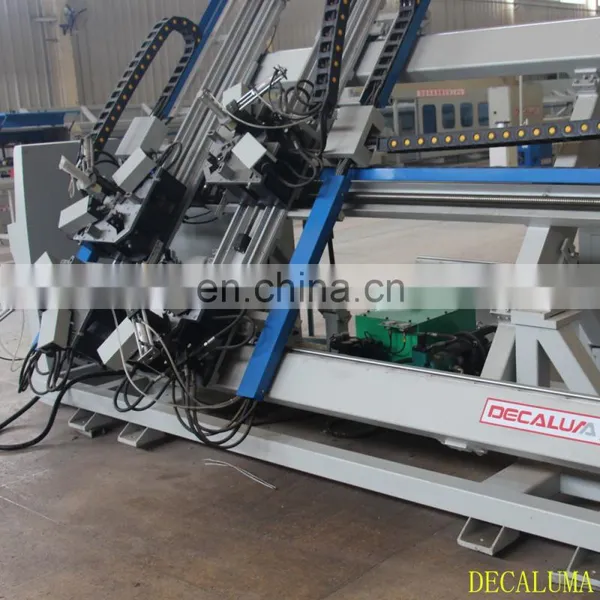

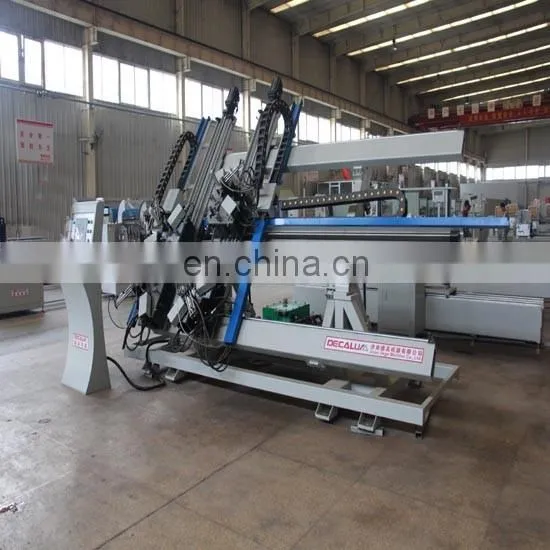

Help CenterAluminum Window Machine Aluminium Window and Door Four Heads Corner Crimper Made in China
Related Products
-
Aluminum Window Door Processing Machine Single Head Corner Crimping EquipmentUS$ 3,080 - 3,880MOQ: 1 Set -
Aluminum Fabrication Machine Single Head Hydraulic Corner Crimping MachinesUS$ 2,000 - 2,100MOQ: 1 Set
-
Aluminum Doors And Windows Frame Making MachineryUS$ 3,780 - 3,880MOQ: 1 Set
-
Aluminum Window Sash Making Crimping Machine Aluminum Windows Fabrication MachineUS$ 2,900 - 3,500MOQ: 1 Set
-
Press Blade Adjustable Single Head Aluminium Window Making Corner Crimping MachineUS$ 2,900 - 3,500MOQ: 1 Set
Function
1. Aluminum Window Making Machine Aluminum Window Manufacturing Machine Used for corner crimping of aluminum window and door and curtain wall sash, four corners can be finished in one cycle.
2.Aluminum Window Making Machine Aluminum Window Manufacturing Machine with high automatic and intelligent operation in the whole working cycle with CNC system driving, automatic fabricating size control.
3.Linear bearing moving with high accuracy and stability.
4.Four corner auto pre-clamping by moment supervising of servo-control system.
5.Convenient adjustment of the crimp tooling for different profile requirement.
Technical parameter
Power supply | Made to order |
Hydralic gearbox motor power | 7.5KW |
Rate oil cylinder pressure | 15Mpa |
Oil tank capacity | 40L |
Air pressure | 0.5~0.8Mpa |
Air consumption | 60L/min |
Crimping pressure | 12Mpa |
Processing profile height | Max. 95mm |
Travel size for crimping cylinder | 85mm |
Adjust range of main locating plate | 54mm |
Fabrication range | 500×500~1800×3000 mm |
Dimension (LxWxH) | 4700×2000×2660mm |
Weight | 1500kg |
You may need the following machine if you want start a new factory!
The following is our main supplier brand:
WE ARE NOW EXPORTING TO MORE THAN 35 COUNTRIES ALL OVER THE WORLD
Service of Professional Aluminium Alloy Window Making Machine
ABOUT OUR MACHINE:
1. All our machines are 12 months quality guarantee,lifetime maintance.
2. Engineers available for machinery overseas service.
3. Make specialized solutions for client's requirements.
4. 24-Hour on line by Email , Skype ,WhatsApp or call .
5. Can get spare parts quickly from our Agency or Headquarters.
ABOUT YOUR FACTORY:
1. Give you the suggestions on your factory building.
2.Arrange the machine in your workshop so that can get high efficiency.
3.According to your prodction give you the best plan of full set of machine that you need .
Payment Terms
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union
Quality Testing
Before delivery ,our engineer must make the Testing for every machine, to make sure that our machines can work with perfect performance !
Packaging Detail: in plastic film and Wooden case
Delivery Detail: 10-20 days once receiving from the 30% deposit
