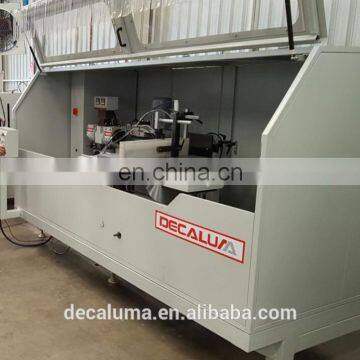

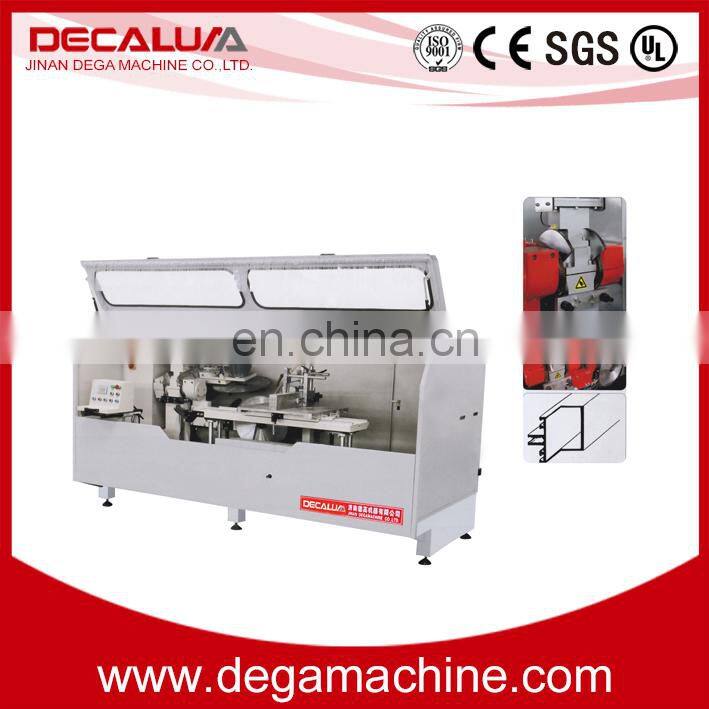

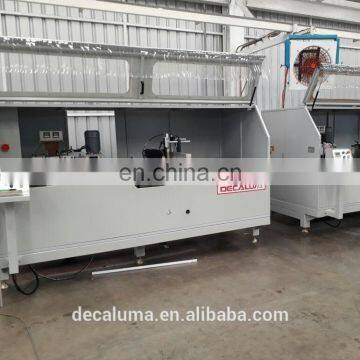

China aluminum curtain wall interface cutting saw LJK-500
Specification:
1. High performance notching saw designed for the field of aluminum curtain-wall and lighting skylight processing with the special angle at profiles end surface.
2. Equipped with magnetic ruler control system, can display digits of cutting angle and worktable height.
3. Convenient worktable and locating device adjustment,can achieve special end surface angle processing.

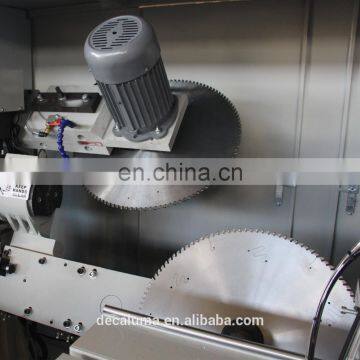

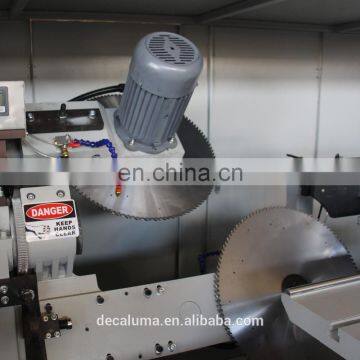

4. The two saw blades can swing freely at+45º~-45º, cutting special angles.
5. Circuitry has phase sequence relay and automatic power off device when opening electric cabinet, greatly improve safety.
6. Two moving saw units working at the same time while the profile is stationary, high accuracy.
7. This machine can realize clamping several profiles horizontally and vertically at the same time because of wider working plate.
Technical Parameter:
Power supply | Made to order |
Hydraulic gearbox motor power | 2x2.2 KW |
Rotary speed | 2800r/min |
Operation air pressure | 0.5~0.8Mpa |
Angle between 2 saw blade | -45°~+45° |
Max. cutting depth(vertical and horizontal) | 150mm |
Saw blade specification | φ500mm×4.4mm×φ30mm Z=120 |
Dimension | 3200*1400*1800mm |
Weight | 1500kg |
1.Sample service:
Engineer available overseas
2. Customized service:
Free industrial information , free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall productline.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
We support trade assurance on Alibaba, which is a free payment protection service for buyer regarding product quality and transaction security.
Jinan Dega machine co., Ltd.(DECALUMA) is located in High-tech zone, jinan, shandong. We established in 2006 with registered capital 3 millions RMB. The company has more than 100 employees with more than 20 people in technology development team.
We engaged in research and producing and sales of high quality aluminum profile processing machine and windows and door processing machine, and we have export and import right.
pany managment:
Establised in 2006, We have a more than 100 employees work team , and 20 people in technology development team .
duct capacity:
30sets per month
3.Quality control :
ISO9001/ CE
4.Exhibition :India Guangzhou Beijing Shanghai
5.Export Market: Asia , Europe , South Africa , Australia , North Africa
1.Quick detail of our company.
Company Name | JINAN DEGA MACHINE CO.,LTD. |
Year established | 2006 |
Address | No.389,TIANCHEN ROAD,JINAN CITY,250101 CHINA |
Business type | Manufacturer |
Product range | CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine |
Product advantage | Using advanced solidworks design platform |
Management certificate | ISO9001,national patent |
Fair we attend | Shanghai and Beijing international windows show |
E-catalog | available |
MOQ | 1 set |
Payment terms | TT or L/C |
Shipping port | Qingdao port |
1. What do you company do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 days
4. what kind of machine your company could provide?
there are many types of machines in my company, such as CNC maching center, CNC milling machine, cutting machine, slot-hole processing machine and corner crimping machine,and other auxiliary machines.
