Casement Window CNC Free Angle Cutting Saw with Double Mitre Saw
- qingdao
- T/T Credit Card
You May Like
-
Aluminum Profile Angle Cut 45 Degree Saw Machine Aluminum Mitre Saw Cutting Machine
-
Aluminum And PVC Window Cutting Machine Window Making Machine
-
angle cut 45 degree band saw machine aluminium saw cutting machines double head cutting saw machine
-
Aluminum Double Head Cutting Saw Miter Saw Machine
-
Aluminum Profile Cutting 45 Degree Angles Circular Saw Machine
-
DECALUMA Aluminum Profile PVC High Precision Double Cutting Mitre Saw
Product Details
| Brand Name | DECALUMA | Model Number | LJZ3J-CNC-500*5000 |
Product Description
Aluminum Window Machine Aluminum Double Mitre Saw CNC Controlled Any Angle
Machine introduction:
1. Aluminum Window Machine Aluminum Double Mitre Saw CNC Controlled Any Angle used for Aluminum, PVC and Curtain-wall profile accurate Cutting.
2. Cutting length is controlled by computer control system to locate fast and precisely.
3. The machine connected with computer, downloaded software to create processing digital, finished the CAD/CAPP/CAM.
4. Imported motor and carbide saw blade for a high quality cutting and life.
5. Hydraulic cylinder ensured the stable speed adjusting and saw blade working
6. Imported motor drove the speed reducer, thus make the angle cutting can be changed in 22.5°to 135°.
7. Imported control system which can achieve the optimization of the profile and other functions
8. Mobile cutting saw head drove by the servo motor, who has those features: high speed ,controlled by full closed loop and scale with high precision.
9. There is a saw seal device under the workbench which make sure a good clearance.

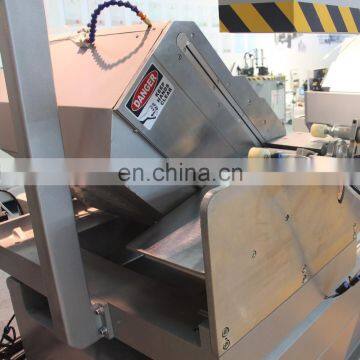

10. The machine has a movable saw cover thus keeps a safe and reliable working environment.
11. The following supporting frame with the compact structure.
12. Every head with three cylinder to clamping profile, thus make the cutting safe and reliable.
Technical parameter:
Power supply | Made to order |
Motor power | 8.9Kw |
Air pressure | 0.5~0.8MPa |
Air consumption | 0.2m³/min |
Saw blade specification | φ500mm×4.4mm×φ30mm Z=120 |
Motor rotation speed | 2800r/min |
Running speed | 0~18m/min |
Length error | ±0.1mm |
Cutting angle | 22.5°~135°(double head independent adjustment ) |
Cutting length | 0~5000mm( 90°) |
Cutting width | 160mm(90°,MAX) |
Cutting height | 350mm(90°,MAX) |
Feeding speed | Stepless timing 0~3m/min |
Cutting profile surface plane | ≤0.10mm |
Cutting angle tolerance | Ra12.5 μm |
Overall dimension | 6800mm(L)×1500mm(W)×2050mm(H) |
Weight | 2500Kg |

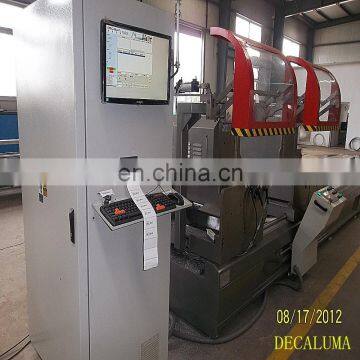

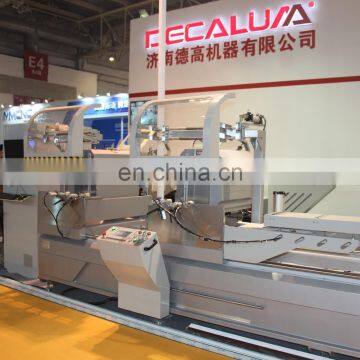

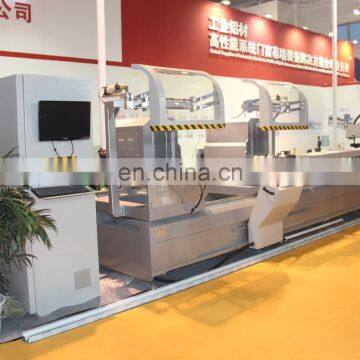

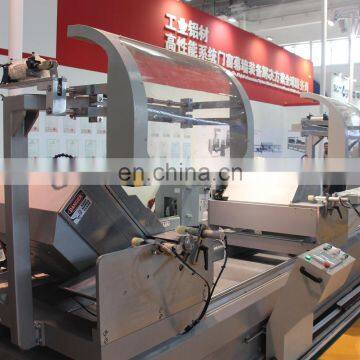

double mitre saw for aluminum
double mitre saw for aluminum
double mitre saw for aluminum
double mitre saw for aluminum
double mitre saw for aluminum
1.Sample service:
Our engineer is available to travel abroad, help the installation, maintenance and training staff.
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
We support Trade Assurance on Alibaba, which is a free payment protection service for buyer regarding product quality and transaction security.
JINAN DEGA MACHINE CO.,LTD.(decaluma)is located in Jinan city, Shandong province, China, which is a professional exporter and manufacturer focusing on research,production and sale of aluminum profile processing machine.
Our Company is a specialized company that engaged in research,producing and sales of high quality aluminum profile processing machine and windows and door processing machine, we have Export &Import right.
2. When you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
4. Are you trading company or manufacturer?
Manufacturer(OEM)
5. Quick details about our company
Company Name | JINAN DEGA MACHINE CO.,LTD. |
Year established | 2006 |
Address | No.389,TIANCHEN ROAD,JINAN CITY,250101 CHINA |
Business type | Manufacturer |
Product range | CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine |
Product advantage | Using advanced solidworks design platform |
Management certificate | ISO9001,national patent |
Fair we attend | Shanghai and Beijing international windows show |
E-catalog | available |
MOQ | 1 set |
Payment terms | TT or L/C |
Shipping port | Qingdao port |
