Product Details
Brand Name: | DECALUMA | Model Number: | SKX-CNC-1200 |
Product Description

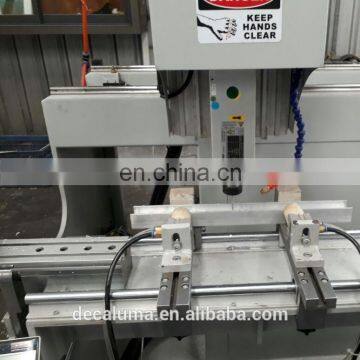

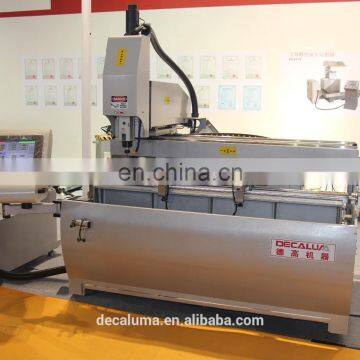

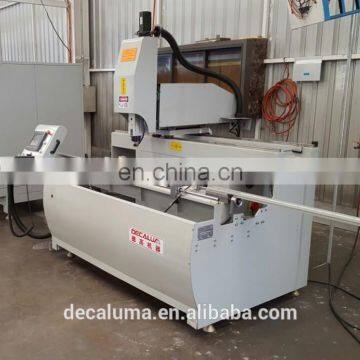

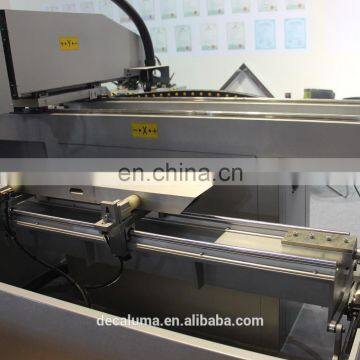

Aluminum Profile Door Lock Hole CNC Drilling Machine
1. Applicable for drilling holes ,milling groove ,circular hole,irregular-shaped and keyhole and plane engraving of aluminum profile.
2. It Adopts Taiwan SYNTEC CNC system,which makes sure smooth running of machine.
3. Adopt with high precision electric axis , keep working safety.

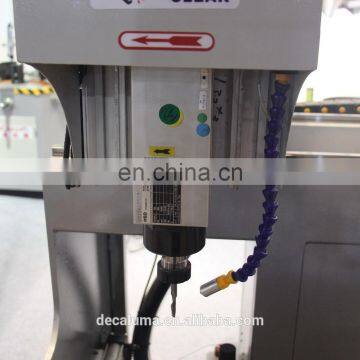

4. Electrical spindle is HSD brand(3KW, 18000r/min).
5. X axis adopt with high precision bevel gear ,while Y axis and Z axis adopt with high precision ball screw ,thus keep transmission smooth .
6. CAD-CAM Programming software can automatically convert G code,you can drawing any holes on computer.
7. Worktable can be rotated to 180° (-90° -0°- +90°), Clamping profile one time, three sides processing. it can process deep and special-shaped holes through workbench;high efficiency and precision.
Made to order | |
Spindle power | 3KW |
Spindle rotary speed | 18000r/min |
Operation air pressure | 0.5~0.6Mpa |
Processing range of X/Y/Z | X=1200mm,Y=300mm,Z=280mm |
The specification of blade | ER25 *8 diameter |
System | SYNTEC |
Max.Processing range of hole | 100*140mm |
Dimension | 2200*1500*1950mm |
Weight | 610kg |
1. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
2. After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
1. What you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines, just contact our company email.
2. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
3. Are you trading company or manufacturer?
Manufacturer(OEM)
4. Quick details about our company
Company Name | JINAN DEGA MACHINE CO.,LTD. |
Year established | 2006 |
Address | WEST END OF CENTURY AVENUE, HIGH-TECH ZONE,JINAN CITY,250101 CHINA |
Business type | Manufacturer |
Product range | CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine |
Product advantage | Using advanced solidworks design platform |
Management certificate | ISO9001,national patent |
Fair we attend | Shanghai and Beijing international windows show |
E-catalog | available |
MOQ | 1 set |
Payment terms | TT or L/C |
Shipping port | Qingdao port |
