Good Quality Multi-function Canola Oil Press Machine Oil Extraction Machine

Standard Export Wood Pack Machinery

Product parameters

Application range

The automatic screw press is widely used for extracting more than 20 kinds of oil processing materials such as sesame, peanut, rapeseed, tea seed, soybean, canopy, hemp seed, avocado, cottonseed, corn and walnut. The 4-stage extrusion oil is vacuum filtered, the fragrance is attractive, the crystal is pure, safe and hygienic, and can be directly consumed or bottled for sale.

Introduction:

The new automatic multi-function screw press is a new type of oil press equipment designed on the basis of the introduction of foreign advanced technology and according to China's national conditions. The oil press has small footprint, high production efficiency, excellent material selection, reasonable structure, beautiful appearance, reliable quality, simple operation, labor saving, automatic temperature control, high oil yield, vacuum filter, high efficiency. .

structure:

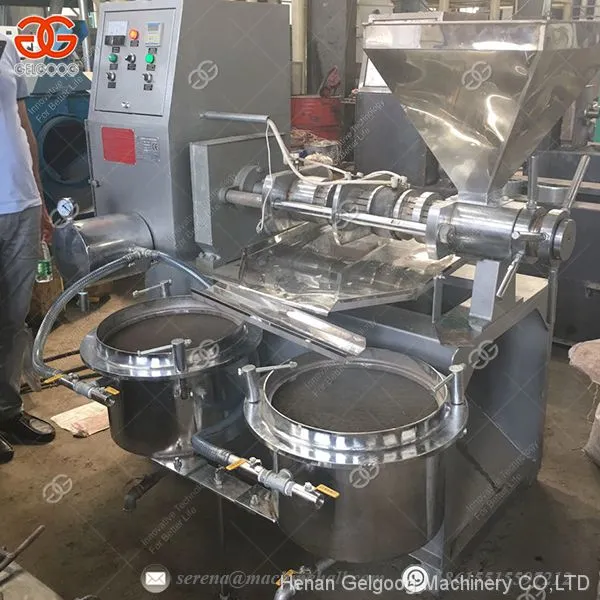

The screw press is mainly composed of electrical control, automatic heating, adjustment, transmission and vacuum filter oil. The snail is made of alloy steel by carburizing to enhance the surface hardness and wear resistance; the squeezing is ground by a surface grinder to ensure the accuracy of the oil line and improve the oil yield; standard components such as power distribution, vacuum and automatic heating, optimize the machine configuration. The surface of the machine is made of stainless steel and chrome, which meets food hygiene standards.

The reason why the automatic oil press is called fully automatic means that except for the feed, basically no other operations are required, the brake temperature control, the vacuum filtration, the operation is simple, the floor space is small, and the oil yield is high. The new automatic oil press can adjust the suitable temperature for different raw materials at the same time, which is convenient to operate and simplifies the complexity of the fried material.

The working principle of the oil press:

When the oil press is in operation, the processed oil enters the squeegee from the hopper. From the squeeze spiral, the embryo is continuously pushed in and pressed. Since the embryo is carried out under the action of the squeezer in the oil press, under the condition of high pressure of pressing, a large frictional resistance is generated between the embryo and the snail, the embryo and the squeezing, so that It can cause friction between the micro-materials and cause relative motion.

On the other hand, since the diameter of the root garden of the snail is gradually thickened, the pitch is gradually reduced, so that when the snail is rotated, the thread can push the embryo forward, and can be turned outward, and close to the screw thread. The layer of material on the surface also rotates with the shaft. Thus, each of the embryo particles in the squeegee is not at the same speed, moving in the same direction, but there is also relative motion between the particles.

The heat generated by the friction satisfies the heat necessary for the operation of the oil extraction process, helps to thermally denature the protein in the embryo, destroys the colloid, increases the plasticity, and also reduces the viscosity and the oil is easily precipitated. The oil extraction rate of the oil press is increased, and the oil in the material is squeezed out and flows out from the slits of the circular row and the gap of the strip.

main feature:

High oil yield - Compared with old-fashioned equipment, the normal oil yield can be 4-6 percentage points higher, and the average oil consumption per kilogram of peanuts can be 4-6 kg. The annual economic benefits are considerable.

Energy saving - the same output reduces electric power by 40% and saves electricity costs.

Provincial labor - the same output can save 60% of labor, 1 to 2 people can organize production, saving labor costs.

It has a wide range of uses and can be used for more than 20 kinds of oil crops such as peanuts, sesame seeds, rapeseed, cottonseed and soybeans. Multi-stage pressing, one squeeze at a time.

Oil pure - vacuum filtration, to ensure the purity of oil, in line with health inspection standards.

Small footprint - oil mills only need 10-20 square meters to meet the needs

The oil press is mainly controlled by automatic electric control - infrared heating, vacuum filtration, and the main machine is made of high-quality materials. Its advanced processing and production has improved the oil output rate and the performance has reached the domestic advanced level.

The new multi-functional screw press is suitable for both units and small oil plants, and is suitable for one-off sales and external processing.
