RI80A Cylindrical High Voltage Resistor 5w 25w 10kv 50kv Limiting Voltage

RI80A Cylindrical High Voltage Resistor 5w 25w 10kv 50kv Limiting Voltage thumbnail-1
RI80A Cylindrical High Voltage Resistor 5w 25w 10kv 50kv Limiting Voltage thumbnail-2
RI80A Cylindrical High Voltage Resistor 5w 25w 10kv 50kv Limiting Voltage photo-1
RI80A Cylindrical High Voltage Resistor 5w 25w 10kv 50kv Limiting Voltage photo-2
US$ 0.6 - 20 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
QH
Place of Origin:
China
Model Number:
RI80A
Contact Supplier Request Quote Chat Now
Xianyang Qinhua Special Electronic Component Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name QH
Place of Origin China
Model Number RI80A
Type Fixed Resistor
Rated Power 5W, 25W
Operating Temperature 25PPM
Package Type Throught Hole
Resistance Tolerance +/-5%
Resistance 5K-100G
Technology Metal Film
Temperature Coefficient 25PPM
Product Description

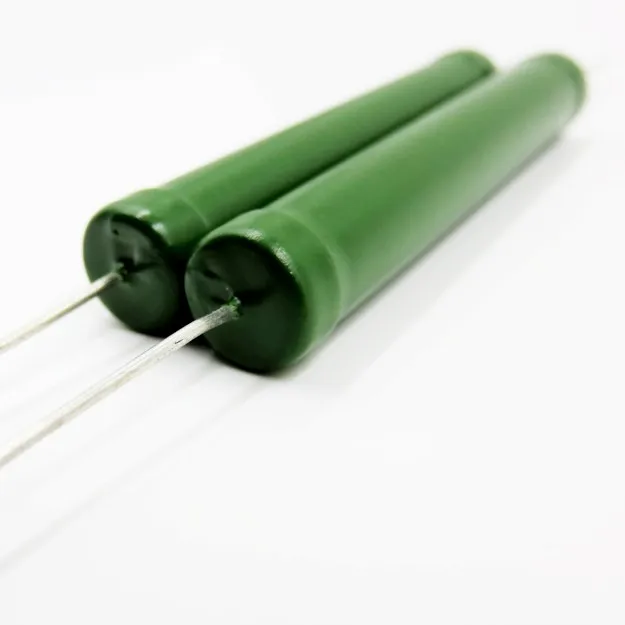

 RI80A cylindrical high voltage resistor 5w 25w 10kv 50kv limiting voltage

Features
1.Film materials: Metal Glaze.
2.Film: All covered or part covered.
re: ceramic rod ( A12O3 content over 95%)
4.Coating materials: Low temperature vitreous enamel
5.Resistance Range: 100OHM~100GOHM
Reted Powder
(W)
Resistance range (Ω)
Resistance Tolerance (%)
Limiting Voltage (KV)
Temperature Coefficient X10/K
contourDimensions
(ΦDxL)(mm)
   5
100-5.1G

  ±1-±10
8.0/10.0

    ±400
(25-125)℃
11x37/42
   10
5K-10G
25.0/32.0
11x71/12x114
    20
5K-100G
40.0/45.0
11x103/12x114
   25
5K-100G
50.0/55.0
11x126/12x138
Product Details
Applications
1. Medical equipment, x-ray
2. Electrostatic, dust extractor
3. Metering equipment
4. Precision devices
5. Smart grid sensing
6. Energy Regen, dynamic braking
7. Inverter power supply shunt
8. Laboratory HV equipment
Technology Standard
1.GB/T5729-2003/IEC60115-1:2001
2.Q/QH1618-2007


Product Tags: RI80A resistor , high voltage resistor 5w 25w 10kv 50kv limiting voltage , 10kv 50kv limiting voltage
