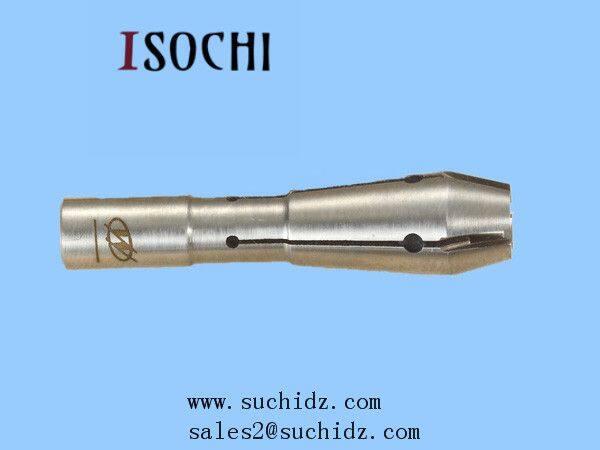

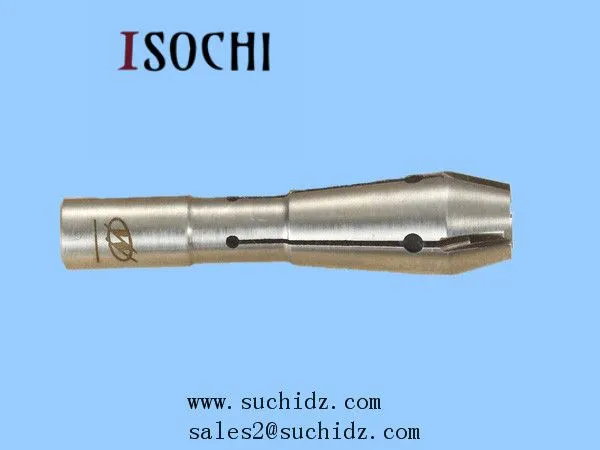

High Precision Westwind collet 17593 for D1331 Schmoll
| Item name: | 17593 Spindle Collet |
| Brand: | ISOCHI |
| Material: | Stainless steel |
| Product Status | in stock |
What is collet?
Collet is a key important spare part of PCB spindle, quality control is very strictly, longer use life is your priority choice.
We offer a range of spare collets, precision matched to nearly one hundred kinds of spindles in PCB industry . According to the different applications, there are collet for PCB Drilling Machine spindle, for PCB Routing Machine Spindle and the Auxiliary collet. Using ISOCHI collets will enhance the performance of your spindle and extend their working life.
Specifications:
| Collet list and application spindle | ||
| Model | PN | Application other Spindle |
| D1331-17 | 17593;17809;20924 | D1201-02 ,06 ,19 , 20 ,21 ,33 ,34 |
| D1263-03 ,04 ,06 ,07 ,08 ,09 , | ||
| D1199-03 ,D1210 ,ABW110 | ||
| 1531-01 ,02 ,04 ,06 ,09 , | ||
| 1331-01 ,02 ,03 ,07 ,08 ,09 ,10 , 13 | ||
| D1331-17 ,19 ,20 ,21 ,24 ,27 ,28 ,38 | ||
| D1331-26 | 38431;34381 | D1404 ,D1502 ,D1686-01 ,02 ,03 ,04 |
| 1331-25 ,26 ,29 ,31 | ||
| D1331-36 | 38730 | D1331-36 |
| D1331-41 | 37462 | 1331-08,30,32,41,42,44,D1201 |
| 1531-08 ,SM170 , MCT150 ,160 ,170 | ||
| D1331-47 | 41928 | 1331-22 ,1331-47 |
| D1331-49 | 41611 | 1331-49 ,48 ,51 |
| D1686 | 40374 | D1686-10 ,11 ,12 ,13 ,15 ,16 ,18 ,19 ,23 |
| D1722-03 | 1264 ,1600 , H501 ,H512 ,1600-01 ,H516D | |
| D1769 | 41611 | 1769-06 ,10 |
| D1787 | D1787-01 ,D1787-07 | |
| D1822-01 | D1822-09 | |
| M320-24 | 11257 ; 08085A1 | D1519-01 , M320-01 ,03 ,05 ,07 ,10 ,11 ,16 ,17 |
| M320-18, 19 , 20 ,22 ,23 ,27 ,28 ,29 ,30 ,36 ,47 ,52 | ||
| M320-38 | 16194 | 1303 , M320-43 , M320-38 ,M320-55 |
| M320-64 | 16703 | M320-46,50,62,63,64,65,66 |
| M320-63A , 64A ,65A , 66A ,D1170-04,D1303-01, | ||
| D1303-02,D1524-01,02,03,04,05 | ||
| M320-64C | 39773 | M320-64C |
| H242B | H242B | |
| HR08A | HR08A | |
| H912B | ABL-125 ,ASC125 , AW125 , 127480 ,88288 | |
| H916A3 | H916A3 , H916A | |
| H916C | 143480 | H916B |
| H920B | AW160-08 , AW160 , H920A | |
| H920E1 | H920E1 | |
| ABWR80 | 17508 ; 216844-10 , | 1251-03,ABWR80,M320-60,ABW80 |
| ABW125 | 41844;414741-01 | D1199-06,10,ABW125,ABW-170,D1473-07 |
| SC-53 | 53533;033503 | SC-53 |
| SC-63 | 63503 | SC-63 |
| SC-3163 | 263508 ; 263506; 263504 | SC-3263,HB60B,61B,HB60D,RA-60,KL-60B |
| W-62 | 40508518 | W-62 |
| W-69 | 230505 | W-69 |
| HB50B | 230504 | HB50 |
| 168 | 168 | |
| SM-220 | MCT220 | |
| AB200 | AB200 | |
| SFA2300 | SFA2300 | |
| More than above models can offered please contact us for details. | ||
Collet Maintenance:
Collet Maintenance - How Often?
It is important to carry out regular collet maintenance to ensure excellent performance and long life from your spindles.
ISOCHI suggest the following maintenance intervals:-
Removable collets every 100 operating hours
Bonded collets every 24 operating hours
The actual frequency of collet maintenance is dependent on application, usage and environment, and could be shorter or longer than the times suggested above.
Please contact ISOCHI if you would like advice on your particular situation.
Spindle models with removable Collet:
M320, D1199, D1201, D1251, D1263, D1303, D1331,
D1473, D1524, D1531, D1686, D1750, D1823-02R
Spindle models with bonded Collet:
D1080, D1264, D1600, D1686, D1722, D1748, D1733,
D1787, D1790, D1795, D1812, D1822, D1823-01
Removable Collet Types:
Removable Collet are either “dead stop” or “positive lock” type.
The “dead stop” type can be identified by a groove around the rear barrel of the collet.
Please ensure you use the correct maintenance instructions.
Bonded Collet – Do not remove the collet
Our company:
KUNSHAN SOCHI ELECTRONICS CO.,LTD
We is a combo of manufacting and exporting.
Main service targets:
1.Automotive electronics.
2.Semiconductor.
3.PCB industry customers.
1.PCB CNC drilling machine and routing machine
2.Parts and accessories for PCB machine(collet/chuck,spindle,air cylinder,sensor,tool change,etc.)
3.Manufacturing and processing for automobile molds and parts.
4..Custom-made is available
FAQ:
Q: What is your advantages?
A: We can offer you high accuracy high durability stainless steel drill collets at FACTORY PRICE.
Q: Are you a trading company or manufacturer?
A: We are integrated industrial and trade enterprises.
Q: How long is your delivery time ?
A: Generally it is 5-15 days if the goods are in stock, or 15-30 days if the goods are out of stock..
Q: Do you provide samples? is it free or extra ?
A: Yes, we can offer samples but the samples' cost and shipping cost shall be at the buyer's charge
Q: What's your package?
A: Plastic bay + packing box. Set product have special kit box.
Q.How to control the quality of your product?
A: We have our own perfect testing equipment and sophisticated detection personnel.
