semi-automatic pneumatic metal tube cutter machine
Main features:
1.A best sharp weapon of cutting pipe:it's equipped with the automatic and automatic feeder,in addition to basic type of structure and accessories.clamp and machine head inter and back all for air-pressure automatic type.
2.Hairless side/have no dust:adopt two sides and two directilons clamp,which makes the tangent plane smooth and hairless,while sawing low noise,low pollution.
3.Accurate/fast/clean:cut precision and speed to exceed band saw and bow ,in the meantime,target plane is smooth and clean,don't hace fever ,save to process twice.
4.Angular cut or milling groove:machine head can be adjusted to the left and right for angular cut or milling groove,the angle is accurate,pipe interface is perfect and save time.
5.Cooling:circulate cooling system and super large capabiltty of oil tank,which insure the life of the saw blade,tangent plane is neat.
6.Hyraulic system---- optional
Parameters:
| Model | JC-325-2A | ||
| Head rotating angle | 90° | 45° | |
| Cutting capacity area | Solid bar | 55mm | 45mm |
| Round tube | 110mm | 110mm | |
| Angle steel | 100×100mm | 90×90mm | |
| Square tube | 95×95mm | 95×95mm | |
| Through-shaped steel | 100×100mm | 90×90mm | |
| Retangular steel | 90×110mm | 90×90mm | |
| Host motor | 2.4KW/2.0KW-2/4P | ||
| Spindle speed | RPM100/50 | ||
| Cooling pump | 1/8HP | ||
| Compressed Air pressure | 4-6kg/cm2 | ||
| Saw blade(Diameter) | 250mm-350mm | ||
| Feeding length | 3-650mm(Standard),can feed three times,total 1950mm | ||
| Machine weight(KG) | 240KG | ||
| Machine size(L×W×H) | 1000×850×1420mm | ||
| Standard fittings | HSS Saw blade 275mm | ||
| HSS Saw blade ,One scale,one tool box ,One set of clamping module | |||

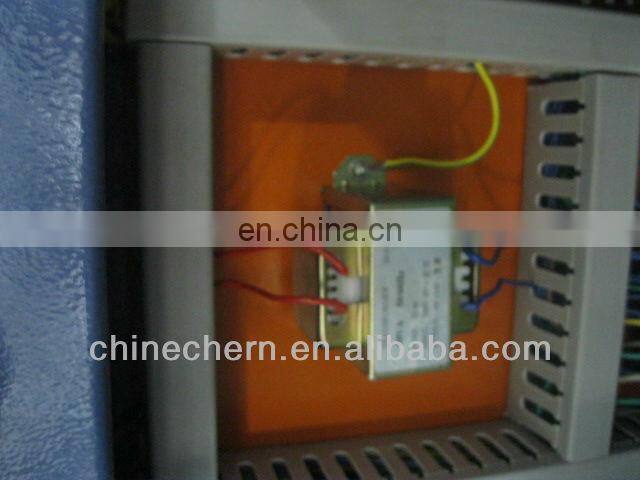

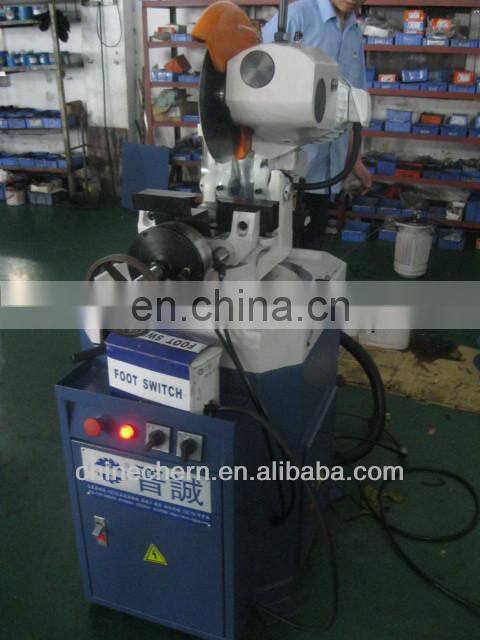

Machine photo and package:
