Product Details
Brand Name: | Chine Chern | Model Number: | CNC-400 |
Product Description
Mild Steel Pipe/Carbon Steel Pipe Automatic Cutting Machine
Main Features:
- Vertical slideway for advance and retreat blade up and down cutting feed steady and cutting tools are of long use life. High precision of saw cutting.
- European design. Multiple group of gear transmission is suitable to heavy cutting with steady precision.
- Elaborate design of material feed system. The length of feed material can be set as 6-640m/mz(material feed can be divided into 3 times)
- Elaborate design of material feed floating system so as not to damaged the surface of work piece and with high precision of material feed.
- Main clamp design specially, the strength is solid.
- Slide way automatically add oil for lubricating, long use life of machine.
- TaiWan PLC controller, no connected point, no fault and easy to maintenance.
- Cooling liquid automatic circulation to secure the cutting surface smoothness
- Equipped with electric saw protection device. Equipped with electric saw cutting number setting and total number.
- Stop automatically when no material.
- Saw piece are centralized for disposal which is convenient and clean.
- It is suitable for cutting stainless steel pipe,Carbon steel pipe,Steel pipe ,Iron pipe and so on
Parameters:

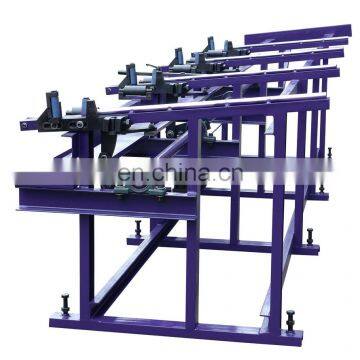

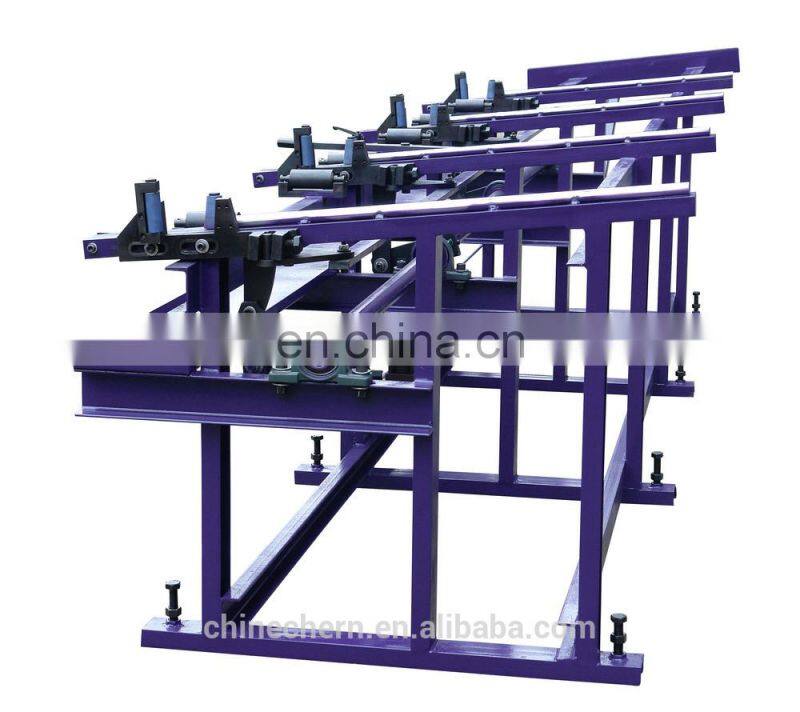

Model | CNC-400(Including 6M auto feeding rack) | ||||||
Cutting angle | 90° | ||||||
Hollow round tube | 125mm | ||||||
Square tube | 125mm×125mm | ||||||
Rectangular tube | 160mm×100mm | ||||||
Solid bar | 50mm | ||||||
Solid square bar | 75mm×75mm | ||||||
Host Motor | 4.5KW-5.5KW 3.3-4KW 2/4Poles | ||||||
Spindle speed | 72/36RPM or as per materials | ||||||
Cooling pump | 1/8HP Motor Automatic cycle cooling | ||||||
Hydraulic motor | 2.2LW/4Poles double oil pump work pressure 25-35kg/cm2 | ||||||
Saw blade O.D | HSS Saw blade ¢250mm-¢400mm bore ¢ 32mm | ||||||
Control mode | 7'' touch screen | ||||||
Voltage | 3-phase 380V 50HZ Or as per the request | ||||||
Feeding length | Standard: 6mm-640mm*1-3times It can cycle feed three times ,the longest is 1920mm | ||||||
Lengthening: 6mm-1000mm*1-3times,the max length is 3000mm | |||||||
Machine size | L2700*W1100*H1950mm | ||||||
Machine weight | 1500kg | ||||||
Standard fittings | One piece HSS sawblade,One tool box and one set of clamp mould |

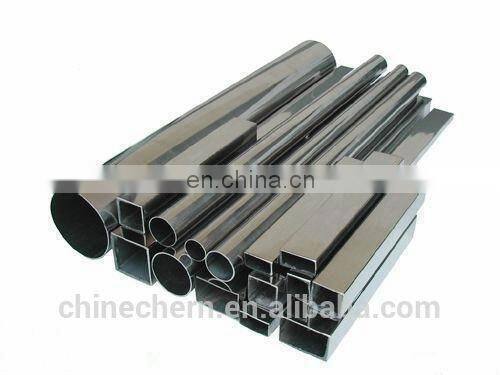

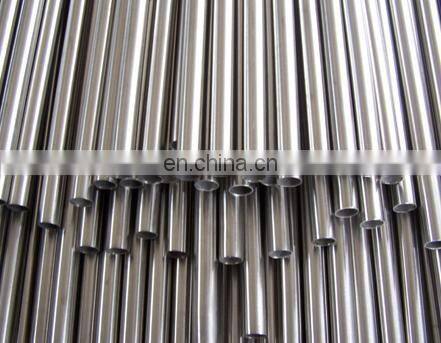

Metal Pipes :

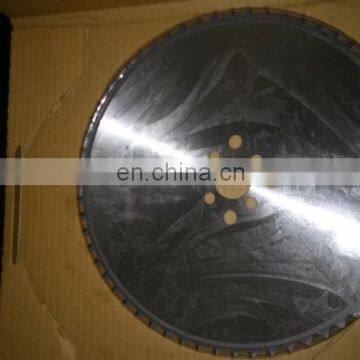

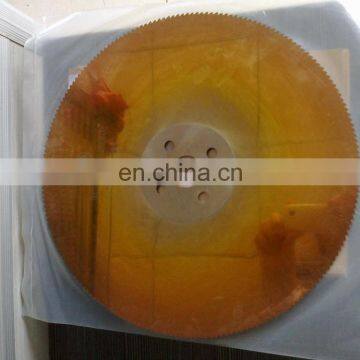

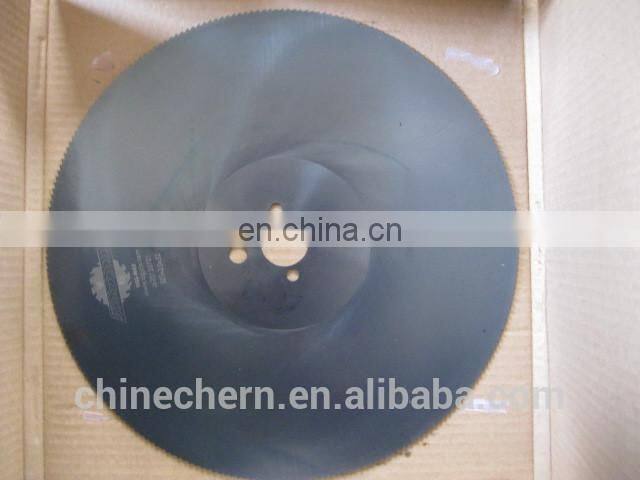

HSS Saw Blade :

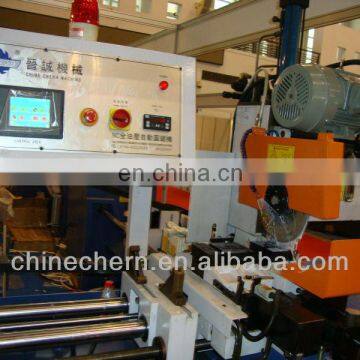

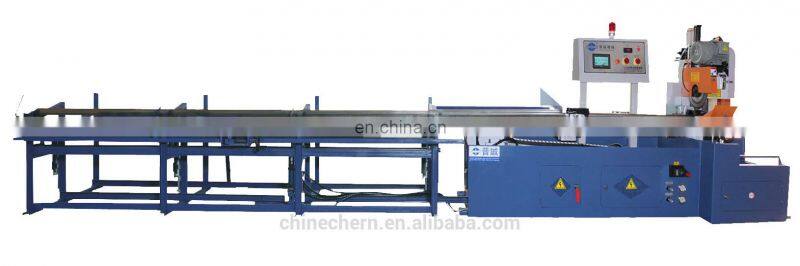

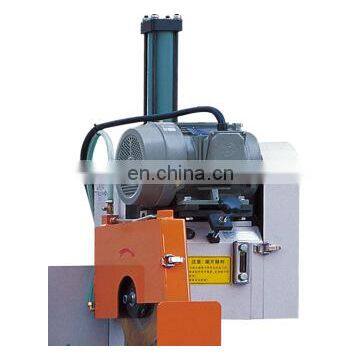

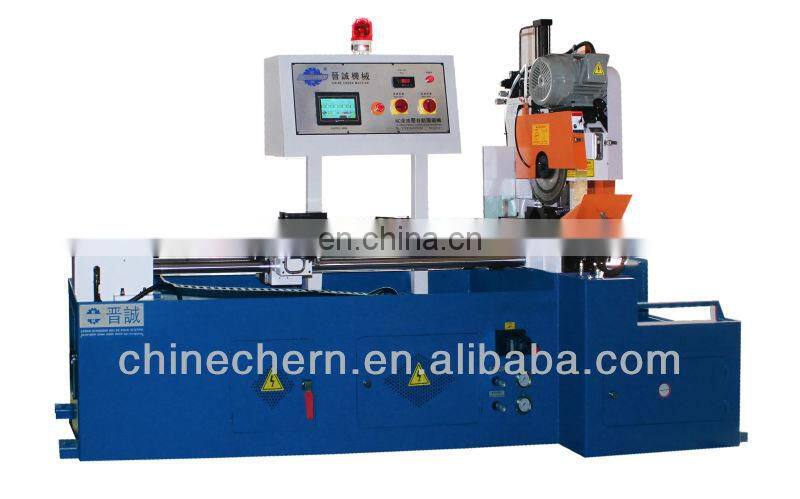

Machine Picture :
Certificate :
Company Profiles :
with decades hard work and accumulated experiences, We have acquired fourty invention
patent,Utility model and appearance patent.Meanwhile, We have passed ISO9001:2008 quality system certificate, Government-issued Guangdong Province private technology enterprises, high-
tech enterprises, private enterprises and other honors.
The products include Super hard metal bar cold saw machine series, Chipless metal pipes circular saw machine series,Copper aluminum non-ferrous high-speed precision circular saw machine series,Metal pipe/bar end chamfer machine series,Circular saw blade sharpening machine series,Automatic pipe bending and forming Machine series , Six categories eighty models , Also provide customized complex process
Machine , all kinds of circular saw blade . Wide Application range contains Nautical
aviation and aerospace industry, military industry, high-speed rail and rail transportation
industry, auto industry, precision parts, medical and fitness equipment industry, mechanical and electrical and electronic industry, lighting and furniture decoration forty industries .
