1. Burr free & less dust: self-centering vise with two sides clamping to solidly hold the work piece and ensure a smooth and burr free cutting surface. Low operation noise and low pollution working environment.
2. Fast, precision & clean: compared to band sawing, circular sawing is much more economical, faster in cutting, more precise, and cleaner.
3. Mitre cutting: the saw head can be swiveled either direction at various degrees for mitre cutting, providing excellent precision in angle accuracy.
Technical Parameter:
JC-275-A | |||
Model | Specification | ||
Head swivel | 90° | 45° | |
Cutting range | soild bar | 38mm | 30mm |
tube | 85mm | 75mm | |
angle steel | 75*75mm | 50*50mm | |
square tube | 75*75mm | 75*75mm | |
trough-sharped steel | 75*75mm | 50*50mm | |
rectanglar steel | 75*90mm | 75*60mm | |
host motor | 2.4kw/2.0kw-2-4p | ||
cutting speed | RPM120/60 | ||
cooling pump | 1/8HP | ||
required air pressure | 4-6kgs/cm2 | ||
suitable sawblade | 250-300mm | ||
feeding length | 3-650mm,max1950mm | ||

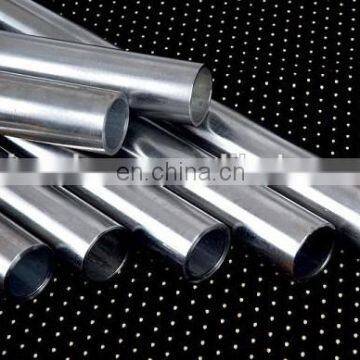

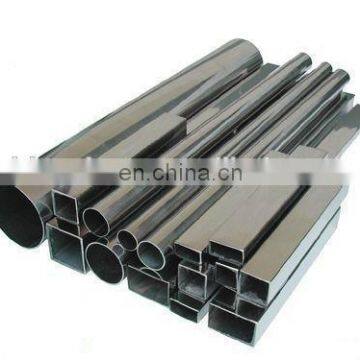

Sample:
Packaging:1.Standard export packing 2.Splint pallet
3.Plywood packae4.Customized
Shipping :The professional transportation team is responsible for delivering goods.
1.Sample services:cutting sample with free
2.Customized:sawblade ,clamping apparatus,packing,ect.
3.After-sale services:deliver goods and install ,training an operator,free warranty for one year and maintenance for lifetime.
Chine Chern Machinery Manufacturing Enterprise is a manufacturing company withmore than 20 years manufacturing experience and we are dealing in series ofprecision metal circular saw machine,Round pipe /Bar chamfer machine ,Pipe bending machine and forming machine, sawblade sharpening machine. We have partnered with leading operators and manufacturers in the industry, including BYD and some other famous customers at home and abroad. We also set up our branch office in Taiwan. In addition, and we are authorized by Taiwan Eyan Machine Tool to be their main distributor in China.
Company show:
Certificates:
If you have any idea about it ,please feel free to contact with us through my TradeManager or Email and all your concerns will be received to close attention and prompt reply!
