DW50CNC automatic cnc 3d bending machine with mandrel
- 30 Set / Sets per Month
- Shanghai China
- T/T Credit Card
You May Like
-
DW63CNC Single stack hydraulic pipe bending machine with ball mandrel popular for automobile parts
-
SW38A Double Head Hydraulic Pipe Bender Tube Bending Machine for max pipe 1.5"
-
SW38A Rotating type double side tube bender machine for steel furniture making
-
Vertical type hydraulic 3 roll tube bending machine for big radius
-
DW75CNC China hydraulic cnc pipe bender machine, used tube bending machines for sale, square pipe bending machine
-
SW38A double ends bending machine popular for school table and chair
Product Details
Brand Name | CARE | Model Number | DW50CNC automatic cnc 3d bending machine |
Product Description
DW50CNC automatic cnc 3d bending machine with mandrel
Adapted material:steel pipe, stainless steel, copper pipe, aluminum pipe etc.
Recommended application industry:
automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on.
Main specification
1. Interactive PLC touch screen offers easy access to auto and manual operating modes.
2. System diagnostics and multiple language capability.
3. Standard clockwise bending direction.
4. Fully hydraulic clamping on clamp die and pressure die.
5. Drop-way hydraulic clamping.
6. Direct acting hydraulic pressure die with adjustable speed valve.
7. Maximum 500 sets of program storage,Maximum 32 bends for each program.
8. With Independent programmable speeds Y, B, and C axes.
9. Programmable material spring back settings for each bend angle.
10. Automatic release of tube prior to final bend.
11. Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.
12. Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
13. Foot Pedal Cycle start.
14. With Air Cooling System.
15. One set of Tooling for Draw Bending.
16. Wiper die Bracket.
17. 1 Mandrel Rod.
18. Operation and Maintenance Manual.
19. Tool Box with Adjusted Tools.
20. Electric: As required
Technical parameter
Program | DW50CNC | |
Max bending R for carbon pipe is 1.5D | Ø50.8X 2.5t | |
Max bending R for s.s pipe is 1.5D | Ø44.4X 1.5t | |
Availability Length of bending pipe | 2850mm | |
Max R for bending | 220mm | |
Max angle for bending | 185° | |
Bending process for every pipe | 16 | |
Working rate | Bend rate | Ma×25°/sec |
Rotary rate | Ma×180°/sec | |
Feeding rate | Ma×700mm/sec | |
Working accuracy | Bend angle | ±0.1° |
Rotary angle | ±0.1° | |
Feeding length | ±0.1mm | |
Watt of oil press electrical machine | 14mpa | |
Information inputting method | Axis (Y,B,C) | |
Bending method | Hydraulic | |
Max bending group | 500 | |
Power of rotary Servo motor | 400 W | |
Power of feeding Servo motor | 1300 W | |
Electrical motor power | 5.5kw | |
Weight of machine | 2500kg | |
Size L W H(CM) | 430X80X115 |

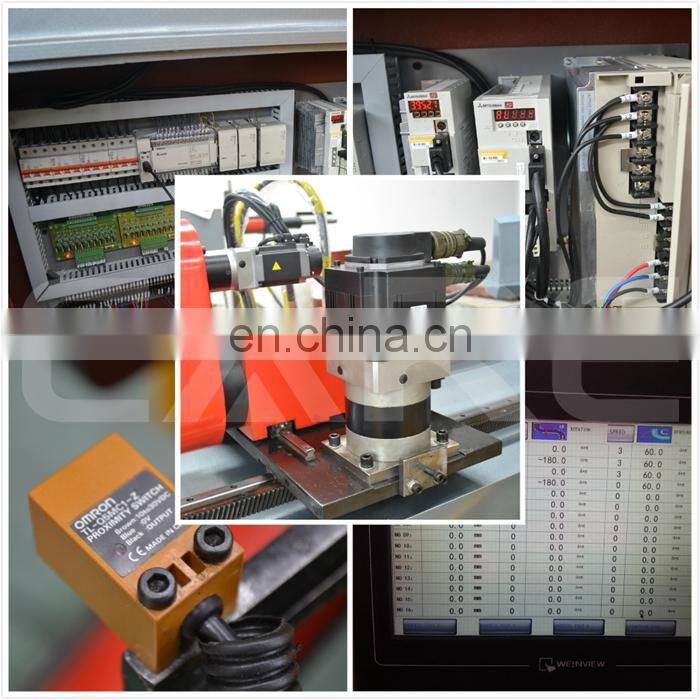

Machine photo

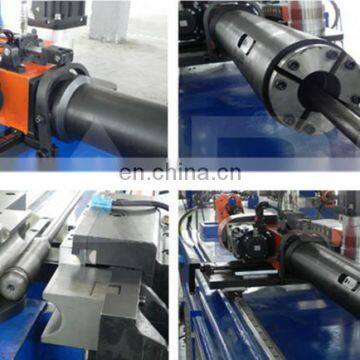

Standard tool: 45# steel
Optional tool: Cr12 material
Stainless steel pipe: mandrel & wiper- Aluminum copper alloy steel
Aluminum pipe: bend die, clamp die and pressure die - nylon material

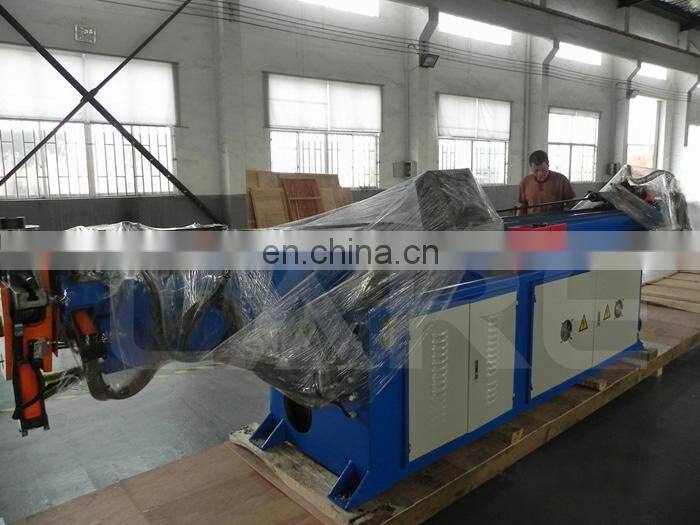

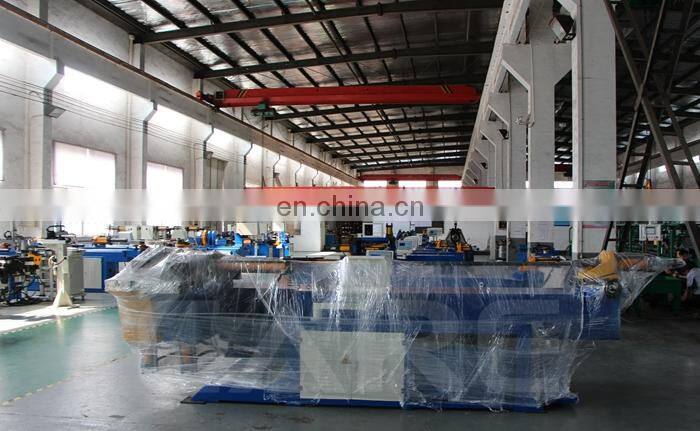

Machine delivery

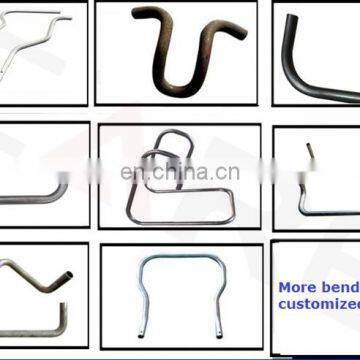

Pipe samples
To know more information, please contact us.
