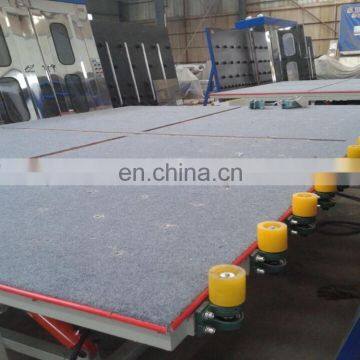

Air float glass tilting cutting table
1.Function:

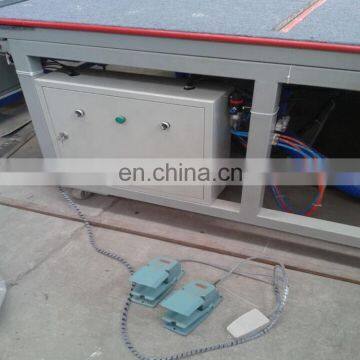

The tilting air flotation table is composed of air flotation table, “+” straight rod, air blower, air cylinder, hydraulic pressure station, electric cabinet, foot switch, etc. So it can tilt to pick up glass sheets from vertical position to horizontal position. On the working table, we can cut glass into pieces by hands. When splitting, put the cutting score of glass onto the middle part of the straight rod of the table, and close the air cushion, step the foot pedal down. The straight rod will be pushed upwards by the cylinder to break out the glass instantaneously. The table can break out glass in many positions, reducing the intensity of labor.
2. Main Technical Parameter:
Max. glass size: 2440*3660mm
Glass thickness: 3-19mm
Power rate: 4.5kw
Air Blower:2pcs
Foot switch: 2pcs
Hydraulic Pressure Station: 1pc

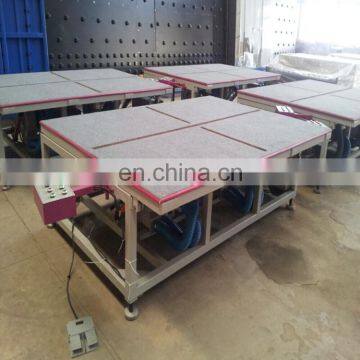

3.Other titling table for your reference:
3.Note:
Payment: Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.
Package: Each PC in wooden cases.
Port of Loading: Qingdao, China
Delivery Time: During 20-35 days after we receive your first payment.
4.Contact Information:
Lisa Jiang
Mobile:0086-13964014791
Wechat/whatsapp:+8613964014791
Skype:jnsunny_jiang
GOOD Quality, GOOD SERVICE IS AVAILABLE, ANY INQUIRY FROM YOU WILL BE APPRECIATED.
