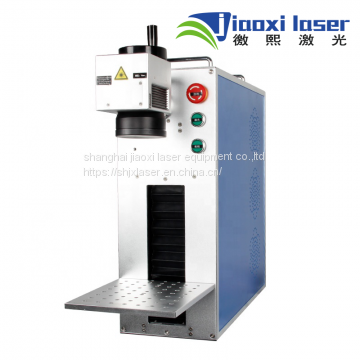

Help Center30W Protable Fiber Laser Marking Machine For Metal, Watches, Camera, Auto Parts, Buckles
Related Products
-
High Speed 20W Desktop Fiber Laser Marking Machine for Metal and Non MetalUS$ 2500 - 5000MOQ: 1 Set -
High Speed 30W Desktop Fiber Laser Marking Machine for Metal and Non MetalUS$ 2500 - 5000MOQ: 1 Set
-
High Speed 20W Handheld Fiber Laser Marking Machine for Metal and Non MetalUS$ 2500 - 5000MOQ: 1 Set
-
High Speed 30W Handheld Fiber Laser Marking Machine for Metal and Non MetalUS$ 2500 - 5000MOQ: 1 Set
-
High Speed 20W Split Type Fiber Laser Marking Machine for Metal and Non MetalUS$ 2500 - 5000MOQ: 1 Set
Laser marking machines use laser beams to mark permanent surfaces of various subst-ances.The effect of the marking is to reveal the deep material through the evaporation of the surface material, thus engrave the exquisite designs, trademarks and texts, it can be used for marking logo, serial number, bar code and other beautiful patterns.
Our laser marking machine adopts the best quality fiber laser source in the world. The estimated life for laser source will be around 100,000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.
Technical parameters | |
Laser Type | Fiber laser |
Laser Power | 20W 30W 50W 70W 100W |
Model | JX-DTBX-Y20/30/50/70/100 |
Laser Wavelength | 1064nm |
Marking Area | 75*75mm 110*110mm 150mm*150mm 175mm*175mm 200*200mm 300*300mm |
Marking Depth | ≤1.2mm |
Marking Speed | 10000mm/s |
Minimum Line Width | 0.012mm |
Minimum Character | 0.15mm |
Repeated Precision | ±0.003mm |
Life-span of Fiber Laser Module | 100 000hours |
Beam Quality | M2 <1.5 |
Focus Spot Diameter | <0.01mm |
Output Power of Laser | 10%~100% continuously to be adjusted |
System Operation Environment | Windows XP / W7--32/64bits / W8--32/64bits |
Cooling Mode | Air cooling--Built-in |
Temperature of Operation Environment | 15℃~35℃ |
Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
Power Requirement | <400W |
Communication Interface | USB |
Machine Dimension/after package | 760*680*770mm |
Net Weight/gross weight | 70/100kg |
Optional | Rotary Device, Moving Table, other customized Automation |
Application Materials
Fiber laser marking machine is suitable for working with most metal marking applications
such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Iitanium etc, and can also mark on many non-metal materials,such as ABS, Nylon, PES, PVC, Makrolon.
Applicable industries
Phone keys, plastic translucent keys, electronic components, integrated circuits(IC),
electrical appliances, buckles cookware, stainless steel products and other industries.
