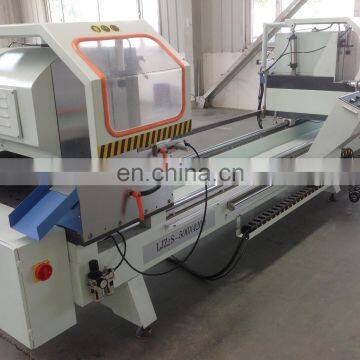

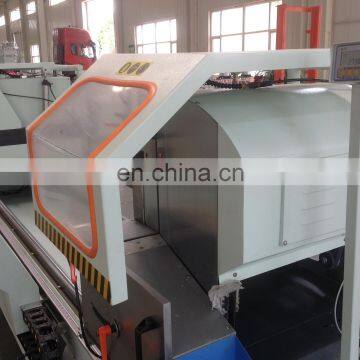

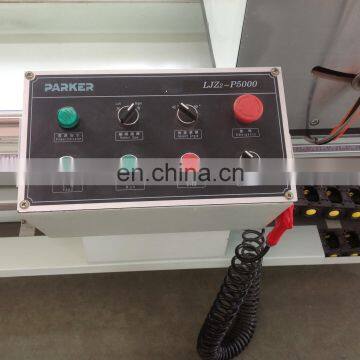

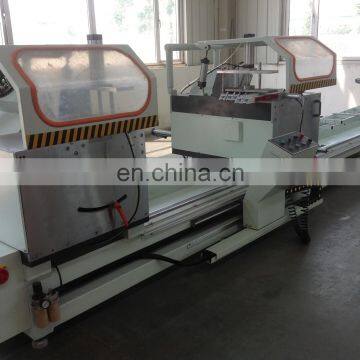

Aluminum and PVC Window Profiles Double Head Cutting Saw With CE Certificate

Aluminum and PVC Window Profiles Double Head Cutting Saw With CE Certificate photo-1
Aluminum and PVC Window Profiles Double Head Cutting Saw With CE Certificate photo-2
Aluminum and PVC Window Profiles Double Head Cutting Saw With CE Certificate photo-3
Aluminum and PVC Window Profiles Double Head Cutting Saw With CE Certificate photo-4
Aluminum and PVC Window Profiles Double Head Cutting Saw With CE Certificate photo-5
Aluminum and PVC Window Profiles Double Head Cutting Saw With CE Certificate photo-6
US$ 10,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
After-sales Service Provided:
Overseas service center available
Payment & Shipping
Payment Methods:
Port of Shipment:
as requested ( FOB / CIF / C&F )
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
After-sales Service Provided Overseas service center available

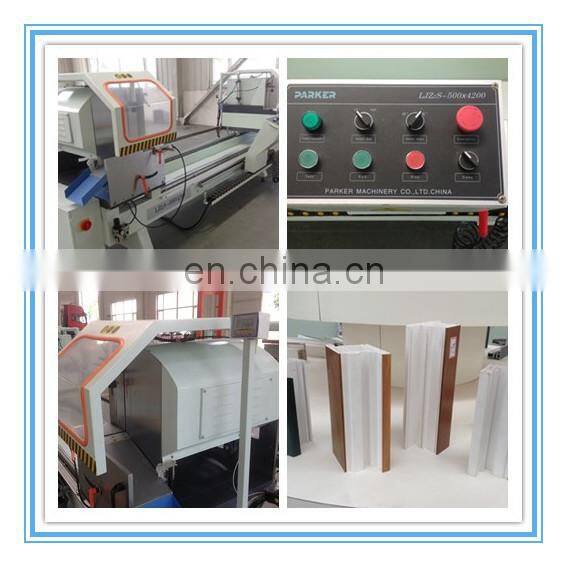

                                 aluminum and PVC window profiles double head cutting saw with CE certificate

aluminum and PVC window profiles double head cutting saw with CE certificate

Model: LJZ2-500×4200

Feature:

  • LJZ2-500X4200 is used for cutting of aluminium, pvc and curtain wall profile. The imported special hard-metal saw features the high precision and efficiency for cutting alu-alloy doors and windows. And the cutting precision has reached the advanced level in the world. The hi-precision main shaft makes the saw stable and the surface smooth. The gas-liquid damping cylinder realizes smooth feeding and steady moving.
  • The automatically opening and closing protecting cover makes the operation safe and easy. The moving heads adopt imported linear bearing motion pair, and they features high precision.
  • he moving feeder can efficiently locate the profile, and making the clamping easy and reliable. With the large saws and long structures, the saw has large cutting range.

Parameters:

  • Voltage:

380V 50HZ

  • Power:

4.4KW

  • Air pressure:

0.5-0.8MPa

  • Air consumption:

200L/min

  • Blade specification:

500*30*4.4mm(standard size)

  • Cutting length:

400mm-4200mm

  • Cutting width:

Max.135mm

  • Cutting height:

Max.300mm

  • Cutting angle:

45° , 67.5 ,   90°

  • Angle error

+/-4’

  • Repeat locating length error:

+/-0.2mm

  • Surface plainness:

+/-0.1mm

  • Surface roughness:

Ra12.5 Um

  • Overall dimension:

5500mmX1750mmX1990mm
