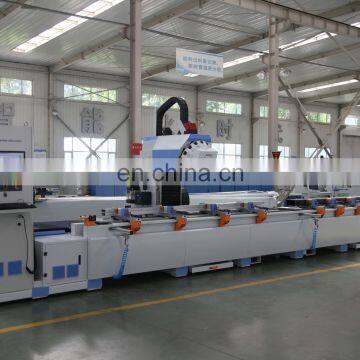

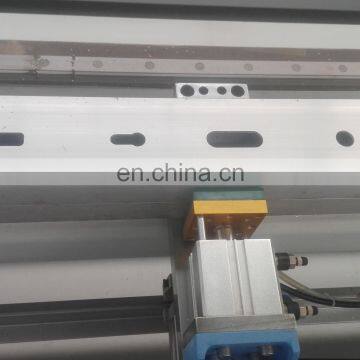

Jinan Parker Aluminum Profile Curtain Wall CNC Processing Center

Product Application

Model: DMCC3

Features:

 It is used for window-door, curtain wall, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, industrial aluminum, nonferrous metal and light section steel structure and other processing for drilling, milling and other list of processing.

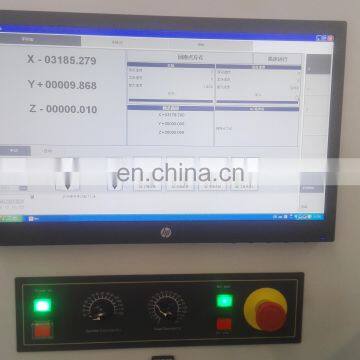

 The full set is servo motor control system, and use OMRON brand, technique can make sure quality. Equipped with professional CAM Processing software and intuitive programming system enables easy visualization of complex processing.

 Designed the moving work table for material, and moving box.

 The list of processing about drilling, milling, tapping into one clamping.

 The body is welding by steel tube with high quality and be processed by scratch push, so it is stability and strong steel.

 Ball screw from ABBA, HIWIN from Taiwan, UUC rack from Taiwan keep high precision.

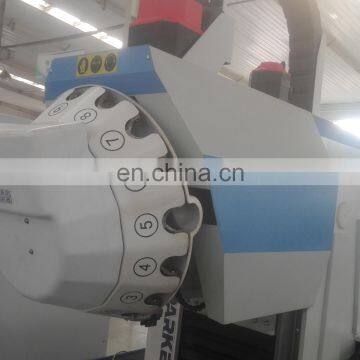

Using large-capacity tool magazine turret from Taiwan enhanced the efficiency of automatic tool changing. The max diameter is 16mm , the min diameter is 4mm, it could process the profile of 20mm.

 Double location design, the machine goes on working when feeding profiles interactively, which makes the equipment improve efficiency greatly.

 Power of continuing function, the machine can go on processing when the power is get through. Linked speed(processing, interpolation) can get to 1000mm/min

 It is equipped with lock tool apron, which makes it convenient to change the cutters.

 All the components adopt batch-type feed system, central lubrication; the cutters adopt freezing spray system to cooling, which can improve the life and working depth of work piece.

 The cutters adopt Accue-Lube which is semi-open type cooling system in America. This is EHS.

 Use plant oil to spray, lubricate once half on hour.

 There is safe photo electricity protection screen in the front of the machine, equipped with the location of machine head detection, the location of operators detection to insure the safe of operators.

Parameter:

 Voltage: 380V 50HZ

 Total Power: 13KW

 Location error: ±0.05mm

 Resetting error: ±0.02mm

 Processing error: ±0.1mm

 Surface roughness: Ra12.5um

 X axis: 7070mm

 X axis running speed: 48m/min

 Y axis: 40mm
 Y axis running speed: 48m/min

 Z axis: 572mm

 Z axis running speed: 20m/min

 Overall dimension: 10000mm x2300mm x 2800mm

Machine Parts

Name: SOFT WARE

Brand: PA

Original: Germany

Main Features

Name: SPINDLE
Original: ITALY

Machine Parts

Name: DRIVER
Brand: OMRON
Original: JAPANA

Main Features

Name: OPERATION TABLE
Brand: PARKER
