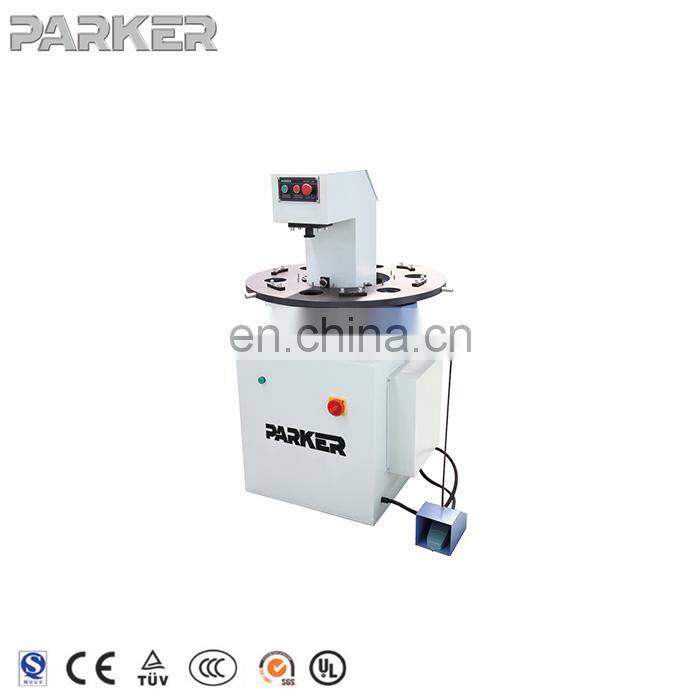

Lock Hole Punch Machine Aluminum Window Lock Hole Punching Machine With 6 Dies
US$ 3,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
PARKER
Place of Origin:
Shandong, China
Model Number:
LLZC-50
Payment & Shipping
Payment Methods:
Port of Shipment:
any port as requirements ( FOB / CIF/ C&F )
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precision Upvc Film Window&Door Efficient Cutting Sawaluminum Profile Cutting Machine/aluminum Digital Miter SawUS$ 10,000 - 50,000MOQ: 1 Set -
FACADE Curtain Wall Window Door Making Machine Double Head Cutting SawUS$ 10,000 - 40,000MOQ: 1 Unit
-
Aluminum Window Door CNC Double Head Mitre SawUS$ 25,000 - 35,000MOQ: 1 Set
-
Aluminum CNC 3 Axis MACHINING CENTER for Building Curtain WallUS$ 99,999 - 100,000MOQ: 1
-
4 Axis CNC High Speed Curtain Wall and Window Door Drilling Milling Processing Machining CenterUS$ 20,000 - 90,000MOQ: 1 Set
Brand Name
PARKER
Place of Origin
Shandong, China
Model Number
LLZC-50
Certification
CE
After-sales Service Provided
Overseas service center available
Warranty
lifetime
Weight
500kgs
Dimension(L*W*H)
900 x 900 x1400mm
Voltage
380V 50Hz ( can change )
Condition
New
Power(W)
2.2KW
CNC or Not
Normal
Power Source
Hydraulic
lock hole punch machine aluminum window lock hole punching machine with 6 dies
Model: LLZC-50
Features:
- Used for punching processing in the manufacture of aluminium window and door.
- Every combination punching die equipped with the machine can achieve various punching process, by-changing processing position, various types profiles can be processed.

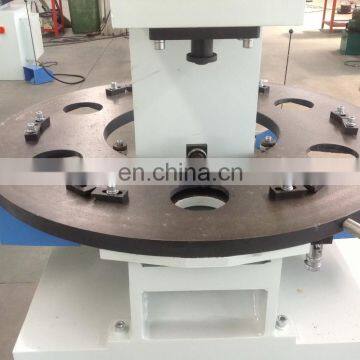

- Adopt disk worktable equipped with six dies. Each die be used at any time by the worktable rotating, which greatly increased the production efficiency
Parameter:
Item | Parameter |
Power supply | 380V 50Hz (Three phase, four wire) |
Motor supply | 2.2kw |
Rotary speed | 1420r/min |
Rated oil pump pressure | 16Mpa |
Capacity of oil box | 20L |
Rated pressure | 50KN |
Punching travel | 30mm |
Punching travel times | 30c/min |
height: | 185mm |
Overall dimension | L900mm×W900mm×H1420mm |
