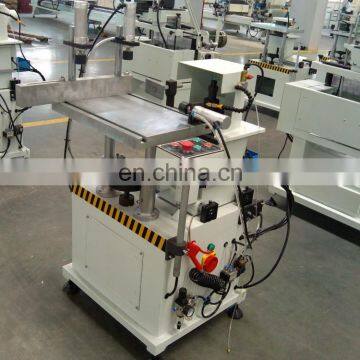

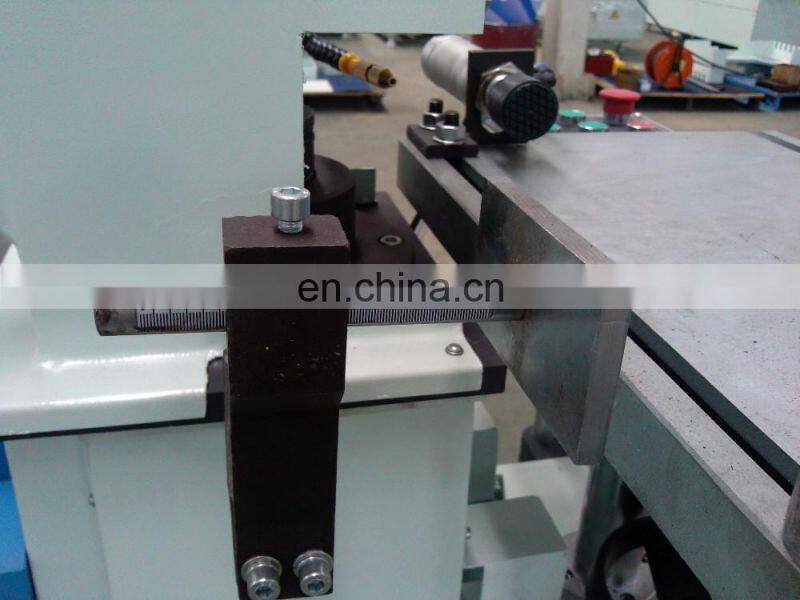

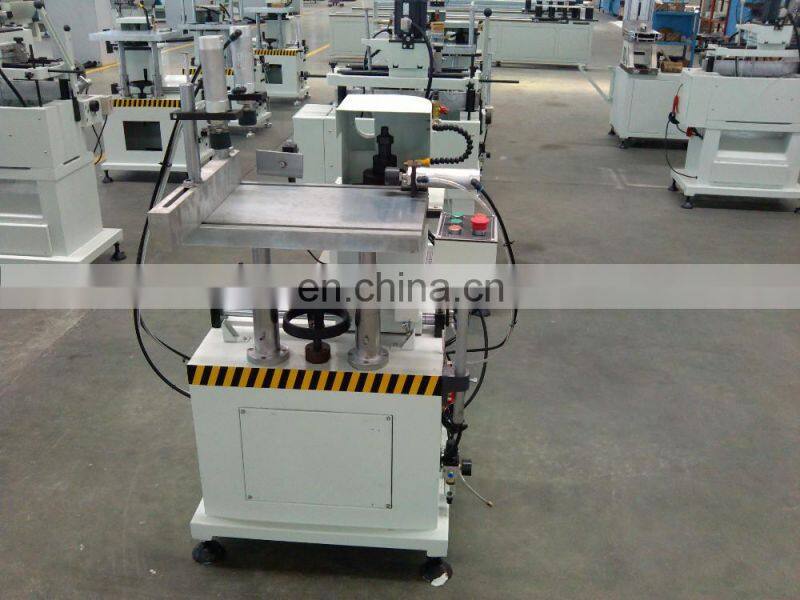

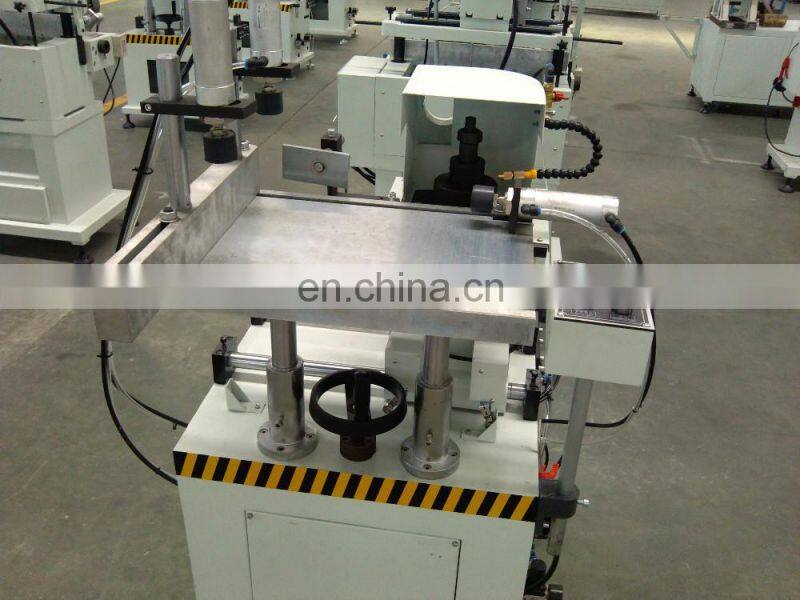

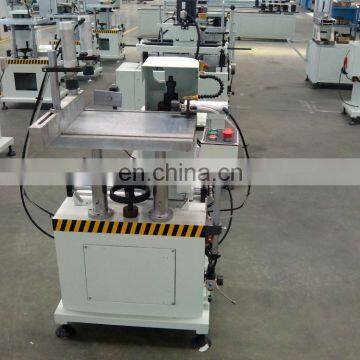

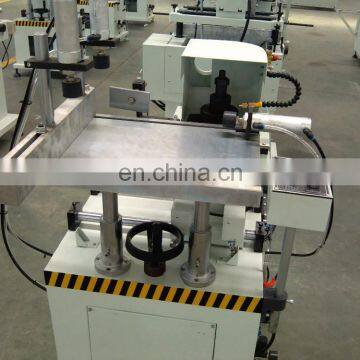

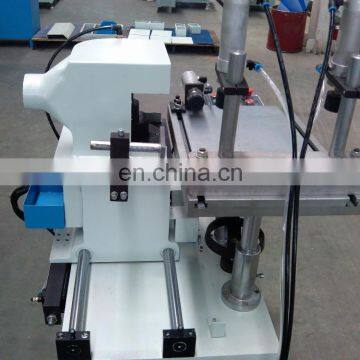

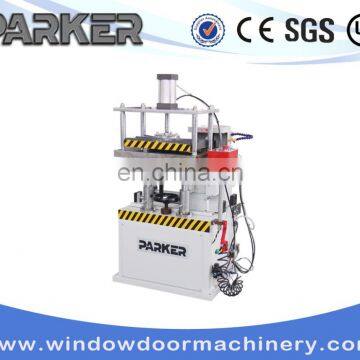

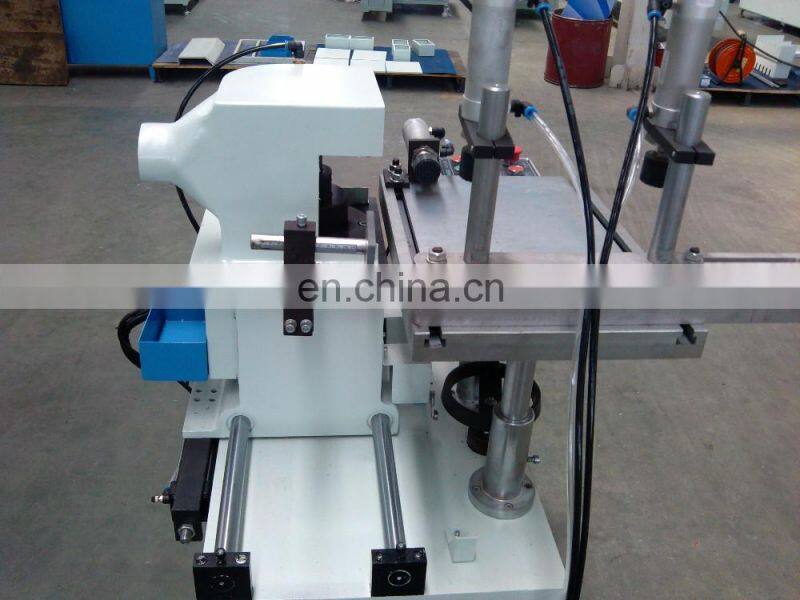

Aluminum Profile Automatic End Milling Machine for window
LDX-200 automatic aluminum profile end milling machine is mainly used for aluminum profile ending milling. This automatic end milling machine is also applied for processing step surface and end slot. The processing angle is adjustable ranging from 30° to 90°. With adjustable worktable, it is convenient for tool setting. Tool main shaft is connected by shaft coupling, thus the motor main shaft rotating accuracy can not affect the aluminum milling machine's working accuracy. Equipped with bidirectional valve, Parker automatic end milling machine can mill profiles with high efficiency.
| Model | LDX-200 Automatic End Milling Machine for Aluminum Profile |
| Harshness | Ra12.5 µ m |
| Power Supply | 380V 50 Hz (Three Phase, Four Wire) |
| Motor Power | 1.5 kW |
| Rotary Speed | 2800 rpm |
| Air Pressure | 0.5 to 0.8 Mpa |
| Max. Diameter of Milling Cutter | 200 mm |
| Max. Milling Range | 90 × 45 × 200 mm |
| Table Up-Down Travel | 0 to 80 mm |
| Overall Dimension | 700 mm × 900 mm × 1350 mm |
| Weight of Aluminum Milling Machine | 200 kg |
PARKER IS DEVELOPING WITH THE WORLD.
Parker was founded in 2003, since the entry into the window door curtain wall machinery manufacturing field, peck with the best team and most stringent manufacturing standards, has been committed to the global supply of machinery and the best service. Today, with more than 300 employees, Parker Industrial Park covers an area of 70000 square meter, Parker has become Chinese and even the world's window door curtain wall and insulating glass high-end machinery manufacturing base.
Q: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness, and working area needed, we will suggest the most suitable machine and professional solution.
Q: When can we arrange shipment?
We usually arrange shipment in 15 days after getting deposit, but customized machines should be more than 25 days.
Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare. We will send you the English version user manual and install video which shows how to assamble and use the machine clearly, almost all the customers can operate the machine easily. No need to worry about this, after all, Parker will always be here to help!
Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual. But in case you have any problem, our professional after-service team will provide you any support you need any time!
B.We can send you free components to you if your machines are in guarantee time.
C.We can send our engineers to repair your machines.
Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other different machines.
CNC machining center
Aluminum window door/ curtain wall making machine
UPVC window door making machine
Insulating glass making machine
You can send to my email directly : Carina(at)
| Contact: Carina | |
| PARKER MACHINERY CO.,LTD,CHINA | |
| Address: | 9th floor, South of No.9 Building, Shuntai Square, Hi-tech Development Zone, Jinan, Shandong, China. |
| Tel/Whatsapp: | 0086-15106958367 |
| Skype: | carina.parkermachine |
| E-Mail: | Carina (at) |
| Web. | |
| Industrial Park: | Mingjia West Road, Qihe, Shandong, China |
