plastic window welder machine/pvc machine de fabrication fenetre
Feature:

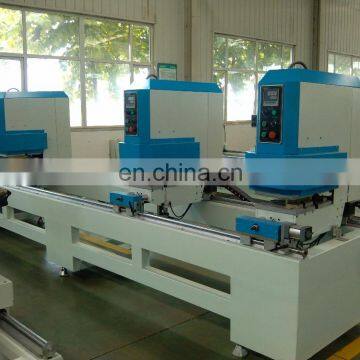

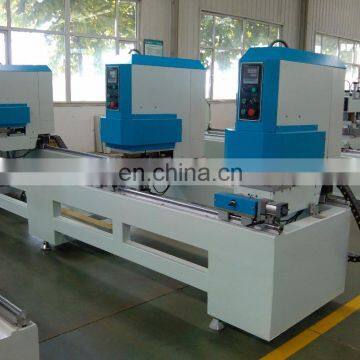

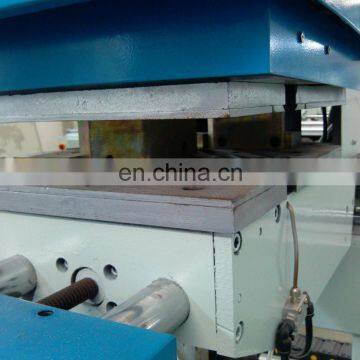

HJ04-4500 is made up of 4 machine heads, machine frame, electric control tank and material supporting fame etc. The left machine heads has horizontal moving mechanism, and move 20mm along the track with the control of the program. There are fixing mechanism, pressing mechanism, heating mechanism and head box etc. on machine head.
The machine is used for PVC window and door welding processing; it can achieve the whole welding processing individually. It features advanced technology, reliable function, and easy operation. It adopts PC control, pneumatic driving and locating. The movable stand adopts non-oil lubricating bearing and linear ball bearing that make it of high precision, easy operation, and convenient maintenance.
One of the machine heads can be used for welding processing with variable angles; it is also suitable for special shaped window welding like arch window. The 4 machine heads can be used individually, simultaneously or combinative.
It enable welding for such shapes as , is the ideal equipment for welding processing for PVC window and door.
Technical parameter:
Input power source------------------- 380V 50Hz
Total power--------------------------- 4.5KW
Working air pressure----------------- 0.5-0.8Mpa
Air consumption---------------------- 200L/min
Welding height------------------------ 20-100mm
Max welding width------------------- 120mm
Welding size--------------------------- 400-4500mm
Dimension----------------------------- 5500mm x 1000mm x 1700mm
Weight -------------------------------- 1400Kg
Parker Machinery Co., Ltd is a leading supplier and exporter of door and window making machine in China.
We mainly provide aluminum profile Machine:
1)Aluminium window door frame machine :CNC cutting machine,
2) insulating glass processing machine.
3)PVC window and door machine,
4)3Axis,4Axis CNC Drilling and Milling Machine Center curtain wall equipment, and so on.
Complying with European standards, we always purchase main parts internationally.
Our machinery has passed CE and UL certifications.
They are exported to over120Countries and regions, such as North America, East Europe and the Middle East
1)Over 13 years factory experience in this line
Parker Machinery Co.,Ltd China. who established in 2003 year,we own 13years experiences,
We have a large group of good quality with good price parts supplier: Aluminum Window Door Making Machine,PVC Window door making machine, Insulating Glass Production Line, CNC milling and drilling machine center.They are stable and very cooperated due to our big factory strength.
2)Professional/Advance Production lines with professional workers!
4 Factory shope for our product which have been get patented Invented.and 24 hours work time for our customer
3).The stable annual output
The stable output was upon the stable quality,This can only be achieved through innovative research
and developments together with decades of experience on countless brewery projects all over the world.
4).Our factory workers and service team was very powerful and professional.
We always can meet your requirements upon our tech and service.
The large group of tech and service team will meet you around 24 hours.we have our professional
5).We have our own brand “PARKER"OEM/ODM acceptable
In the past 13ears,our own brand "PARKER"have high reputation among local and abroad.
we have our agent in Europe, South America,North America and Asia,
We will search more higher agent around the globe.
