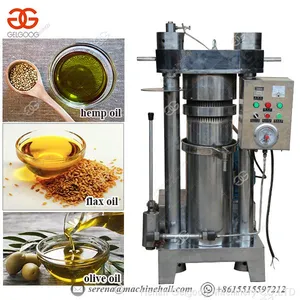

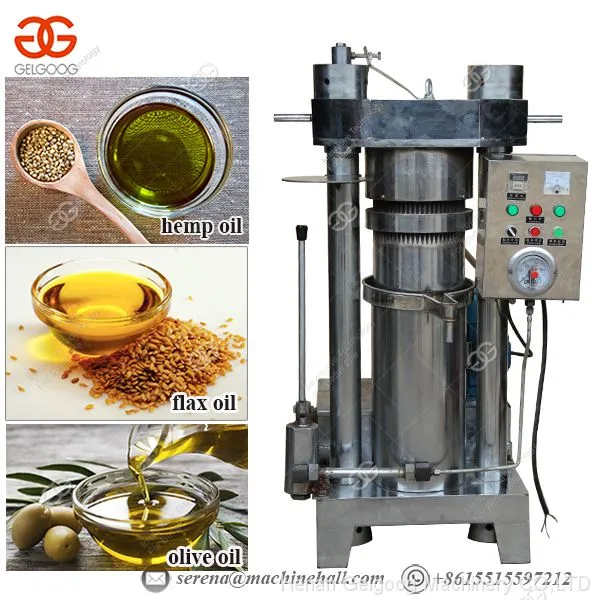

Hydraulic edible oil press and extraction machine for soya bean peanut palm olive sesame rapeseed

Standard Export Wood Pack Machinery

product description

Introduction

Hydraulic oil press, used for sesame, rapeseed and peanut crushing, light and convenient, and easy to operate. The machine is directly added to the oil drum after the hot fried oil is pressed into the oil. The process has the advantages of simple and quick process, and directly flows out the oil with pure fragrance and no oozing. It is especially suitable for users in sesame, rapeseed, peanut and other producing areas.

advantage

1. The main parts of this sesame oil machine are piston, hydraulic cylinder, column, electric heating ring and automatic temperature control device.

2. The materials are made of high-quality metal materials, which improves the performance of the machine and guarantees the service life of the parts.

3. In order to enable thousands of families to eat the pure sesame sesame oil, suitable for the needs of the market, a special oil press. The utility model has the advantages of beautiful appearance, reasonable design, one-time pressing, fast speed, high oil quality, and a hydraulic oil press which is filled with sesame oil and sesame oil.

4. The machine has high automation, simple operation and stable quality.

Material and structure of hydraulic oil press:

The main parts of hydraulic oil press include piston, hydraulic cylinder, column, movable upper beam, base, oil pump, barrel, electric heating ring and automatic temperature control device. The materials are made of high-quality metal materials to improve machine performance and ensure component life.

structure:

The whole machine of the screw press is mainly composed of three parts:

1. Main body 2. Transmission hydraulic pressure 3. Electrical control

It is now described as follows:

1. Main body part: It is composed of bottom plate, column, upper slab, squeegee assembly, oil pan, nut and other parts. It is the main body of the whole machine, in which the oil is in the squeezing assembly, the cylinder assembly The force is pushed upwards, and the oil flows down from the squeezing oil sump and passes through the oil pan to the oil storage tank.

2. Transmission hydraulic part: This is the main working power source for the production of high oil rate. It is driven by transmission shaft, worm gear, worm, gear pump, high pressure pump, overflow valve, manual control valve, cylinder assembly and pipe joint. And other parts. This machine adopts the new hydraulic pump station South Korea three-piston pump station. Compared with the domestic two-piston pump, the speed is low, the oil pressure is high, and the temperature is high. The oil temperature is above 65 degrees without cooling device, and it can work continuously.

3. Electrical control part: This is the advanced position of this machine, it consists of motor, voltmeter, temperature control adjustment table, pressure gauge, power insurance and other components.

Performance and features:

       1. This machine is small in size, small in floor space, easy to learn, easy to understand, easy to operate, and has no special requirements for operators.

       2. During the use of this machine, the power consumption is low and the various expenses are small.

       3, than stone grinding, saving power 50%.

       4. This machine belongs to hydraulic machine with high pressure, high oil yield and good oil quality.

       5. This machine adopts automatic control system, preheating temperature automatic control and hydraulic system pressure automatic control.

       6. The main components of the machine are made of imported high-quality silicon-manganese steel, equipped with CNC precision lathe and modern high-tech processing. The performance of the whole machine is good.

Precautions before starting the hydraulic oil press:

1. Clean the inside of the fuel tank and add enough hydraulic oil.

2. The hydraulic oil uses 46# hydraulic oil and is added to the parallel position with the large square pump body.

3. Check if the bolts in all parts of the pump body are loose.

4. Check if the circuit box connection is correct.
