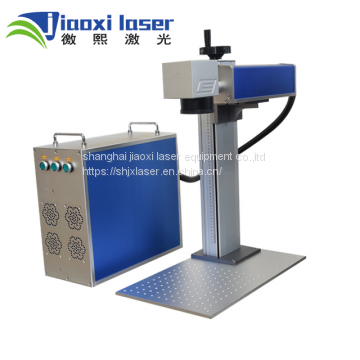

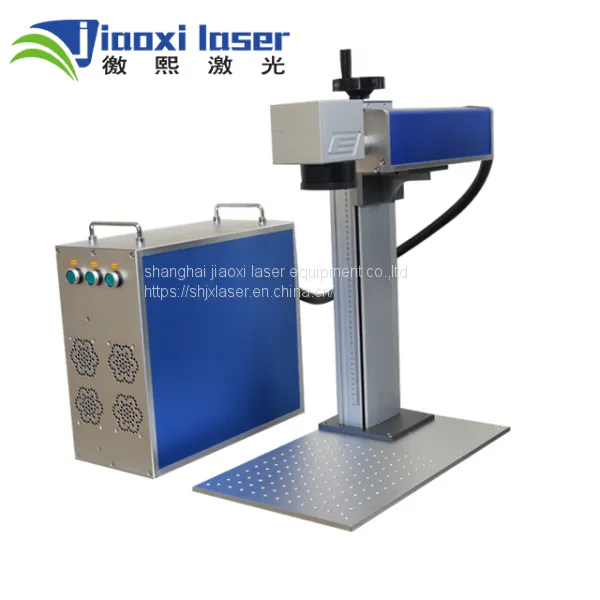

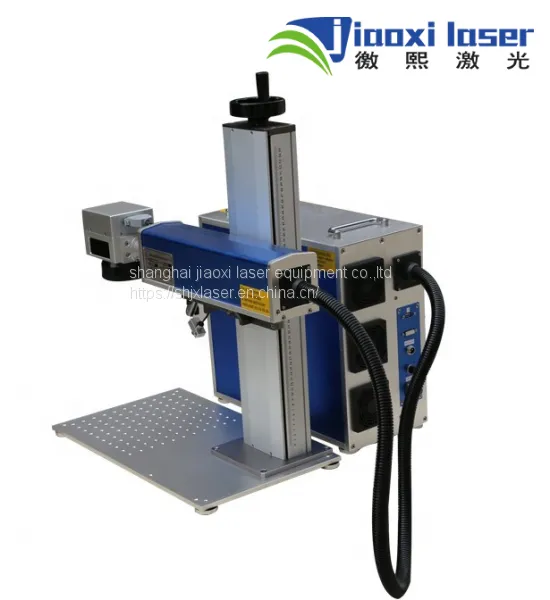

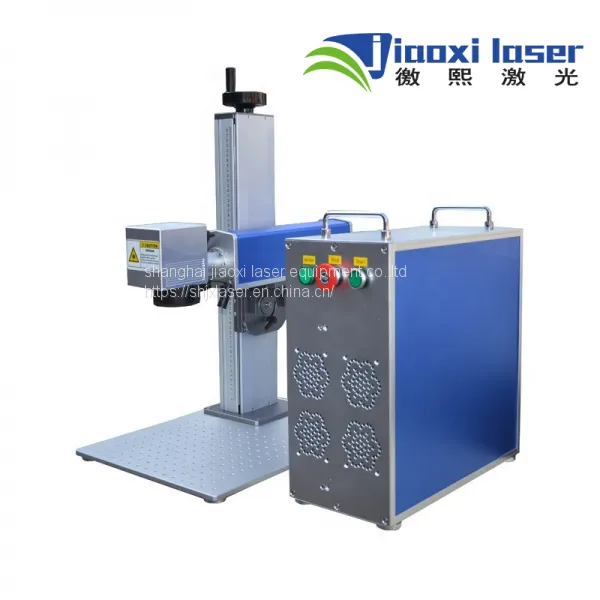

Jiaoxi 20W split type Raycus fiber laser marking machine 30w for metal printing
- 100 Set / Sets per Month
- shanghai port
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 3 days
You May Like
-
Jiaoxi 30W split type Raycus fiber laser marking machine 30w for metal printing
-
Jiaoxi 20W protable Raycus fiber laser marking machine 30w for metal printing
-
Jiaoxi 30W protable Raycus fiber laser marking machine 30w for metal printing
-
Jiaoxi 20W Metal / steel / gold / silver / logo / PCB / keyboard desktop fiber laser marking machine
-
Jiaoxi 30W Metal / steel / gold / silver / logo / PCB / keyboard desktop fiber laser marking machine
-
Jiaoxi 20W Metal / steel / gold / silver / logo / PCB / keyboard handheld fiber laser marking machine
Product Details
Brand Name | Jiaoxi | Place of Origin | China | |
Model Number | JX-FTBX-Y20 | Certification | CE, ISO, SGS | |
After-sales Service Provided | Engineers available to service machinery overseas | Condition | New | |
Power(W) | 500W | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, PLT | |
Control Software | EZCAD | Cooling Mode | Air Cooling | |
CNC or Not | No | Laser Type | Fiber Laser | |
Working Accuracy | 0.002mm |
Product Description
Product Description
1) 20W / 30W Raycus fiber laser marking machine 30w for metal printing is used for both metal and nonmetal marking. It is suitable for wood, acrylic, MDF, stainless steel ,carbon steel , iron sheet etc.
2) It is widely used for Logo marking , animal ear tag , series number ,hologram stickers marking etc.
Main Parameters
Model | JX-FTBX-Y20/30/50 |
Working area | 110*110mm, 200*200mm, 300*300mm |
Fiber laser power | Raycus / IPG: 20W / 30W / 50W etc |
Response time | 0.5ms |
Max marking depth | ≤0.4mm |
Marking speed | ≤8000mm/s |
Marking lines | 1-10 lines(in the marking area) |
Minimum line width | 0.1mm |
Resolution ratio | 0.1mm |
Minimum character | 0.15mm |
Repeatability accuracy | ±0.001mm |
Graphic format supported | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DWG,etc |
Features
1. Wide range of applications, a variety of substances (metal, glass, ceramics, plastics, leather, etc.) can be marked with permanent high-quality mark. For the clothing accessories, medicine packaging, wine packaging, building ceramics, beverage packaging, fabric cutting, rubber products, shell nameplate, craft gifts, electronic components, leather and other industries.
2. No effect on the surface of the workpiece, no mechanical deformation.
3. Easy operate, even the freshman can operate the machine smoothly.
4.10000 hours long life time. Low power consumption, saving energy.
5.One modular design ,easy maintenance. Compact size,save your valuable floor space.
Company
Shanghai Jiaoxi Laser Equipment Co.,Ltd is a professional manufacturer of Laser Marking Machine, Laser Cutting Machine and CNC ROUTER, Located in Shanghai
Baoshan industrial zone, it has a modern R & D center and manufacturing plant, since it was established, it has continued to train and recruit talents through cooperation with colleges and brought a large number of enterprising and leading elites of the industry.
Our company mainly products including laser marking machine, CO2 laser cutting machine and cnc router etc, widely used in metal and non-metal field, for example hardware, integrated circuit chips,
industrial bearings, variety of auto parts, hardware tools, wire and cable, mould, garment leather and craft gifts etc. in line with our advanced philosophy, excellent products, down to earth service, along with our strong R&D and production capacity, wide social cooperation as well as efforts of our every employee, some machines are exported to the Europe, America, Singapore, Vietnam, India and Bangladesh etc.
Manufacturer the world first-class laser equipments is the enternal pursuit of jiaoxi laser.
