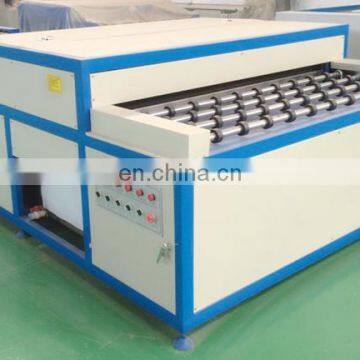

Glass washer,model:LB1600A
This automatic glass washing and drying machine adopts the most advanced IG processing technology,
famous brand low voltage apparatus, sensor and PLC control with touching screen human computer interface,
easy to operate, and can self diagnosis the equipment's fault with high degree of automation.Automatic recognition of coated glass and Low E glass,which ensure correct piece together.Adopts bearing without oil lubricant and other corrosion resistant materials. Three pairs of soft brushes to avoid damage to coating layer.Frequency conversion control for brushes rotatory speed.perfect washing performance for on/off line Low E glass.Automatic water compensation function for water tank.The drying part adopts circulation hot wind that ensure the dry effect and reduce noise. The glass washing part three pairs of soft brushes.All high quality stainless steels.There is a water tank behind the brushes,which can keep 0.2 to 0.3CBM water for washing glass.The water is cycle use,when you find the glass after cleaning is not very clean,you can replace with new water.Normally,if glass is not very dirty,one tank of water can be used for one month.One important thing,it must be pure water,salt water is not ok.
Model |
LB2500A |
LB2200A |
LB1800A |
LB1600A |
Voltage |
As required |
As required |
As required |
As required |
Total power |
25Kw |
18Kw |
11Kw |
9Kw |
|
Max.glass size (H*L) |
2500*3500mm |
2200*3000mm |
1800*2500mm |
1600*2200mm |
Min.glass size(L*H) |
400*200mm |
400*200mm |
400*200mm |
400*200mm |
Glass thickness |
3-25mm |
3-25mm |
3-25mm |
3-25mm |
Working speed |
Max.in washing section 12m/min |
Max.in washing section 12m/min |
Max.in washing section 12m/min |
Max.in washing section 12m/min |
|
Max.in accelerator 48m/min |
Max.in accelerator 48m/min |
Max.in accelerator 48m/min |
Max.in accelerator 48m/min |
|
|
Conveying speed after washing |
15-45m/min |
15-45m/min |
15-45m/min |
15-45m/min |
Soft brushes |
3pairs(LOW-E) |
3pairs(LOW-E) |
3pairs(LOW-E) |
3pairs(LOW-E) |
Dimension(L*W*H) |
12500*3800*3450mm |
12500*2800*3380mm |
10500*2200*2800mm |
9500*2000*2600mm |
Net weight(about) |
5200kg |
4100kg |
3000kg |
2300kg |
Other related machines for making insulating glass
Two components sealant coating machine
Butyl glue extruder machine
Aluminum spacer bar bending machine
