Heated roller press machine for window and door insulating glass BX1600

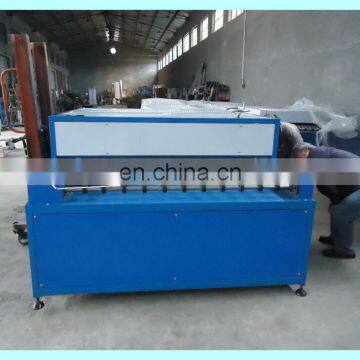

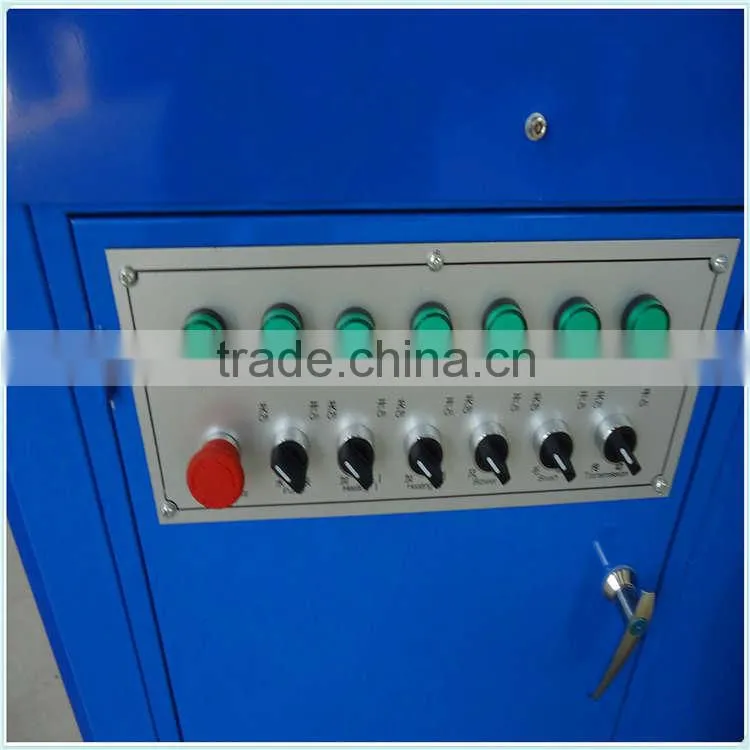

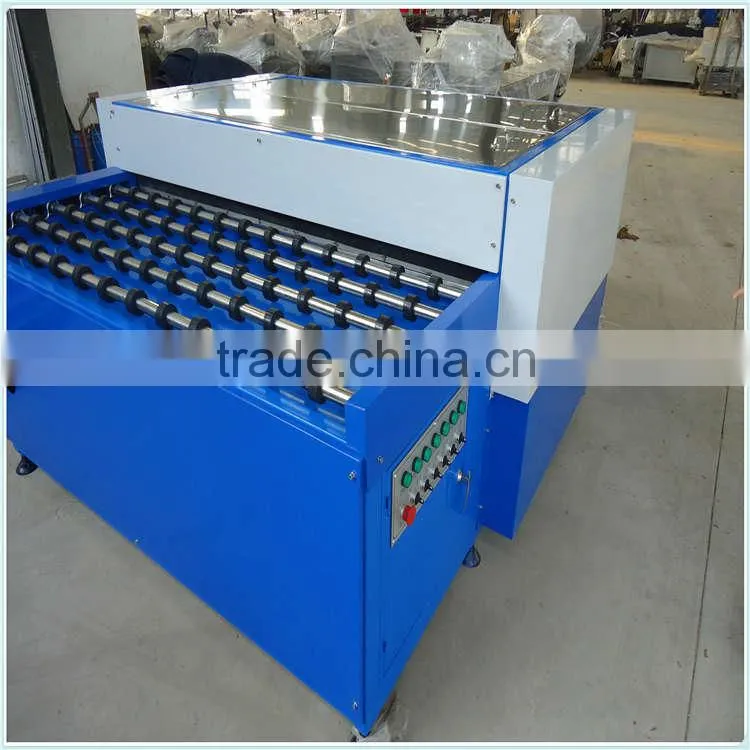

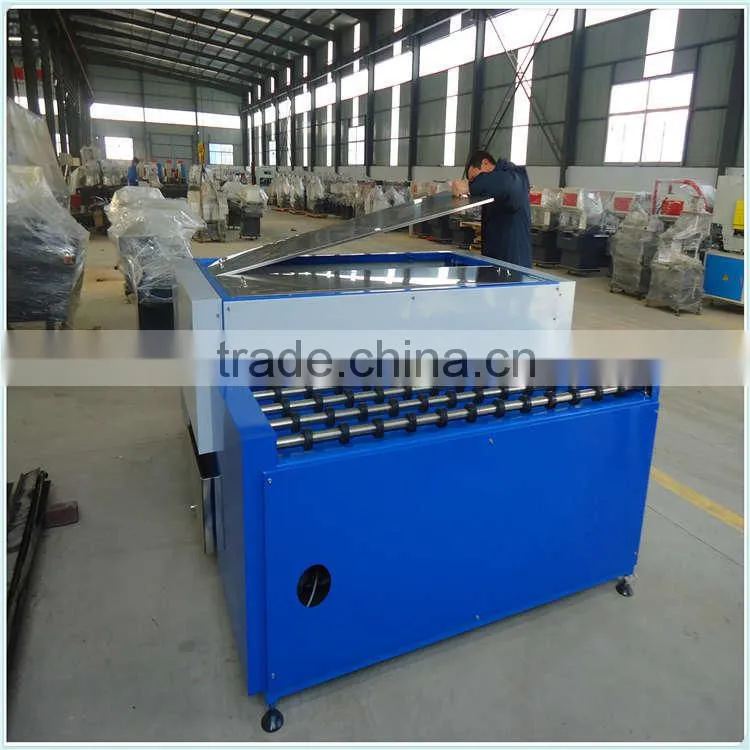

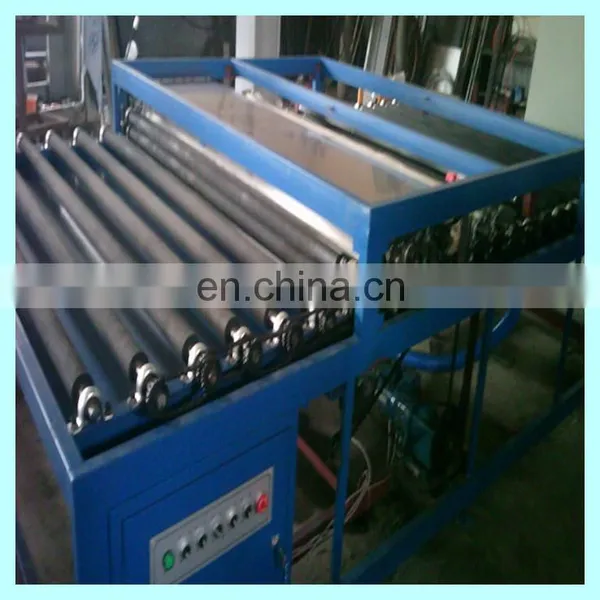

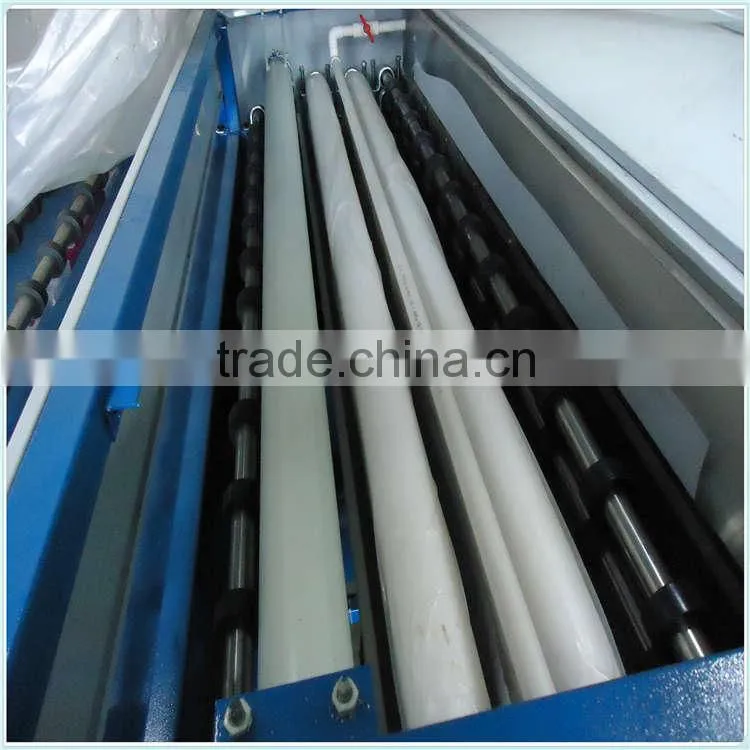

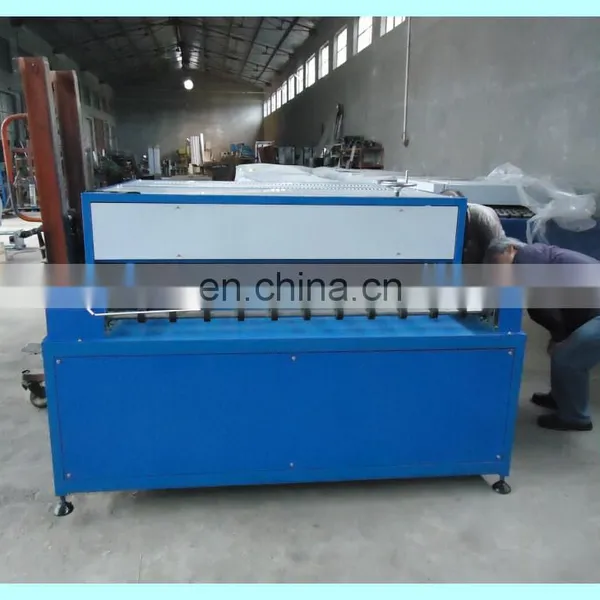

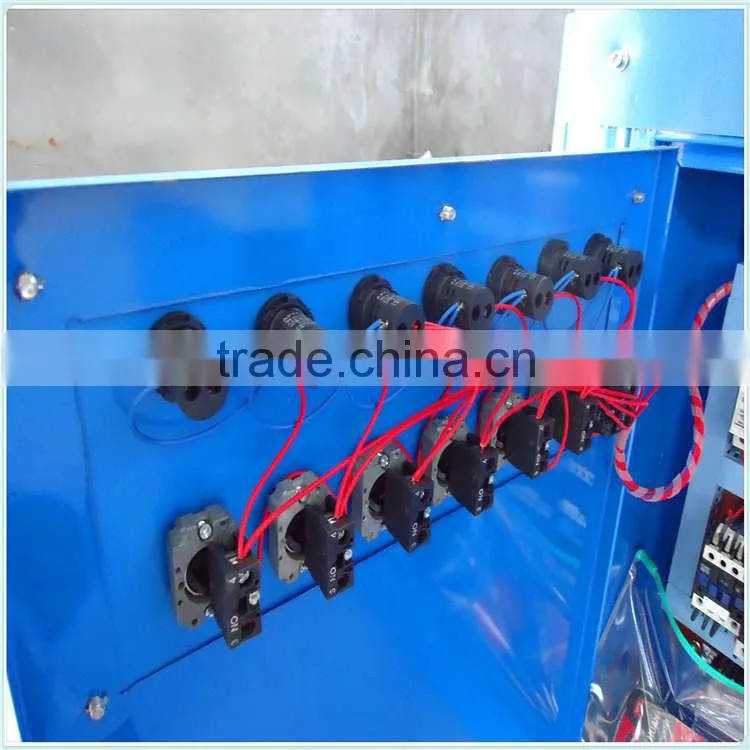

The Pictures of the machine
Description
The machine is the highly efficient glass washing machine and can be used to wash and dry glass before manufacture of double-glazing glass to ensure clean glass surface. The machine adopts horizontal construction, and feeding, washing, drying and discharge can be operated continuously. The automatic conveyor can realize performances and easy adaptability. It is an ideal economical and practical equipment for manufacturing double-glazing glass and the first choice equipment for glass processing industry.
Main technical parameters
Model number |
BX1600 |
Power supply |
380V/50Hz |
Total power |
7.8kw |
Clean out speed |
0.5 ~ 5 m/min |
Max. work speed |
5 m/min |
Max. glass size |
2400×1600mm |
Min. glass size |
450×450 mm |
Clean out glass thickness |
3--12mm |
Overall dimensions |
2850×2050×1100mm |
Total weight(about) |
1000kg |
