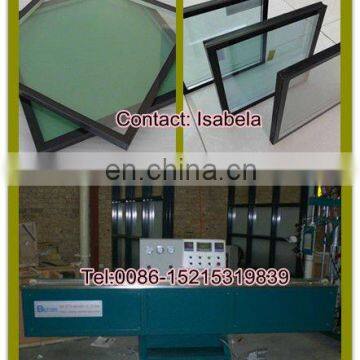

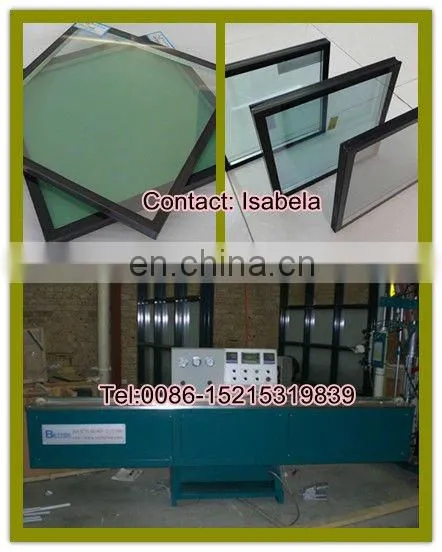

Aluminum Spacer Bar Butyl Extruder Machine/Double Glazed Glass Alu-spacer Butyl Extruder (JT01)
Butyl glue coating machine/Butyle sealant glue extruder machine
1.Product Description
1).The machine is the specialized equipment to apply the hot molten butyl sealant to both sides of the aluminum spacing frame uniformly.
2).The only thing the operator needs to do is to hold the aluminum spacing frame and all the other operations (rolling. transfer. etc.)can be completed automatically as programmed, and hence convenient operation, stable and reliable operation, good effects of sealant extrusion and high production efficiency, it is indispensable to dual seal double-glazing glass manufacturing.
3).Butyl glue is the double glass/insulating glass first layer sealant glue.
2.Technical parameters
Model number |
JT01 |
Power supply |
380V 50Hz |
Total power |
5kw |
Transmit speed |
7 m/min |
Operation air pressure |
0.5~0.8Mpa |
Squeeze pressure |
12~15Mpa |
Adjustable range |
4-20mm |
Overall dimensions |
3300×800×1400mm |
Total weight(about) |
850kg |
3. Butyl glue coating the alu-spacer bar
Note:use the Butyl glue extruder machine to coat the alu-spacer bar, it is the insulating glass first layer glue coating. after be coated, the alu-spacer will be put between the double glass, the double glass will be glued together.
4.Kindly note
If your local weather is cold and dry, about the glass glue coating, you need two glues, you can consider to use the butyl glue+two component glue(Silicon sealant glue) or use the butyl glue +hot melt glue, any combination method is ok, the butyl glue is the first layer glue, the two component glue or the hot melt glue as the second layer glue.
If your local weather is too hot or too humid, you'd better not choose the butyl glue +hot melt glue, you'd better choose the butyl glue+two component glue.
5.Insulating glass/double glass/hollow glass good advantages
1).sound insulation, noise reduction
2).keep warm
3).dust prevention
4).reduce thermal radiation
6. Related insulating glass processing flow chart
Besides you buy the basic vertical production line, you also need to add some accesary machines, such as Butyl extruder machine, two component coating machine, alu-spacer cutting saw, glass adge polishing machine etc.
About the full insulating glass production steps, here I can give you a brief introduction for your reference:
If you want to save some cost about the vertical production line, you can consider to by these basic machines is enough:
1).insulating glass/double glass/hollow glass production line, model: LB1800P
2). Butyl glue extruder machine, model : JT01
3).Two component glue coating machine, model: ST01
4).Rotary coating machine, model: SZT01 (this machine together work with the two component glue coating machine)
5).Glass edge polishing machine, model: SM95
7.Insulating glass/double glass product
8.Contact informtion
9.Kindly note
You may need to buy some small materials for the production,if you need, you can contact me,such as Desiccant, Rubber corner jointer, Alu-spacer bar...
1).Desiccant
2).Rubber corner jointer
3.Alu-spacer bar
