Butyl extruder machine,Double glass fabrication plant(JT02)
USD $3,400 - $3,500
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
Butyl extruder machine,Double glazing production line(JT02)
-
Two-compent coating machine ST01 Insulating Glass frame plant
-
Two-compent coating machine ST01 Insulating Glass making plant
-
Vacuum glass argon gas filling machine/Vacuum glass inactive gas filler machine/Vacuum glass making machine (ZCJ02)
-
Insulating glass processing machine/Insulating glass inert gas filling machine/Insulating glass air filling machine (ZCJ02)
-
Insulating Glass Machine/Butyl Coating Machine for Insulating Glass / Butyl Extruder Machine for Aluminum Spacer Bar (JT01)
Product Details
| Brand Name | Better | Place of Origin | Shandong, China | |
| Model Number | JT02 |
Product Description
Butyl extruder machine,Double glass fabrication plant(JT02)
1.Product introduction
1).The machine is the specialized equipment to apply the hot molten butyl sealant to both sides of the aluminum spacing frame uniformly.
2). The only thing the operator needs to do is to hold the aluminum spacing frame and all the other operations (rolling. transfer. etc.)can be completed automatically as programmed, and hence convenient operation, stable and reliable operation, good effects of sealant extrusion and high production efficiency.
3).The machine adopts man-machine interface and it is indispensable to dual seal double-glazing glass manufacturing.
2.Technical parameters
Model number | JT02 |
Power supply | 380V 50Hz |
Total power | 5kw |
Transmit speed | 7 m/min |
Operation air pressure | 0.5~0.8Mpa |
Squeeze pressure | 12~15Mpa |
Adjustable range | 4-20mm |
Overall dimensions | 3300×800×1400mm |
Total weight(about) | 850kg |

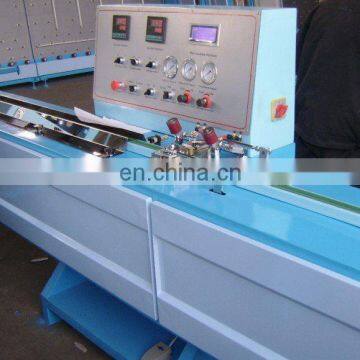

3.This model JT02 machine photo
4.This machine part
5. Insulating glass production line
