Lock-hole groove processing machine/ milling machine/ window and door making machine
- 100 Set / Sets per Month
- QINGDAO
- T/T Credit Card
- Aluminum window and door Double-head precision Cutting Saw
- Aluminum profile automatic Cutting Saw
- (0086 15215319839) 2015 hot sale CE Aluminum windows machine Aluminum doors machine Aluminum window punch machine
- (0086 15215319839) 2015 hot sale CE Aluminum window process machine Hydraulic Aluminum door machine
- Aluminum Door and Window Double-head Cutting Saw
- (0086 15215319839) Model LY-30 Punching machine for Aluminum window door, Aluminum window punch machine
Product Details
Brand Name: | BETTER | Model Number: | SZJ01 |
Product Description
Lock-hole groove processing machine/ milling machine/ window and door making machine
Lock Hole milling Machine for making PVC windows / PVC and aluminum door and window Lock hole Milling Machine (SZJ01)
Lock-hole Groove Processing Machine
Lock hole milling machinery / Lock slot drilling machine / PVC window door machinery / UPVC window processing machine / Plastic door window milling machine / Vinyl door window production line machine / Lock hole drilling machinery / Plastic door window fabrication machine / UPVC window production machinery / Plastic door window making machine / Vinyl profile lock hole drilling and copy-router milling machine / Lock hole copy-routing machine
1. Product Description
1).It is a special machine used for processing transmission device installing holes and grooves for PVC/UPVC/plastic/Vinyl and aluminum doors and windows.
2).It consists of long horizontal holes, and the copy routing of vertical long holes.
3).The belt is accelerated to achieve the high milling speed (12000 r/min).
4).With the pneumatic driving system,it can process the water slots. Both vertical and horizontal processing is available with only one clamping. One time clamping can achieve 2 working procedures which ensures the precise position between holes and grooves efficiently. 1 cutter is for the lock hole milling, 3 cutters are for the copy-router milling. This machine can also make water slot milling.
5).The lock hole milling machine has two funtions: copy-routing, lock hole milling, sometimes, you donot need to buy the copy-routing machine, just buy this lock hole milling machine is enough. This machine can also make Aluminum window profile.
6).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
2.Technical parameters
Model number | SZJ01 |
Working air pressure | 0.4~0.6Mpa |
Air consumption | 30L/min |
Power supply | 380V 50Hz |
Input power | 2.2kw (0.75kw,1.1kw) |
Copy-routing range | 300×100mm |
Outside dimension | 1000×1130×1500mm |
weight(about) | 250kg |

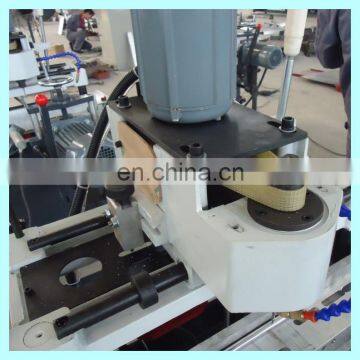

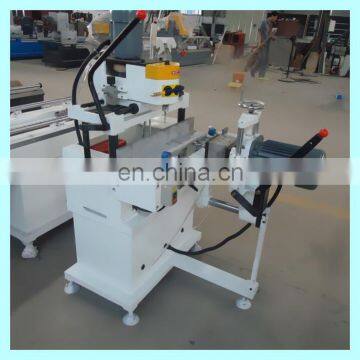

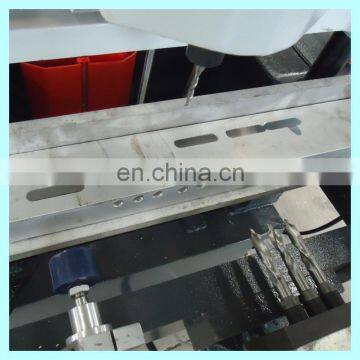

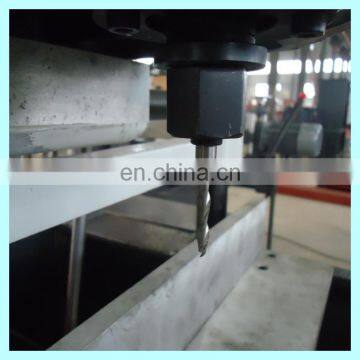

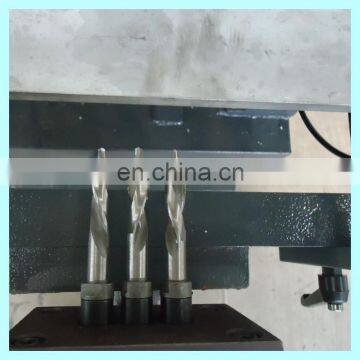

3.Detailed machine pictures
4.Certification
5.our other end milling machine model
LXD-250
Single-head copy-routing Milling Machine LSX-100
6.Processing end milling sample
7.Our factory picture
8.Contact information
Contact Person: Jane hao
Jinan Better Machinery Co.,Ltd
Address: 1-1-1004 HONGKONGGUOJI NO.153 WUYINGSHAN ZHONGLU,JINAN, China
Tel: 0086-531-84895585
Mobile No: 0086- 13335142121
Whats app:0086 13335142121
Skype:deqin.hao
9.Aftersale service
1). We will provide all spare parts needed for maintenance of the equipments.
2). During the period of guarantee, within TWELVE(12) months, the seller we will be responsible for the damage due to the defects in designing and manufacturing.
3).If you need installation, please inform us, we can send engineer to your factory to install and test machines for you.
WHY YOU CHOOES US Question AND Answer (If you see same 100% description in other company website on alibaba, they copy us, please kindly check and compare.)
1.Question:Are your manufacture?
Answer:we are manufacture of the PVC window door machine, Aluminum window door machines, insulating glass machines.
2.Question:What’s the costomer service ?
Answer:
1).reply within 12 hour
2).deliver max. days within 15 days (If some machines, such as the lock hole milling machine,end milling machine,etc. this is small model, we have in store, and can delivery for you soon within 3-5 days after get your deposit)
3).one to one service
4).24 hours for after -sale serive
5).more than 15 years experience in this field
6).fluent english ,communication barrier free
3.Question:What’s the guarantee ?
Answer:
1).Our guarantee for 2 years.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).two years quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
4.Question:if our price is higher than another company or factories ?
Answer:
plaese check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the world famous brand parts to install to machines inner, so that can sure you can use the machines very long long years.
belive you will chooes the same value of the machine, not cheaper equipement
5.Question:How long is the delivery time ?
Answer:
For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
6.Question:How's the payment ?
Answer:
Telegraphic Transfer(T/T). or L/C. (If you want by west union, it is also ok.)
