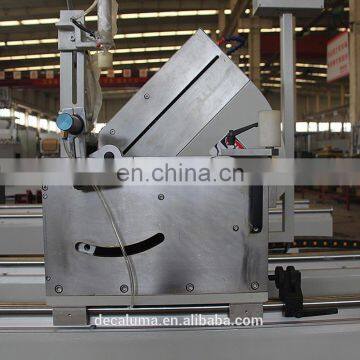

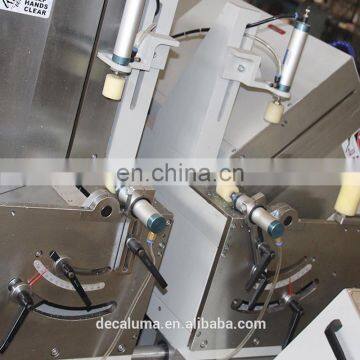

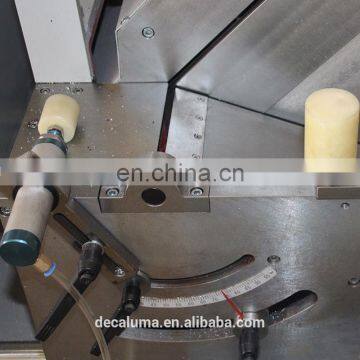

CNC Integrated Aluminum Window Cutting Machine
1. Connected with computer, downloaded software to create processing digital, finished the CAD/CAPP/CAM.

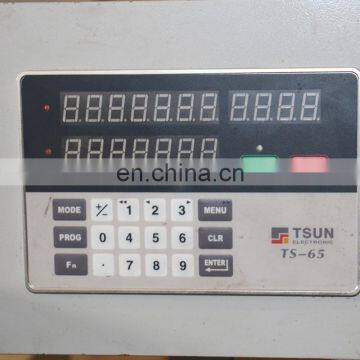

2. Integrated CNC Machine Type, can download software, generate processing data and program, automatically
finish processing process.
3. Whole factory can achieve Computer Integrated Manufacturing System(CIMS), that is achieve Computer Assistant
Design/Aided Process/Computer Aided Manufacturing(CAD/CAPP/CAM)
4. Imported Motor Directly Connecting saw blade, saw blade moving adopts mechanical rod swinging way.
5. Hydraulic damping cylinder achieve feeding steadily speed regulation, saw blade stable cutting
6. High precision imported cutting saw blade, smooth cutting surface.
Power supply | Made to order |
Motor power | 8.9Kw |
Air pressure | 0.5~0.8MPa |
Air consumption | 0.2m³/min |
Saw blade specification | φ500mm×4.4mm×φ30mm Z=120 |
Motor rotation speed | 2800r/min |
Running speed | 0~18m/min |
Length error | ±0.1mm |
Cutting angle | 22.5°~135°(double head independent adjustment ) |
Cutting length | 0~5000mm( 90°) |
Cutting width | 160mm(90°,MAX) |
Cutting height | 350mm(90°,MAX) |
Feeding speed Stepless timing | 0~3m/min |
Cutting profile surface plane | ≤0.10mm |
Cutting angle tolerance | Ra12.5 μm |
Overall dimension | 6800mm(L)*1500mm(W)*2050mm(H) |
Weight | 2500Kg |
JINAN DEGA MACHINE CO.,LTD.(DECALUMA) was founded in 2006, offering products that include a wide range of machine for manufacturing aluminum window door & curtain wall, single and double-head sawing machines, machines and equipment for working and assembling aluminium and PVC window frames. We started as a small operation, but now we are the leading premium supplier in the segment of profile & curtain wall machining for a vast array of different requirements and materials. DECALUMA is a customer-oriented company,we are always just around the corner from you to help you choose a good machine, such as: cnc machining centre, aluminum cutting machine, aluminum hole punching machine, corner key cutting saw, aluminum profile drilling machine, corner crimping machine, end milling machine, aluminum profile bending machine, copy router and thermal break machine and so on.
1. What you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
2. what services can provide in your company ?
1) one year guarantee
2) free adjustment
3) free training to operation and maintenance workers.
4) free industrial information
5) free investment analysis for windows, doors and curtain wall project.
6) free layout design for windows,doors and curtain wall production lines.
7) provide follow-up service, regular maintenance and lifetime service for our machines sold.
8) provide technical support including pressure design and caculation for window and curtain wall companies.
9) provide quick supply of spare parts for window and curtain wall companies.
