Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Window & Door Making Machine > Digital Display Door and Window Saw Aluminum Yilmaz

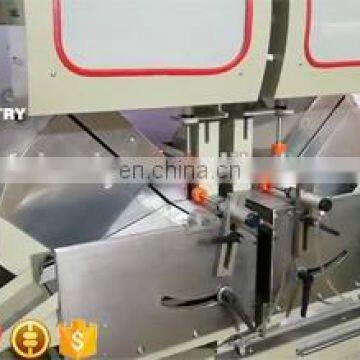

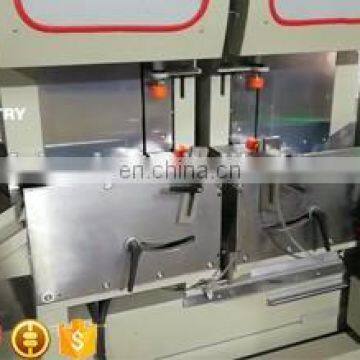

Digital Display Door and Window Saw Aluminum Yilmaz
US$ 5,500 - 6,200
MOQ: 1 set
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Head Aluminum Cutting Machine for ProfilesUS$ 2,500 - 3,100MOQ: 1 -
Single Head Multifunction Double Blade Table Saw for Window and Door EquipmentUS$ 850 - 950MOQ: 1
-
Chinese Manufacturer for Processing Window and Door Aluminum Frame Cutting MachineUS$ 14,800 - 16,000MOQ: 1
-
Compound Mitre Saw Aluminum Window Machine Double Head Miter SawUS$ 5,500 - 6,200MOQ: 1
-
Aluminum Cutting Saw Blade Upvc Window and Door Machine PriceUS$ 5,800 - 6,200MOQ: 1
Brand Name
FEIDA
digital display door and window saw aluminum yilmaz
Product Application saw aluminum yilmaz
- Applying to sawing aluminum/PVC profiles at angles 45º ~ 90º.
- Slow-straight-out going mode, connected parallelly with hydro-pneumatic damping system, ensuring the blade
feeding stability at adjustable stepless speed.
- Clamping from two directions.
- 45º,67.5º,90º angle shifting.
- It is with digital display device.
- Hard alloy blade, automatic cooling spay.
- Safety protecting device for securing operators.
Main Specification saw aluminum yilmaz
1) Cutting length: 330-4700 mm
2) Profiles adaptable: 140(145)×270 (260)mm (width x height)
3) Blade size: Φ500×30 mm
4) Machine power: 2 x 2.2 Kw
5) Rotational speed of motor: 2800r/min.
6) Power supply: 380V 50Hz 3 phases 4 wires
7) Pneumatic working pressure: 0.5 – 0.8 MPa
8) Air consumption: 0.2 cubic m/min.
9) Machine weight: 1500 Kg
10) Dimensions: 5500x1500x1600mm
Cutting Precision saw aluminum yilmaz
1) Repetition on length: ± 0.2mm
2) Repetition on angle: ± 5’
3) Verticality of cutting surface: 0.1mm (100x100mm section)
4) Planeness of cutting surface: 0.1mm (100x100mm section)
Certifications
Product Details
Related Products
Our Services
Company Information
Packaging & Shipping
| Size | 6000(L) × 1700 (W) × 1750(H) |
| Weight | 1500 KGS |
| Packing details | Aluminum foil vacuumed / saw aluminum yilmaz |
