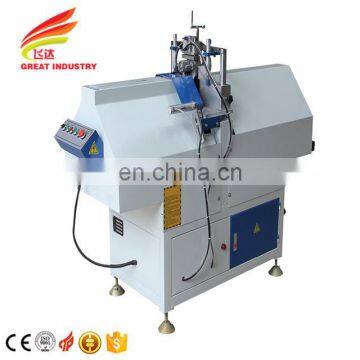

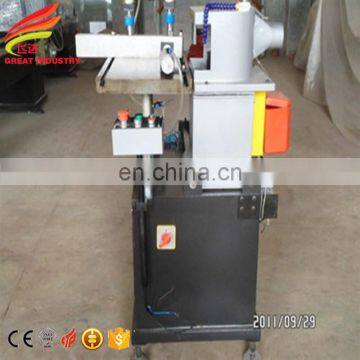

Chinese famous best sell aluminum window Glazing Bead Cutting Saw for Aluminum
Product Application

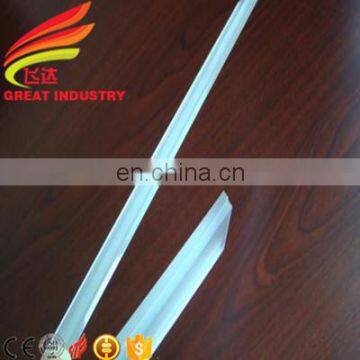

--aluminium glazing bead cutting saw at 30°-90°.
--low fault rate, maintain & repair easily.
--important equipment for window door machine.

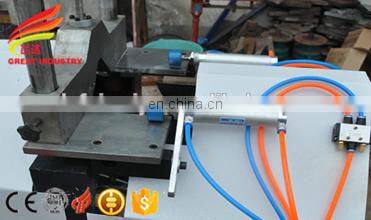

--Clamping devices keep fixing profiles to protect operator and machine when power's off suddenly.
--Emergency stop is convenient to operate at bottom right corner.

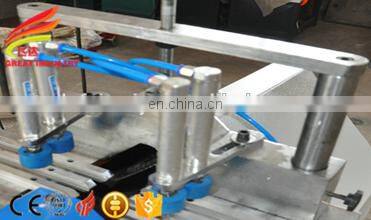

--With backup plate and clamping device to fix profiles.
Main Specification
1) Enter the power 380V 50Hz
2) input power 1.5Kw
3) Rotary speed 2800rpm/min
4) Air pressure 0.4-0.6MPa
5) Air consumption 100L/min
6) Cutting angle 30°-90°
7) Cutting length 300-1700mm
8) Cutting height 0-60mm
9) Cutting width 0-120mm
10) Saw blade dimension Φ300xΦ30mm
11) Overall dimension 500x820x1020mm
12) Weight 240 Kg
Cutting Precision
1) Repetition on length: ± 0.2mm
2) Repetition on angle: ± 5'
3) Verticality of cutting surface: 0.1mm (100x100mm section)
4) Planeness of cutting surface: 0.1mm (100x100mm section)
CRIMPING PROFILES

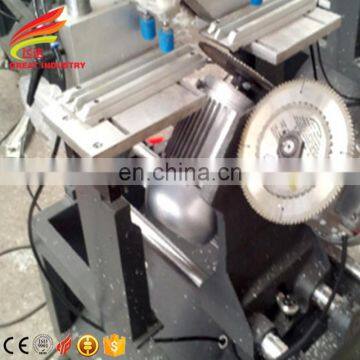

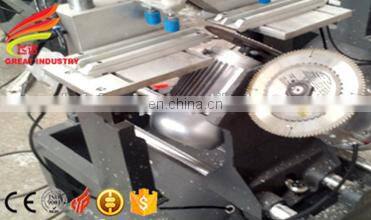

SWING BLADE
PRECISION BOARD
PERFECT CUTTING
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
