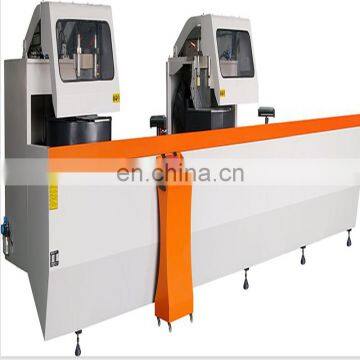

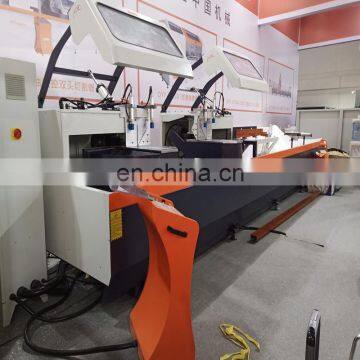

Product Application yilmaz cutting machine
-It is used for all kinds of aluminum compound corner cutting processing
-Using digital PLC multi-axis control, complete 5-axis control;
-The use of Bottom-up cutting method,it can be used for all cutting outside the measurement method;
-Sawing angle can be horizontal rotation, but also vertical rotation, to complete the complex angle of cutting;

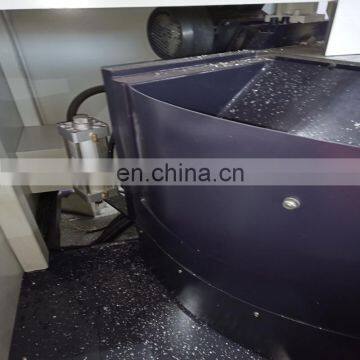

-Hard alloy (carbide) blade, and automatic cooling spray device.
-Adopt safety hood to protect the operator from injury while processing
Main Specification yilmaz cutting machine
1) Cutting length 350-6300mm
2) When Cutting range90° 400×115mm(Width×Height)Max.240×180mm(Width×Height)
3) Saw blade diameter Φ550×4.4×30mm
4) Spindle motor 4KW×2
5) Spindle speed 2800rmp/min
6) Horizontal angle 45°-90°-135°
7) Vertical angle 90°-135°
8) Air working pressure 0.5-0.8mpa
9) Voltage 380V,50HZ
10) Weight 1500kg
11) Air consumption 0.2m3/min
12) Dimensions 9000×1800×1600mm(With auxiliary support frame)
Cutting Precision yilmaz cutting machine
1) Repetition on length: ± 0.2mm
2) Repetition on angle: ± 5’
3) Verticality of cutting surface: 0.1mm (100x100mm section)
4) Planeness of cutting surface: 0.1mm (100x100mm section)
| Size | 9000(L) × 1800 (W) × 1600(H) |
| Weight | 1500 KGS |
| Packing details | Aluminum foil vacuumed /yilmaz cutting machine |
