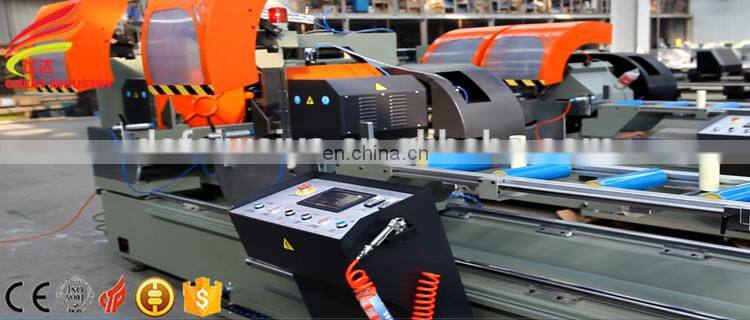

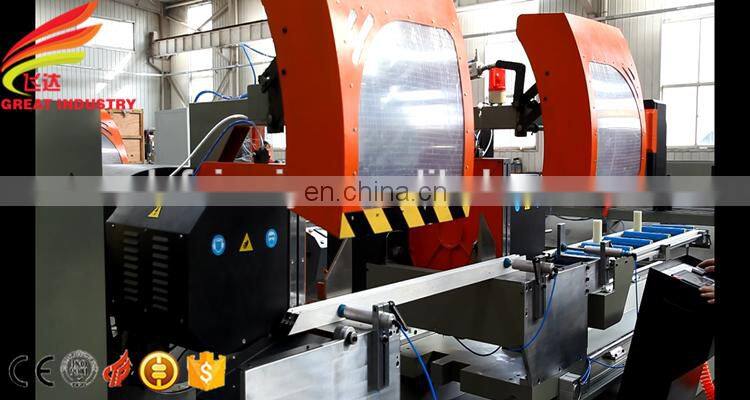

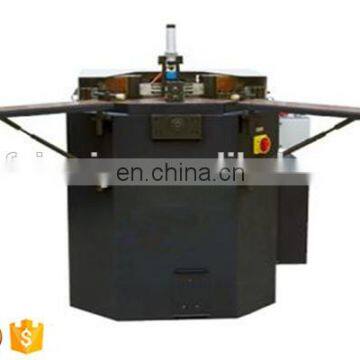

High precision double head cnc cutting 22.5~135degree circular saw machine for aluminum profiles window and door

High precision double head cnc cutting 22.5~135degree circular saw machine for aluminum profiles window and door

Product Application circular saw machine

- Applying to sawing sorts of aluminum profiles for doors/windows and curtain walls by cutting at angles 22.5º, 45º and 90º.
- High quality servo motors are adopted. LCD touching display screen for operating control, through which the cutting lengths and angles are

  inputted. The automatic positioning for profile’s length is available.
- Saw-straight-outgoing mode, connected parallelly with hydro-pneumatic control system, so as to ensure the feeding stability of the saw blades

  at stepless speed.
- The two sets of clamping cylinders clamp the profiles from two different directions horizontally and vertically, that makes the clamps more

  reliable.
- Hard alloy blade, automatic cooling spray device.
- Attached holding rack makes clamping easier.
- Automatic feeding and cutting.

Main Specification circular saw machine

1) Cutting length: 370mm - 4600mm
2) Profiles adaptable: 140(145)×270 (260)mm (width x height)
3) Blade size: Ф500 x 4 x 30
4) Power of main motors: 2.2kw x 2
5) Rotational speed of spindle: 2800 rpm
6) Pneumatic working pressure: 0.5 – 0.8 MPa
7) Air consumption: 0.2 cubic m/min.
8) Dimensions: 6000 x 1750 x 1700mm
9) Weight: 1500 kg

Cutting Precision circular saw machine
1) Repetition on length: ± 0.1mm
2) Repetition on angle: ± 5’
3) Verticality of cutting surface: 0.1mm (100x100mm section)
4) Planeness of cutting surface: 0.1mm (100x100mm section)
5) Roughness of cutting surface: Ra12.5 µm

45° CUTTING

                   90° CUTTING

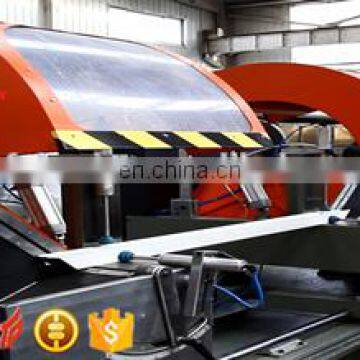

TWO SETS OF

CYLINDERS TO CLAMP

PROFILES

          PERFECT CUTTING
