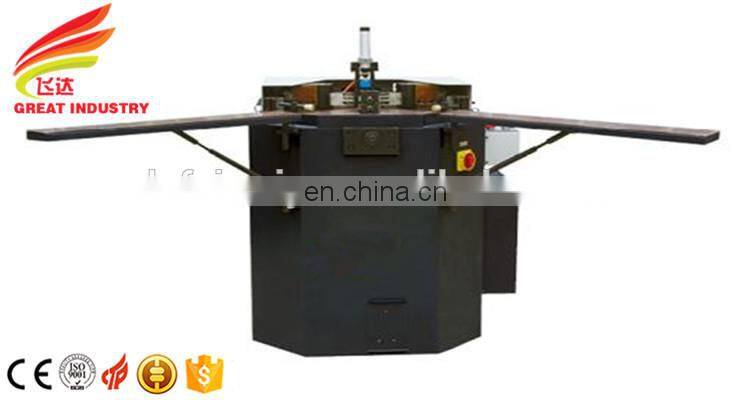

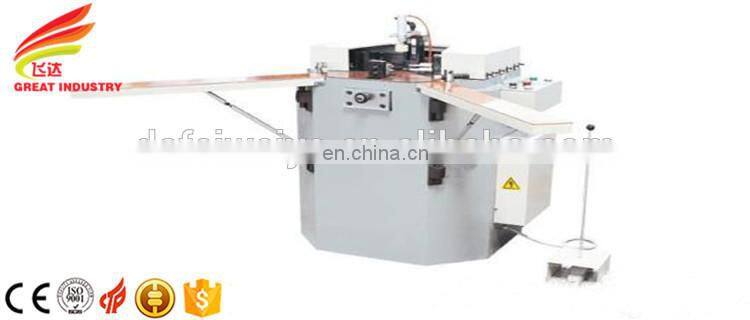

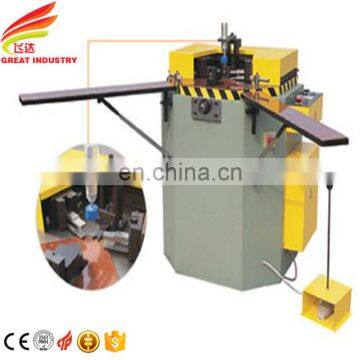

Crimping aluminum window frame Machine JM2-DW600
Product Application Crimping aluminum Machine
--Applying to corner crimping of aluminum window profiles.
--Automatic positioning, clamping and crimping with high efficiency.
--Equipped with manifold cutters and clamps, suitable for varied profiles.
--Hydro-pneumatic boosting system, power deedless, energy-saving, low fault rate, low noise and good performing reliability.
--Crimping strength adjustable anytime in accordance with difference of profiles, witch ensures profiles against getting out of shape.
Main Specification Crimping aluminum Machine
1) Clamping strength: 2 x 5 t – 2 x 10 t
2) Pressure of oiling system: 0 – 40 MPa
3) Crimping height: 0 – 120 mm
4) Crimping head in up-and-down range: 0 – 60 mm
5) Max. travel of crimping head: 0 – 30 mm
6) Adjusting range of supporting cylinder: 0 – 40 mm
7) Supporting cylinder’s travel: 0 – 35 mm
8) Pneumatic working pressure: 0.5 – 1.0 MPa
9) Air consumption: 0.2 cubic m/min.
10) Dimensions: 74 x 800 x 1000 mm
11) Weight: 300 kg
Crimping Precision Crimping aluminum Machine
1) Crimped corner seam: ≤0.2 mm
2) Tolerance of height: ≤0.1 mm
3) Tolerance of angle: ± 5’
STRONG STRUCTURES
CRIMPING WORKTABLE
CRIMPING NOW
PERFECT CRIMPING
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
