used pvc window manufacturing machine door lock mortise tool

used pvc window manufacturing machine door lock mortise tool

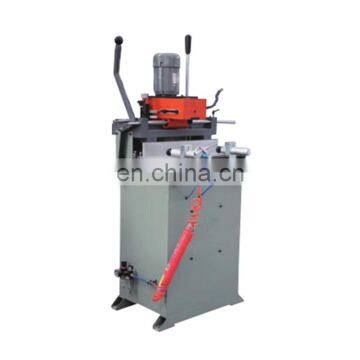

Product Application 3 spindle copy router

--For copying sorts of figures and holes on aluminum profiles with processable wall thickness 1.5~3 mm.
--The copying templates and auxiliary ruler are adopted as two mechanical ways of copying performance.
--Automatic clamping and spray-cooling.
--Professional milling cutters are used for better performance.

Main Specification 3 spindle copy router

1) Copying range (width x length): 90x260 mm
2) Cutter diameter : φ5mm, φ8mm
3) Rotational speed of cutter: 11200 r/min.
4) Machine power: 1.1 KW
5) Power supply: 380V, 50Hz, 3 phases, 4 wires
6) Pneumatic working pressure: 0.4 – 0.8 MPa
7) Air consumption: 0.1 m³ /min
8) Outer dimensions: 800x800x1500mm
9) Weight: 150 Kg

End Milling Precision 3 spindle copy router
1) Smooth finish of milling surface: Ra 12.5 µm
2) Copying tolerance in dimension: ± 0.1 mm
3) Copying tolerance on position: ± 0.1 mm

GOOD TOOLS

          GOOD STRUCTURE

GOOD MOTOR

         PERFECT WORKING

Q: If I make Aluminum window and door, how many basic machines do i need?
A: Double head cutting saw ,Lock hole copy milling machine,End milling machine,
    Automatic Corner connector automatic cutting saw,Single head Corner Crimping machine.

Q: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness, and working area needed.
    we will suggest the most suitable machine and professional solution.

Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare.
     We will send you the English version user manual and install video which shows how to
     assamble and use the machine clearly, almost all the customers can operate the machine
     easily.
     Don't worry about this. FEIDA will always be here to help!

Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual.
    But in case you have any problem, our professional after-service team will provide you any
    support you need any time!
B: We can send you free components to you if your machines are in guarantee time.
C: We can send our engineers to repair your machines.

Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other
    different machines.

Q: When can we arrange shipment?
A: We usually arrange shipment in 15 days after getting deposit, but customized machines should be
     more than 25 days.

Q: What services can provide in your company?
A: Two years guarantee
B: Free adjustment
C: Free training to operation and maintenance workers.
D: Free industrial information
E: Free investment analysis for windows, doors and curtain wall project.
F: Free layout design for windows,doors and curtain wall production lines.
G: Provide follow-up service, regular maintenance and lifetime service for our machines sold.
H: Provide technical support including pressure design and caculation for window and curtain
     wall companies.
I: Provide quick supply of spare parts for window and curtain wall companies.
