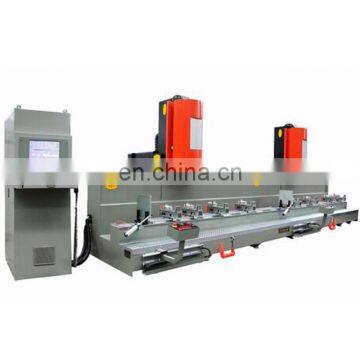

Help Center6-position Changing Tool Automatically Small Aluminum Extrusion Machine Customized Holes for Curtain Wall Profiles
Related Products
-
Aluminum Installation Holes Window & Door Rubber Sealing Strips Making Machine for Drilling andUS$ 10,688 - 30,788MOQ: 1 Piece -
Aluminum Installation Holes Cabinet Door Making Machine for Drilling Window andUS$ 400 - 692MOQ: 1 Piece
-
Aluminum Installation Holes Garage Roller Shutter Door Making Machine for Drilling Window andUS$ 400 - 692MOQ: 1 Piece
-
Human-machine Friendly Interface Copy Router Machine for Aluminum Cnc Drilling/ Tapping/milling Aluminum ProfilesUS$ 45,000 - 69,500MOQ: 1
-
Human-machine Friendly Interface Cnc Milling Machine With Siemens and Fanuc System Drilling/ Tapping/milling Aluminum ProfilesUS$ 400 - 692MOQ: 1 Piece
Product Application 3 axis cnc machining center
--Applicable to processing all kinds of installation holes, lock holes, shaped holes and other customized holes; and water outlet slots, end milling and tapping as well for various kinds of Aluminum/Steel profiles for doors/windows and curtain walls.
--The working head can apply drilling and milling on any position of profile. All processing can be done with dual working
stations at one time clamping.
--High quality computer-aided numerical control system(CNC) with good operating interface, graphic programming
interface and graphic modeling interface through which you can realize that what you see on the screen is just what you
want in need.
--The nucleus of the control system adopts original American-made multi-shaft controller, so as to ensure the high
precision and reliability.

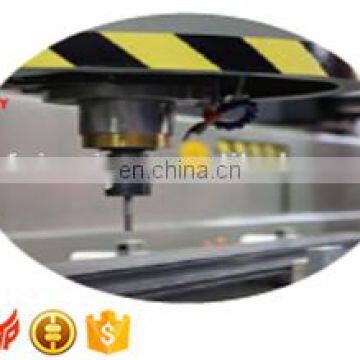

--High power and high speed water cooling spindle is used on working head.
--With high quality AC servo motors, high precision leading screws, linear guide ways and bearings, all machining
precisions are highly ensured.
--3 axes with high speed principal spindle.
--With 6-position disal tool magazine. Changing tools automatically.

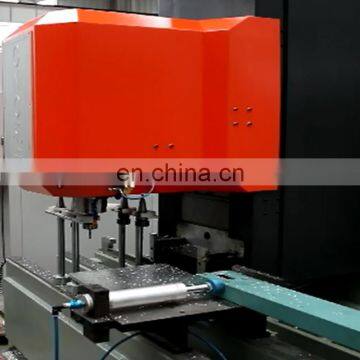

--The safety cabin used on the heads for protectiveness.
--Double positioning and clamping system is adopted.
--The cooling spray system for cooling the cutters.
Main Specification 3 axis cnc machining center
1) Horizontal stroke (x axis) 6000 mm
2) Vertical stroke (y axis) 350 mm
3) Range of depth (z axis) 280, 380 mm
4) Running speed of X axis 60 m/min
5) Running speed of Y axis 12 m/min
6) Running speed of Z axis 12 m/min
7) Tool magazine BT30, 6 service positions
8) Rotational speed of spindle 18000 rpm
Torque of spindle 4 N.M
9) Power supply 380V 50HZ
10) Main motor power 7.5 KW
11) Maximum diameter of grip head for tools Ø20
12) Pneumatic working pressure 0.6~0.8 Mpa
13) Air consumption 0.2 m3/min.
14) Outer dimensions 7500×2100×2200 mm
15) Weight 5500 Kg
Cutting Precision 3 axis cnc machining center
1) Allowance of positioning repetition ±0.05 mm
2) Positioning allowance ±0.1 mm
3) Verticality of machining surface 0.1 mm/100mm
4) Roundness 0.1 mm
5) Roughness of machining surface Ra12.5 um
| Size | 7500(L) × 1920 (W) × 2200(H) |
| Weight | 5000 KGS |
| Packing details | Aluminum foil vacuumed /3 axis cnc machining center |
